ROLL RANGE INTO POSITION

WARNING

The Anti-Tip Bracket must be

properly installed to prevent tipping of the range.
Failure to do so can cause serious damage or injury.

Ŷ&KHFNWREHVXUHWKHDSSOLDQFHUXQQHUVDUH

beneath the wheels.

Ŷ7KHUDQJHLVVKLSSHGZLWKWKHZKHHOVLQWKHGRZQ

position. Carefully roll the range into position, being
careful not to entangle or pinch the power cord and
flexible gas tubing.

Ŷ5HPRYHWKHUXQQHUVEHQHDWKWKHUDQJH

Be sure Anti-Tip
Bracket is engaged
with the brace on
the range.

Installation

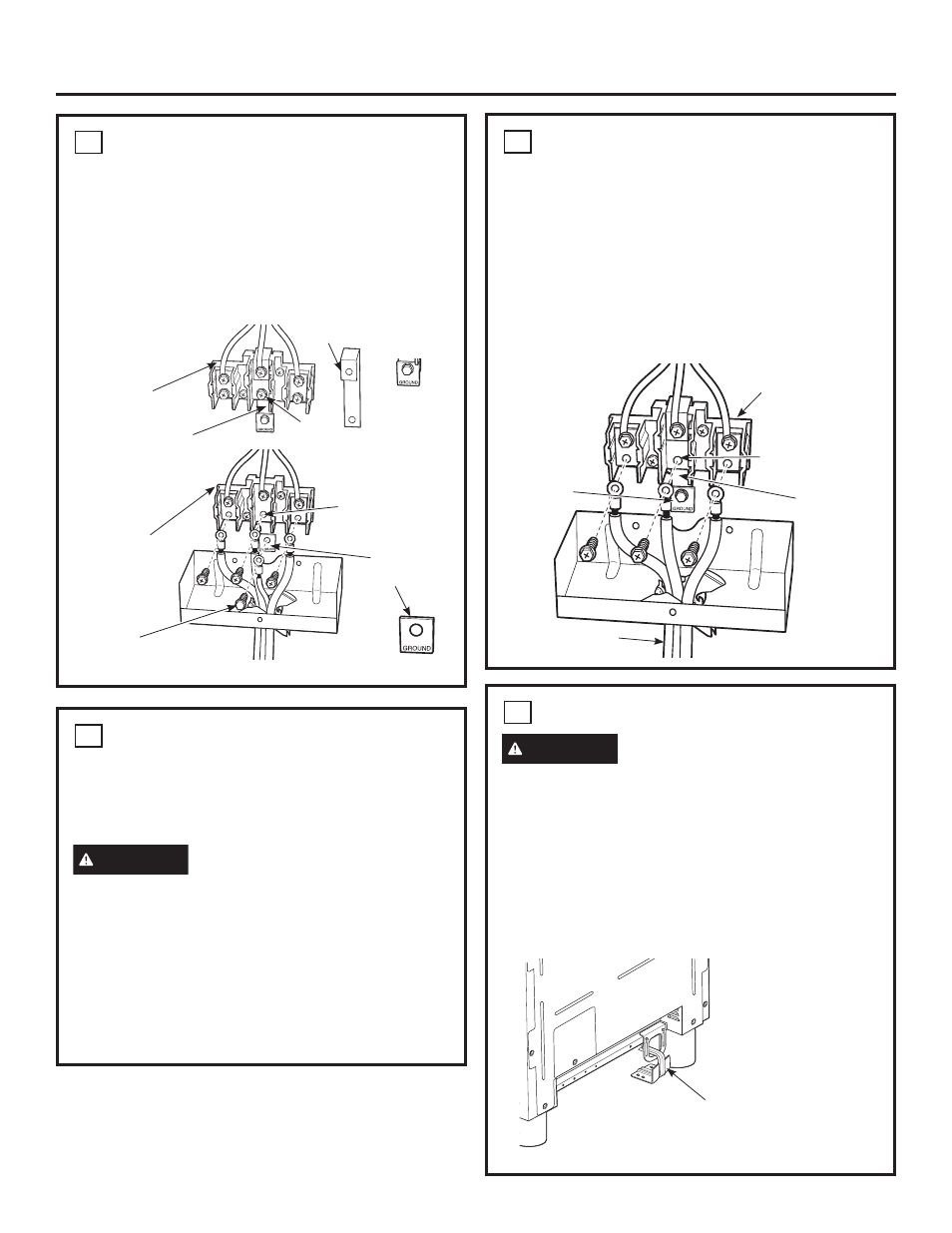

5

4-WIRE POWER CORD

INSTALLATION (Cont.)

Ŷ

Insert the 3 terminal screws (removed earlier)
through each power cord terminal ring and into the
lower terminals of the terminal block. Be certain that
the center wire (white/neutral) is connected to the
center lower position of the terminal block. Tighten
screws securely into the terminal block.

6

3-WIRE POWER CORD

INSTALLATION

NOTE:

A 4-wire cord is connected to the range at the

factory. Use the following steps to change the range
to a 3-wire cord (not included with the new range).

WARNING

The neutral or ground wire of the

power cord must be connected to the neutral terminal
located in the center of the terminal block. The power
leads must be connected to the lower left and the
lower right terminals of the terminal block.

Ŷ5HPRYHWKHJURXQGVWUDSORFDWHGDWWKHULJKWVLGH

of the terminal block) and connect between the
center lower portion of the terminal block to the
frame of the range.

6

3-WIRE POWER CORD

INSTALLATION (Cont.)

Ŷ5HPRYHWKHORZHUWHUPLQDOVFUHZVIURPWKH

terminal block. Insert the 3 terminal screws through
each power cord terminal ring and into the lower
terminals of the terminal block. Be certain that
the center wire (white/neutral) is connected to the
center lower position of the terminal block. Tighten
screws securely into the terminal block.

DO NOT REMOVE THE GROUND STRAP

CONNECTION.

Before

After

Terminal

Block

Terminal

Block

Neutral
Terminal

Neutral Terminal

Ground Strap

Ground Plate
(grounding to
range)

Ground

Screw

Ground Strap

or

Ground
Strap

Terminal Block
(appearance may vary)

Neutral
Terminal

Power Cord

Ground

Plate
