Installation
8

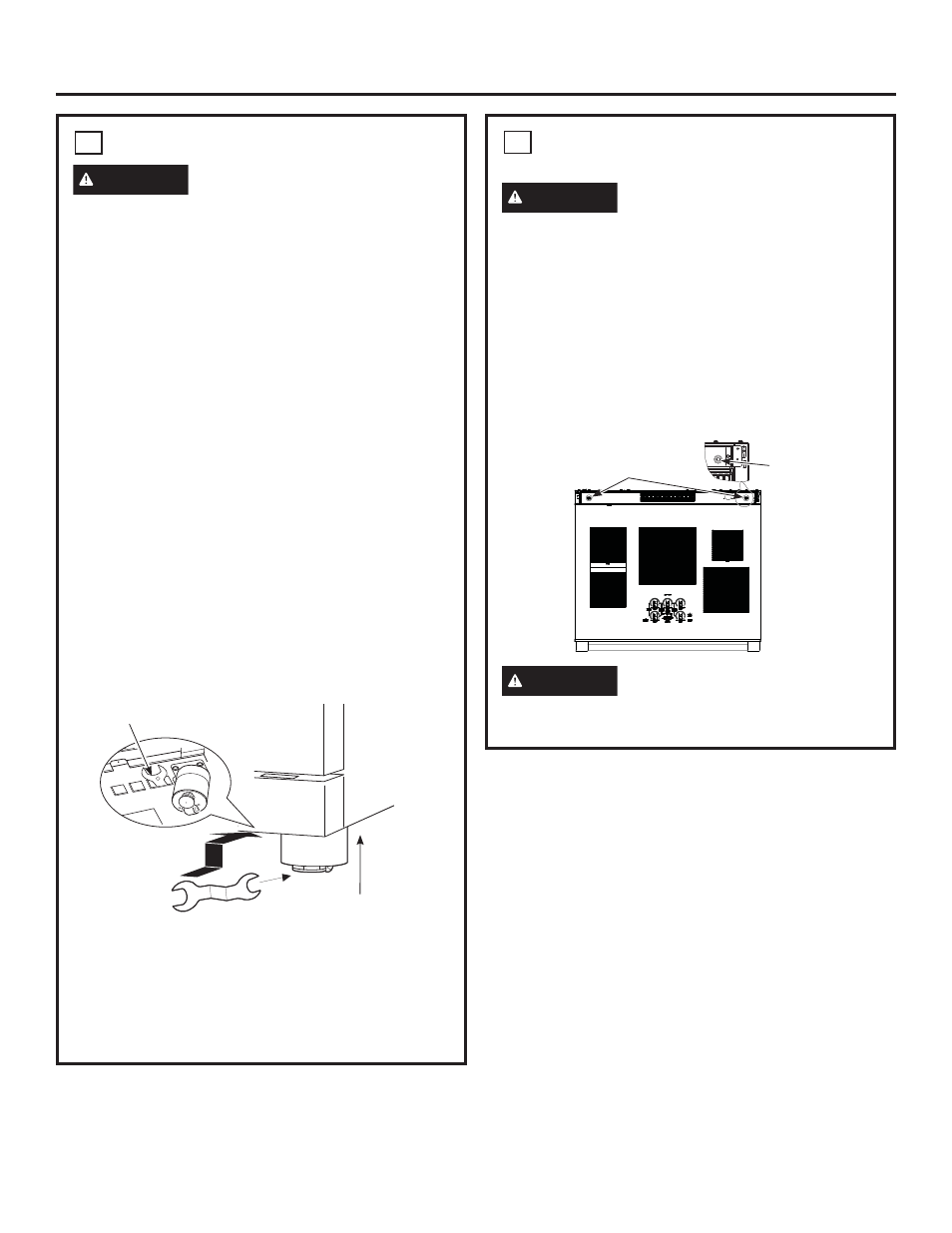

LEVEL THE RANGE
WARNING
The range must be level and be
supported by the legs—not the wheels. The range could
move if the wheels make contact with the floor. Be sure
all legs make contact with the floor in any installation.
Ŷ$OOOHJVPXVWEHOHYHOHGDIWHUWKHSURGXFWLVLQVWDOOHG
Ŷ&KHFNWREHVXUHWKHDGMRLQLQJFDELQHWVFRXQWHUWRSV
are level, front to back and left to right across the
opening of the range.
Ŷ Measure the distance from the floor to the top of the
countertop in the left and right rear corners.
Ŷ Adjust the height of the range to countertop height
or higher.
IMPORTANT: This range should always be installed
at countertop height or higher. DO NOT INSTALL THE
RANGE LOWER THAN ADJACENT COUNTERTOP
HEIGHT. The range must be supported by all 4 legs,
regardless of countertop height.
FRONT LEG ADJUSTMENT
Ŷ$OHYHOLQJOHJZUHQFKLVVXSSOLHG5HDFKXQGHUWKH
front of the range near the right leg. Locate and
remove a thumb screw, then slide wrench out of
the slot.
Ŷ6OLGHIURQWF\OLQGHUVXSWRDFFHVVIURQWOHYHOLQJOHJV
Be careful not to damage cylinder.
Ŷ8VHWKHVXSSOLHGZUHQFKWRDGMXVWWKHIURQWOHYHOLQJ
legs. Turn clockwise to extend the legs to lift and
stabilize the range. Turn counterclockwise to retract
the legs and allow the range to rest on its rollers.
Ŷ%HVXUHWRUHWXUQWKHZUHQFKWRLWVVWRUDJHVORWIRU
future use.
8
LEVEL THE RANGE (cont.)
REAR LEG ADJUSTMENT
WARNING
To reduce the risk of fire or electric
shock, always replace the spill plugs in the leveling
rod holes.
Ŷ Remove two screws from rear vent trim. Slide vent
trim forward, then lift up to remove.
Ŷ Remove the 2 spill plugs to locate the rear leg
extension leveling rods. Use a 1/4” driver or socket
wrench to adjust the left or right rear legs.
Ŷ Find the two rear leg extension rods. Use a 1/4” driver
or wrench to adjust the left or right rear legs.
Ŷ Replace the 2 spill plugs and then replace the rear
vent trim using the original screws.
WARNING
Do not adjust legs over the 36 15/16”
maximum unit height (as specified on Pages 4-6) with
respect to whatever surface the range sits on.
Slide leg
cylinder up.
Thumb Screw
Spill Plugs
Rear Leg
Extension
Rods
