ENGLISH

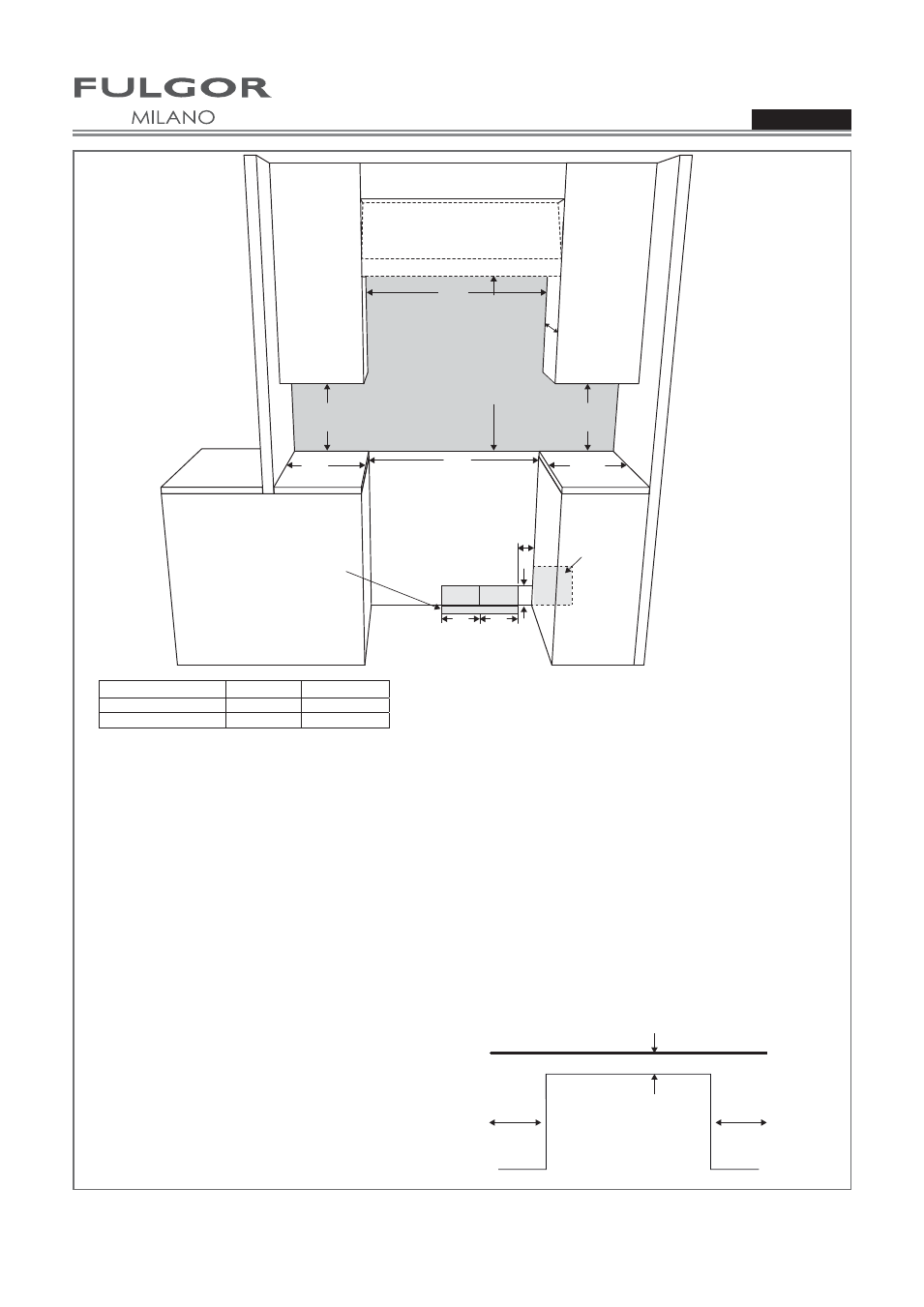

Installation Manual
4
A
Back
min 2- ½ ” (6,3)
min 18”
(45,7)
SHADED AREA:
The surface of the entire back wall above the range and below the hood
must be covered with a noncombustible material.
min
30”
(76,2)
min
6”
(15,2)
min
3”
(7,6)
min
3”
(7,6)
3”
( 9 )
GAS ELECTRIC
min
4 3/4”
(12,3)
B B
min
6”
(15,2)
*Suggested
location of
utilities
*Consult local code for exact location requirements.
min 18”
(45,7)
Minimum
to Combustibles
or
to botton of
ventilation hood
ADDITIONAL CLEARANCES:
For island installation, maintain 2-½ in. minimum from
cutout to back edge of countertop and 3 in. minimum
from cutout to side edges of countertop (see top view).
OPENING WIDTH A
&
C
B
Range 30" 30" (76,2) 6" (15,2)
Clearances to non-combustible materials must conform with local codes or, in the absence of local codes,
with the National Fuel Gas Code, ANSI Z223.1/NFPA 54.
Minimum clearances:
Above cooking surface (above 36” [91.4 cm])
• Sides - 3” (7.6 cm)
• Within 3” (7.6 cm) side clearance, wall cabinets no deeper than 13” (33.0 cm) must be minimum
18” (45.7 cm) above cooking surface
• Wall cabinets directly above product must be a minimum of 30” (76.2 cm) above cooking surface.
• Rear - 0” with 3 ” (7.6 cm) backguard.
2” (5,1) max.
protusion from wall
for gas or electrical supply
C
max
13”
(33)
Cutout requirements
