ENGLISH

Installation Manual

13

to see the appropriate connection type)

3) Connect line 1 (black) and line 2 (red) wires to the

outer terminal block posts with 10-32 hex nuts.

4) Securely tighten hex nuts.
5) Replace terminal block access cover.

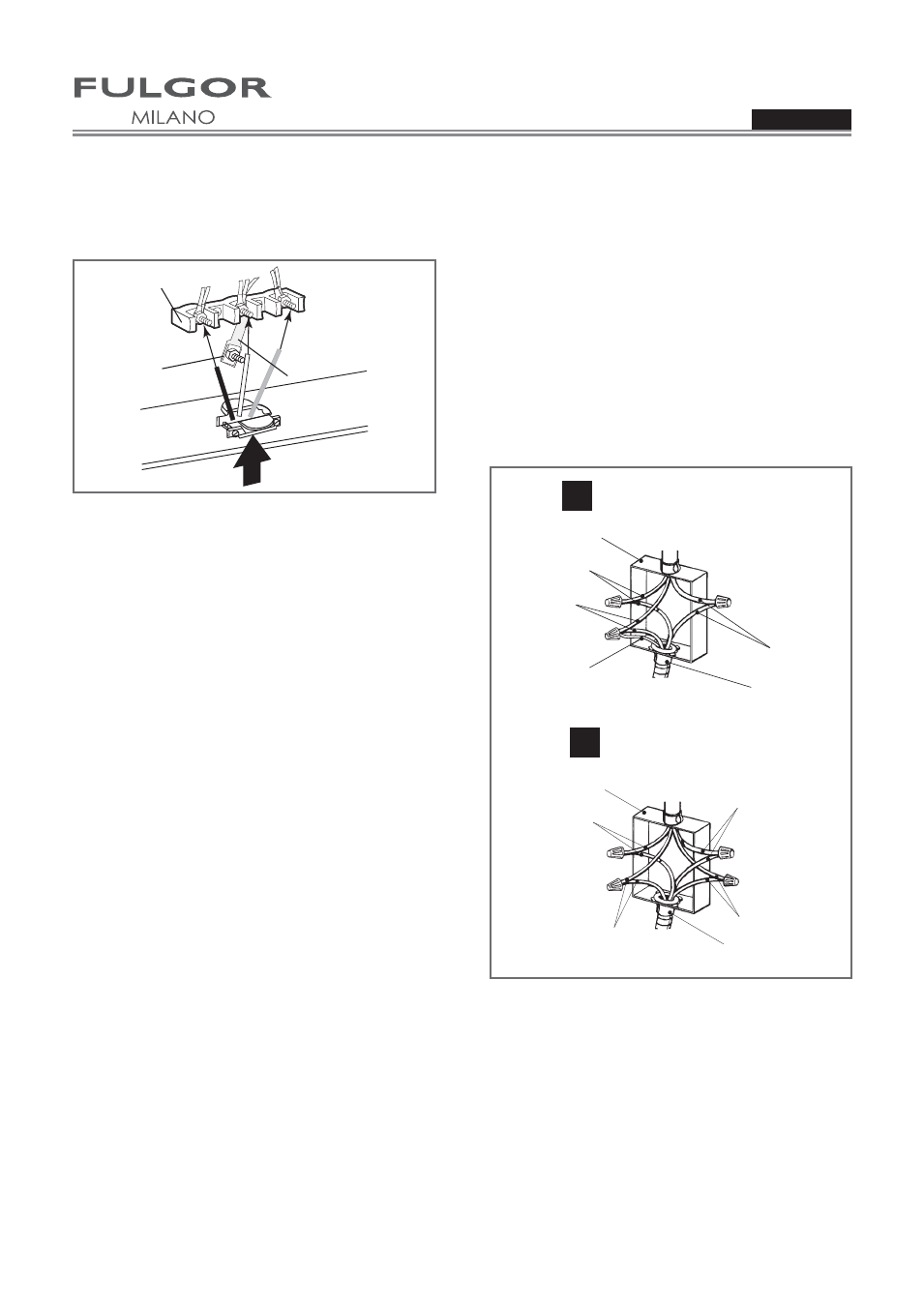

B

A

C

D

E

F

A. Terminal block
B. ground strap
C. L1 Black wire
D. L2 Red wire
E. Neutral White wire
F. Ground Link screw

Direct Electrical Connection to the Circuit
$ % &$ '$

If the appliance is connected directly to the circuit
' @
armored or non metallic sheathed copper cable (with
grounding wire).

3-WIRE BRANCH CIRCUIT (for US only)

Refer to Figure A:
where local codes allow the connection of GROUND
wire from the range to the branch circuit NEUTRAL
wire (gray or white colored wire):

- If local codes permit, connect the green GROUND

wire from the range and the white wire from the
oven to the branch circuit NEUTRAL wire (gray or
white colored wire).

- Connect the red and black leads from the range

to the corresponding leads in the junction box.

4-WIRE BRANCH CIRCUIT (for US only)

Refer to Figure B:

- Disconnect ground from neutral at free end of

conduit.

- Connect the green GROUND wire from the range

to the GROUND wire in the junction box (bare or
green colored wire).

- Connect the red and black leads from the range

to the corresponding leads in the junction box.

- Connect the white wire from the range to the

NEUTRAL (gray or white) wire in the junction box.

* +*,

DO NOT

connect to electrical power supply until appliance
is permanently grounded. Connect the ground wire
before turning on the power.

Red wires

Junction box

Cable from

power supply

White wires

Black wires

UL listed conduit

connector

Cable

from oven

Bare or

green wire

Ungrounded Neutral

B

Cable from

power supply

Junction box

UL listed conduit

connector

Red wires

White wires

Black wires

Cable

from oven

Bare or

green wire

Grounded Neutral

A
