ENGLISH
Installation Manual
12

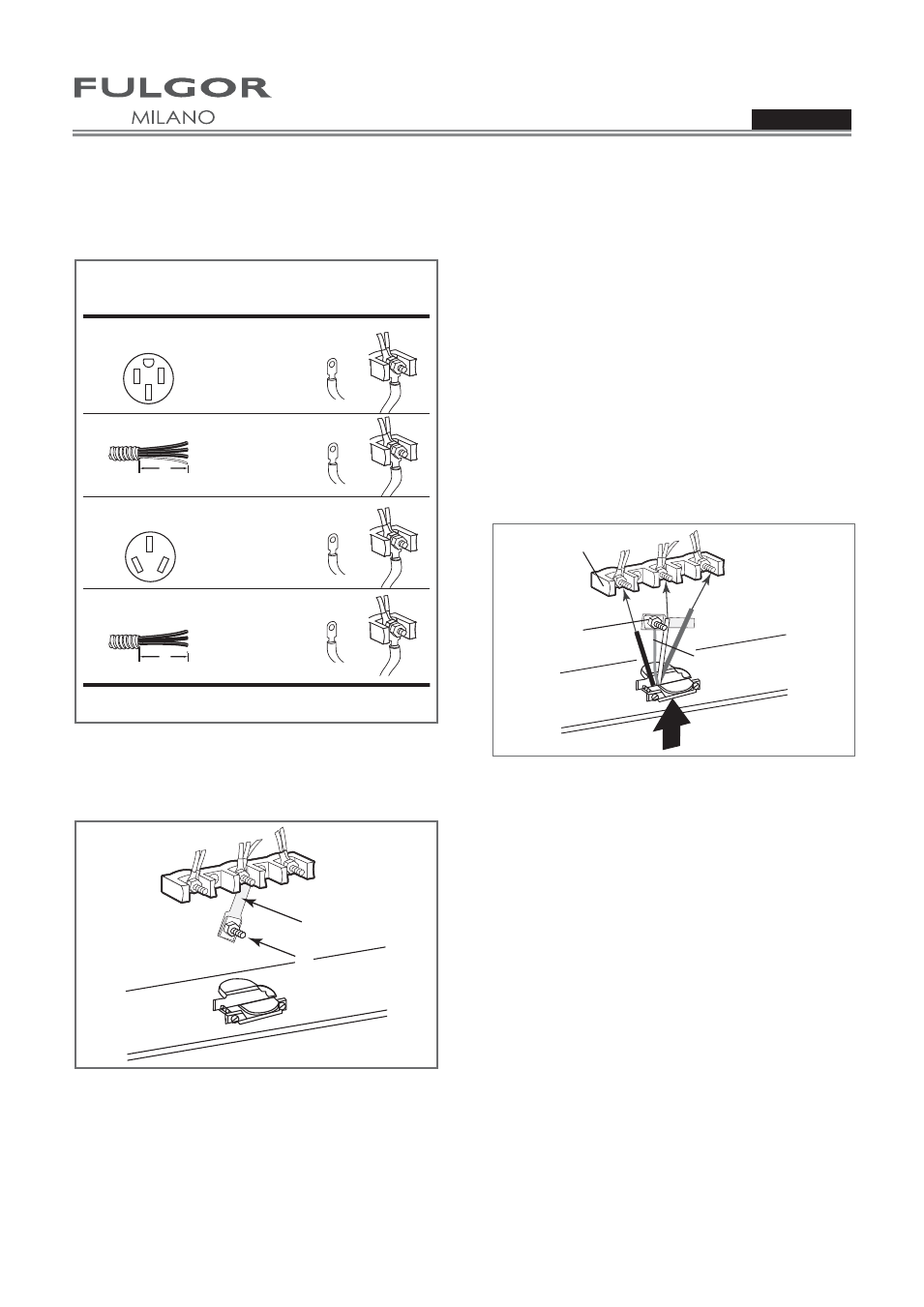

4) Complete installation following instructions for
your type of electrical connection:
• 4-wire (recommended)
• 3-wire (if 4-wire is not available)
If your home has: And you will be
connecting to:
Connection type:
4-wire receptacle
(NEMA type 14-50R) A UL listed,
250-volt
minimum,
30-amp, range
power supply
cord
4-wire direct A fused
disconnect or
circuit breaker
box
3-wire direct A fused
disconnect or
circuit breaker
box
(12.7 cm)
5"
3-wire receptacle
(NEMA type 10-50R) A UL listed,
250-volt
minimum,
30-amp, range
power supply
cord
(12.7 cm)
5"
Electrical Connection Options
!"
Part of metal ground strap must be removed.
B
A
A. Metal ground strap
B. Ground-link screw
1) Use Phillips screwdriver to remove the ground-
link screw from the back of the range. Save the
ground-link screw and the end of the ground link
under the screw.
2) Feed the power supply cord through the strain
relief in the cord/conduit plate on bottom of range.
Allow enough slack to easily attach the wiring to
the terminal block.
3) Use Phillips screwdriver to connect the green
ground wire from the power supply cord to the
range with the ground-link screw. The ground
"
4) Use 3/8” nut driver to connect the neutral (white)
wire to the enter terminal block post with one of
the 10-32 hex nuts.
(Refer to the “Electric Connection Options” table
to see the appropriate connection type)
5) Connect line 1 (black) and line 2 (red) wires to the
outer terminal block posts with 10-32 hex nuts.
6) Securely tighten hex nuts.
7) Replace terminal block access cover.
A
B
C
D
E
F
A. Terminal block
B. Bare or Green wire
C. L1 Black wire
D. L2 Red wire
E. Neutral White wire
F. Ground Link screw
#"
Use this method only if local codes permit connecting
chassis ground conductor to neutral wire of power
supply cord.
1) Feed the power supply cord through the strain
relief in the cord/conduit plate on bottom of range.
Allow enough slack to easily attach the wiring to
the terminal block.
2) Use 3/8 nut driver to connect the neutral (white)
wire to the center terminal block post with one of
the 10-32 hex nuts.
(Refer to the “Electric Connection Options” table
