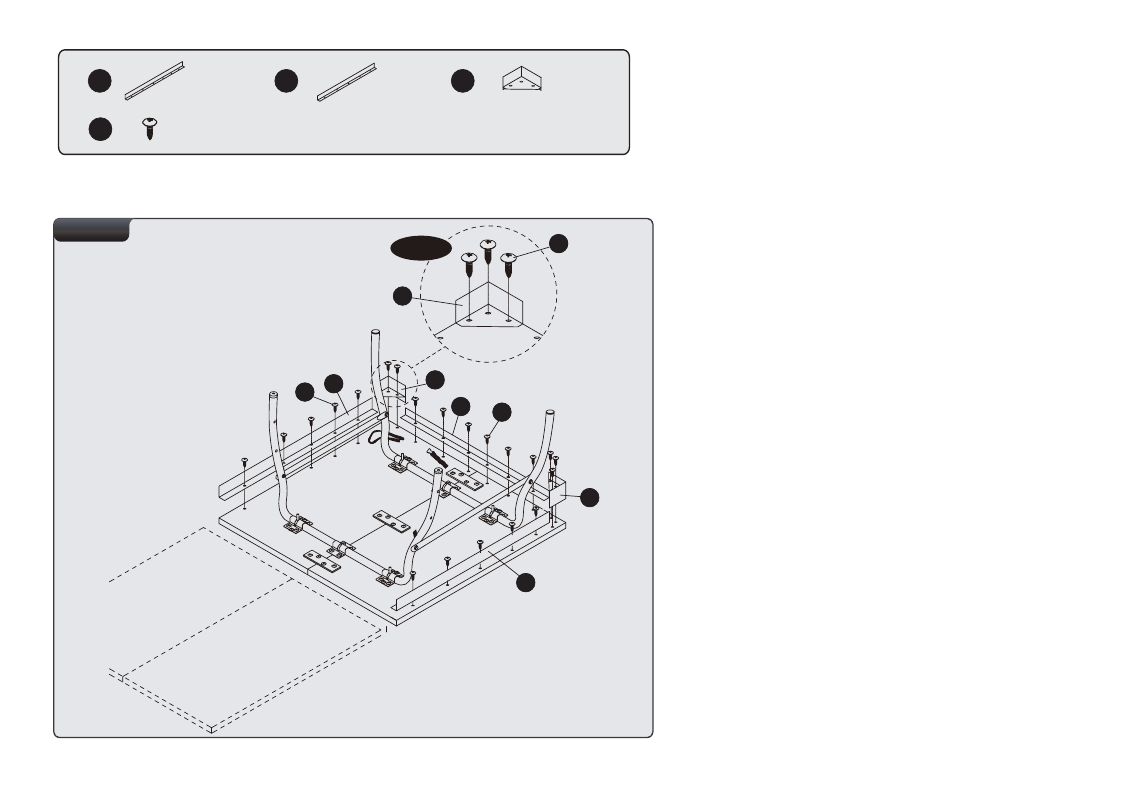

14. Place the Plastic Corner (#17) flush with table corner
and attach using three Screws (# A1 ) per Corner.
See FIG. 4A.
15. Place the End Apron (#11) between the corners and
flush with the table edge at the Player end of table
using six Screws (# A1 ) per End Apron. See FIG. 4.
16. Place the Side Apron (#12) flush with table edge at the
side of the table using five Screws (# A1 ) per Side
Apron. See FIG. 4.
NOTE: Make sure the all Aprons are inside the
Plastic Corners.
A1
17
17
17
12
12
11
A1
A1
Player
Player
Center
FIG. 4A
