ASSEMBLY INSTRUCTIONS

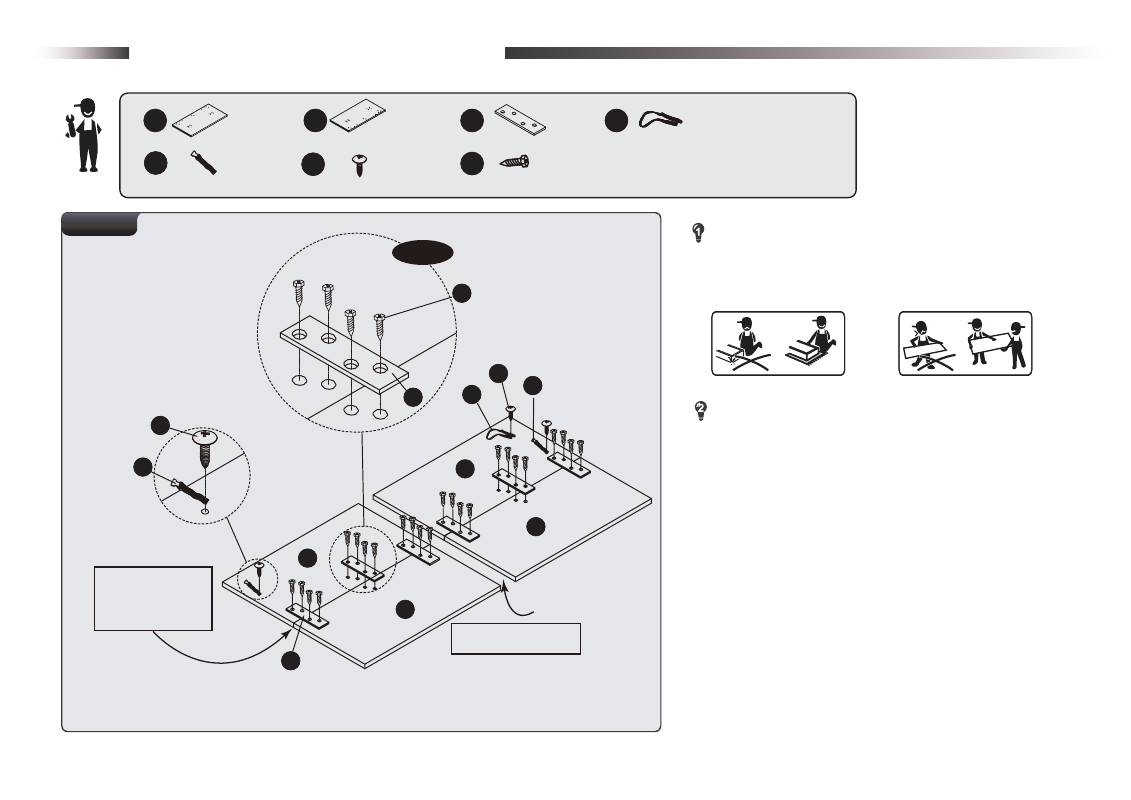

FIG. 1
3
x 3 x 2 A1 14
x 2 x 2 x 6 1 2 9
x 24 A7
x 1 13
Find a clean, level place to begin the assembly of your
Table Tennis Table. The table will be assembled upside
down and then turned over. This is a heavy game and
turning it over will require at least two strong adults.
Remove all of the contents from box and verify that you
have all of the listed parts as shown on the Parts List.
Carefully cut or tear the four carton corners so that the
bottom of the box can be used as your work surface.
1
2
FIG.1
3. Place Table Surface-A (#1) and Table Surface-B (#2)
with the painted surface facing down on a flat surface.
4. Connect Table Surfaces together using three Brackets
(#9) using twelve Screws (#A7). See FIG. 1 and 1A.
5. Attach the Safety Strap - Long (#13) and Safety
Strap - Short (#14) to the surface using three Screws
(#A1). See FIG. 1.
A1
A1
14
14
1
1
2
2
9
9
A7
13
Note:
Align the inside seams of
each sections so that
pre-drilled holes line up
across from each other.
Note: Center gap tolerance
approximately 10~13mm.
Player
Player
Center
FIG. 1A
