Medal Sports WMC1344121 - Manuel (Page 5)

x 2 x 2 x 8
x 64
5 6 19
19
19
19
20
5
6
20
19
19
x 4 20
P1 A7 P2
PRE-INSTALLED PRE-INSTALLED
x 4 x 4
4

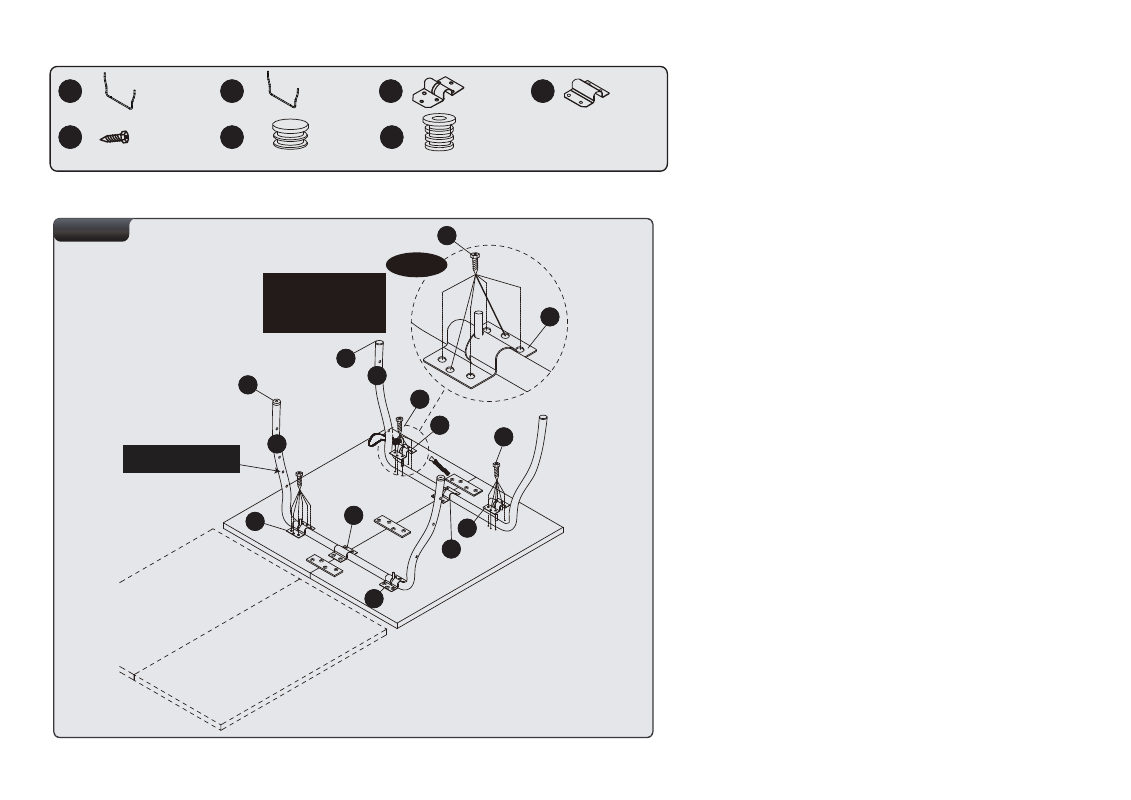

FIG. 2
FIG.2
6. Place one Curved Outer Leg with Cap (#5) on the player
end of the table half and one Curved Inner Leg with Cap
(#6) on the center end of the table half.
7. Attach the Leg Bracket (#19 & #20) to the Curved Outer
Leg (#5) and the Curved Inner Leg (#6) using Screws
(#A7). See FIG. 2A.
8. Repeat the above steps for the other table half.
Player
Player
Center
NOTE: Make sure that the
oval cut-out in the Leg
Bracket are facing the
center of the table for
proper installation.
This is hole for “Gravity
Lock” assembly.
A7
A7
A7
P1
P2
FIG. 2A
