20. Before turning the table over, make sure to push the
Curved Inner Leg (#6) towards the center of the table in
order to fix leg in right position.
NOTE: Two adults are required to turn this table over.
21. One person should stand at each center of the table
and turn the table over completely so that it rests on its
legs.
22. Standing at the sides of the table, place the two table
halves so they are inches apart.
NOTE: Be careful that you do not push either half
backwards as this may cause the legs to fold!

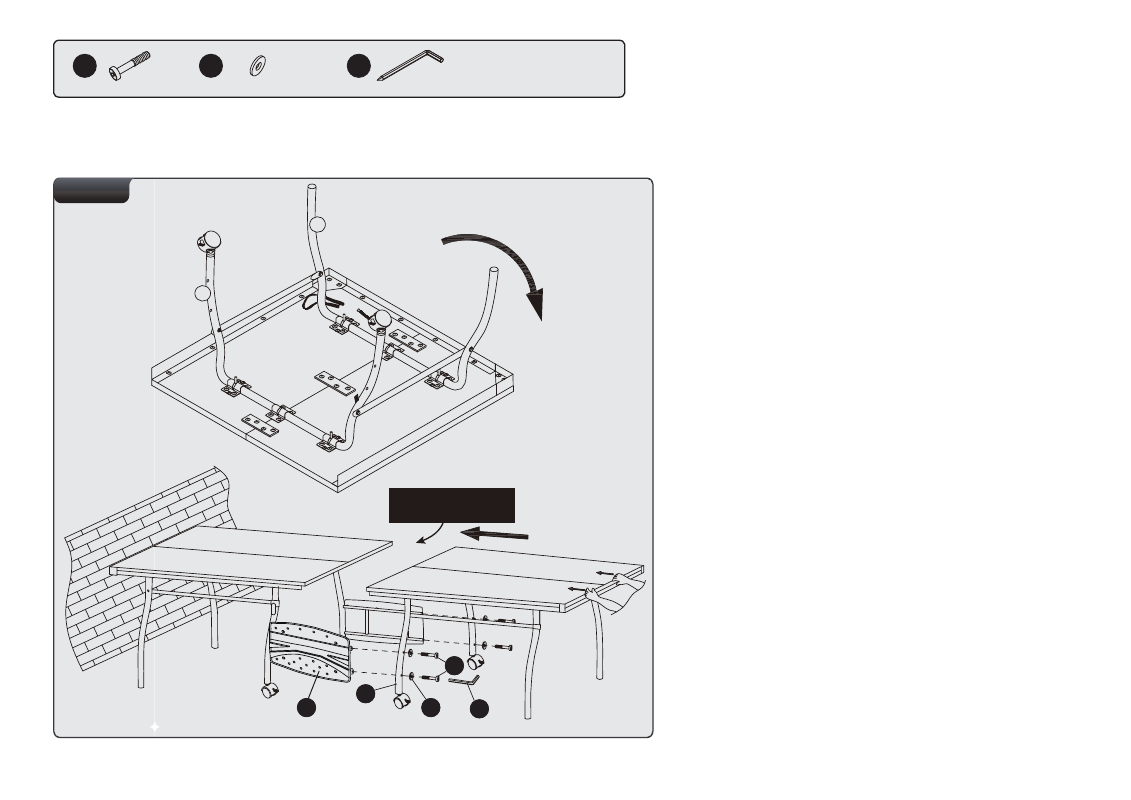

23. Attach the Plastic Panel with Frame (#21) to the
opposite table half using two Bolts (#A3) and two
Washers (#A4) per frame.See FIG. 7.
Now go back and tighten all the connections.
A9 x 1 x 4 x 4 A3 A4
Player
Center
6
5
Note: Center gap tolerance
approximately 10~13mm.
21 A9
6
A4
A3
