PRE-INSTALLED PRE-INSTALLED
2
Curved Inner Legwith Cap
x 2
Curved Outer Legwith Cap
x 2
Table Tennis Ball
x 2
Table Tennis Paddle
x 2
1
Table Surface-A
x 2
2
9
17 18
10 11 12
13 14 15 16
3 4 5 6
7 8
Safety Strap - Long
x 1
Safety Strap - Short
x 2
Net Post
x 2
Net
x 1
Table Surface-B
x 2
End Apron (1.35m)
x 2
Gravity Lock
x 2
Bracket
x 6
Linkage Tube with Stop Bracket
x 2
Linkage Tube
x 2
Wheel
x 4
Plastic Corner
x 4
A1 A2 19 20 21 22
Leg Bracket - A
x 8
Leg Bracket - B
x 4
“T” Washer
x 2
M6 X 45MM Bolt
x 8
M4 X 12MM Screw
x 47
Plastic Panel with Frame
x 2
M6 X 50MM Bolt
x 10
A3 A4
6MM Washer
x 28
Side Apron (1.25m)
x 4
A5
16MM Spacer
x 8
A7 A8 A6
M5 X 13MM Screw
x 88
Wrench
x 1
Allen Key
x 1
A9
M6 Nut
x 10

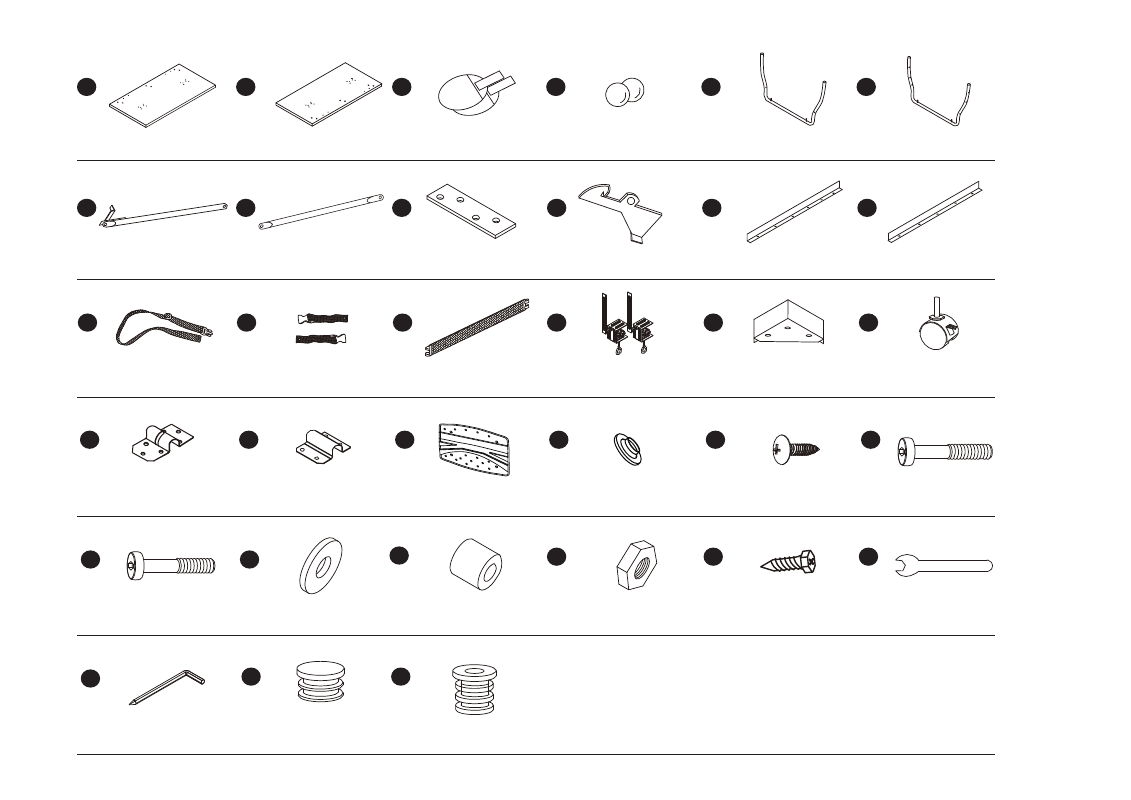

1344121 PARTS LIST
P1 P2
Inner Leg Cap
x4
Outer Leg Cap
x4
