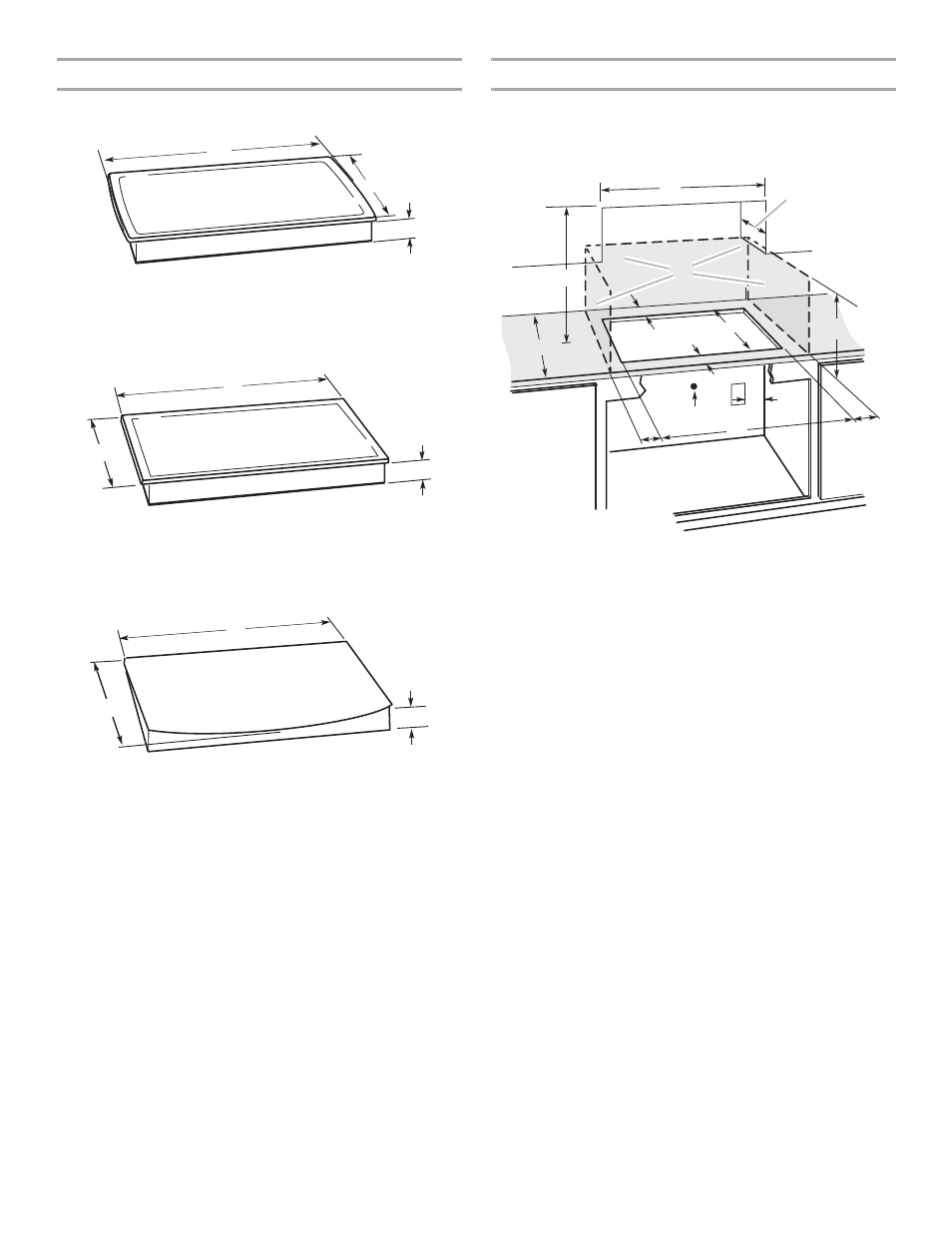

Product Dimensions
Metal Cooktops
Straight-edge glass cooktops
Curved-edge glass cooktops
Cabinet Dimensions
IMPORTANT: If installing a range hood or microwave hood
combination above the cooktop, follow the range hood or
microwave hood combination installation instructions for
dimensional clearances above the cooktop surface.
NOTES: After making the countertop cutout, some installations
may require notching down the base cabinet side walls to clear
the cooktop base. To avoid this modification, use a base cabinet
with sidewalls wider than the cutout.
If cabinet has a drawer, a 4" (10.2 cm) depth clearance from the
countertop to the top of the drawer (or other obstruction) in base
cabinet is required. The drawer depth may need to be shortened
to avoid interfering with the regulator.
A. 31 ⁷⁄₁₆" (79.8 cm) on 30" (76.2 cm) models,
37 ⁹⁄₁₆" (95.4 cm) on 36" (91.4 cm) models
B. 21 ¹⁄₄" (53.4 cm)
C. 2 ⁷⁄₈" (7.3 cm)
A. 20 ⁵⁄₁₆" (51.5 cm)
B. 30 ³⁄₁₆" (76.8 cm) on 30" (76.2 cm) models,
36 ⁷⁄₁₆" (92.5 cm) on 36" (91.4 cm) models
C. 2 ⁷⁄₈" (7.3 cm)
A. 21 ¹⁄₈" (53.7 cm)
B. 30 ⁵⁄₁₆" (77.0 cm) on 30" (76.2 cm) models,
36 ⁵⁄₁₆" (92.3 cm) on 36" (91.4 cm) models
C. 2 ⁷⁄₈" (7.3 cm)
A
B
C
C
A
B
A
B
C
A. 30
"
(76.2 cm) on 30
"
models; 36
"
(91.4 cm) on 36
"
models
B. Combustible area above countertop (shown by dashed box
above)
C. 30
"
(76.2 cm) minimum clearance between top of cooktop
platform and bottom of uncovered wood or metal cabinet (24
"
[61 cm] minimum clearance if bottom of wood or metal
cabinet is covered by not less than
¹⁄₄ "
[0.6 cm] flame retardant
millboard covered with not less than No. 28
MSG sheet steel, 0.015
"
[0.04 cm] stainless steel, or
0.024
"
[0.06 cm] aluminum or 0.020
"
[0.05 cm] copper)
D. 13 " (33 cm) recommended upper cabinet depth
E. 2 ¹⁄₈ "
(5.4 cm)
F. 19
"
(48.3 cm)
G. 18" (45.7 cm) minimum clearance from upper cabinet to
countertop within minimum horizontal clearances to cooktop
H. Grounded outlet - locate within 24" (61 cm) of right rear corner
of cutout
I. 29" (73.7 cm) on 30" models; 35¼" (89.5 cm) on 36" models
J. 8 ³⁄₈" (21.3 cm) minimum distance to nearest left and right side
combustible surface
K. 2 ⁷⁄₈" (7.3 cm) minimum distance to rear combustible surface
L. Gas line opening - Wall: anywhere 5" (12.7 cm) below
underside of countertop. Cabinet floor: anywhere within
6" (15.2 cm) of rear wall is recommended
M. 24" (61 cm) minimum countertop depth is required
B
D
A
C
E
F
H
I J
G
K
L
M
J
