10

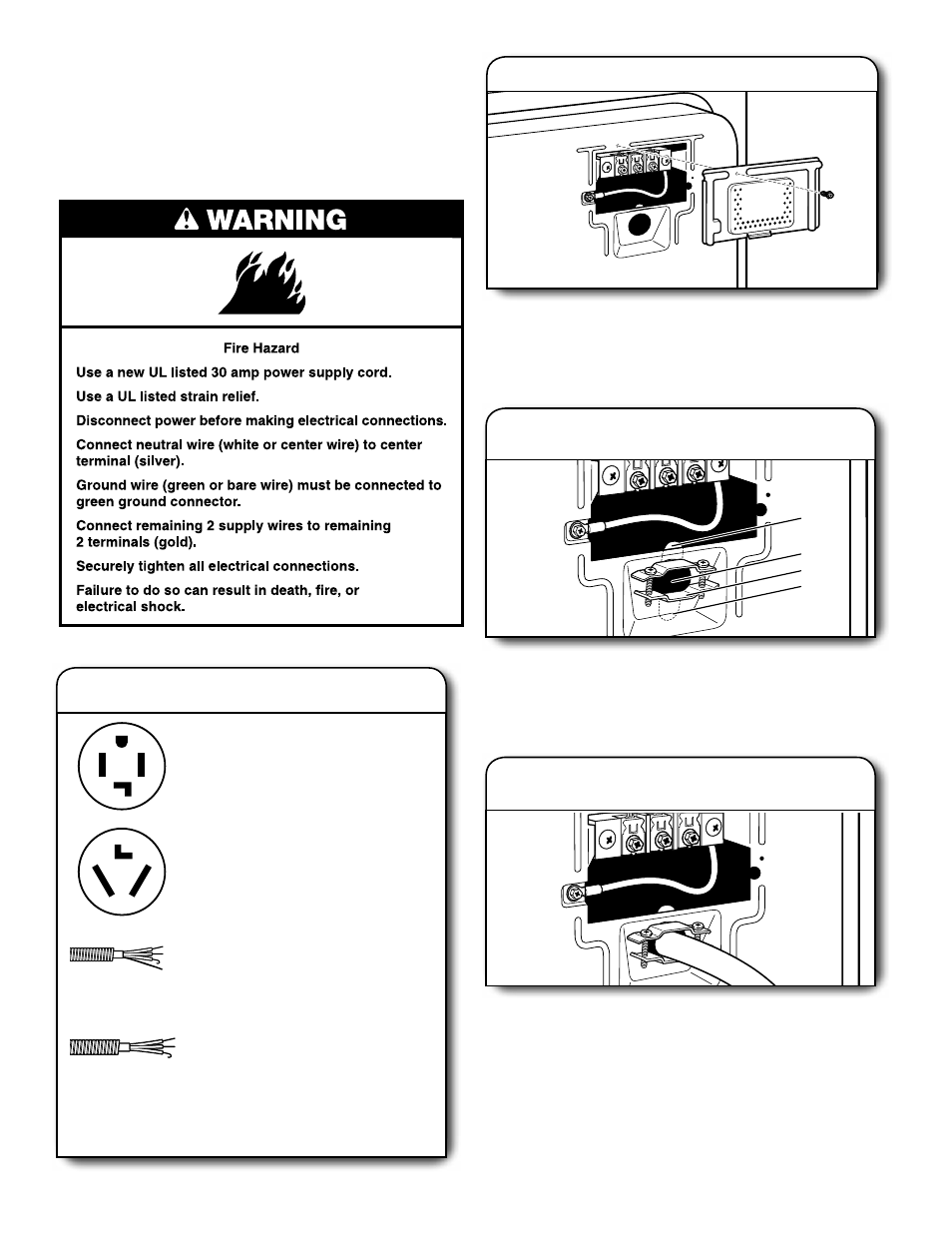

MAkE ELECTRICAL CONNECTION
- U.S.A. ONLY (EFFECTUER LE
RACCORDEMENT ÉLECTRIQUE –
ÉTATS-UNIS SEULEMENT)
ELECTRICAL CONNECTION
Electrical Connection Options
Power Supply Cord
1.
Choose electrical connection type
Power supply cord 4-wire receptacle
(NEMA Type 14-30R):
Go to Power Supply Cord Connection.
3-wire direct connection:
Go to Direct Wire Connection.
4-wire direct connection:
Go to Direct Wire Connection.
Power supply cord 3-wire receptacle
(NEMA Type 10-30R):
Go to Power Supply Cord Connection.
NOTE: If local codes do not permit connection of a
cabinet-ground conductor to neutral wire, go to “Optional
3-wire connection.” This connection may be used with
either a power supply cord or a direct wire connection.
2.
Remove terminal block cover
Remove hold-down screw and terminal block cover.
Put power supply cord through the strain relief. Be sure that
the wire insulation on the power supply cord is inside the
strain relief. The strain relief should have a tight fit with the
dryer cabinet and be in a horizontal position. Do not further
tighten strain relief screws at this point.
Attach power supply cord
to strain relief
2.
A
B
C
D
Attach power supply cord
strain relief
Remove the screws from a 3/4" (19 mm) UL listed strain relief
(UL marking on strain relief). Put the tabs of the two clamp
sections (C) into the hole below the terminal block opening
(B) so that one tab is pointing up (A) and the other is pointing
down (D), and hold in place. Tighten strain relief screws just
enough to hold the two clamp sections (C) together.
1.
Power Supply Cord Strain Relief
POWER SUPPLY CORD CONNECTION
