FONCTIONNEMENT
HD3070
avec console manuelle Manuel de l’opérateur
2-3
12/28/99
Sélecteur à molettes (S1) AMPS (INTENSITÉ)
Choisit le courant de coupage prescrit.
Potentiomètre (P1) PIERCE DELAY (RETARD DE PERÇAGE)
Retarde l’augmentation progressive du courant.

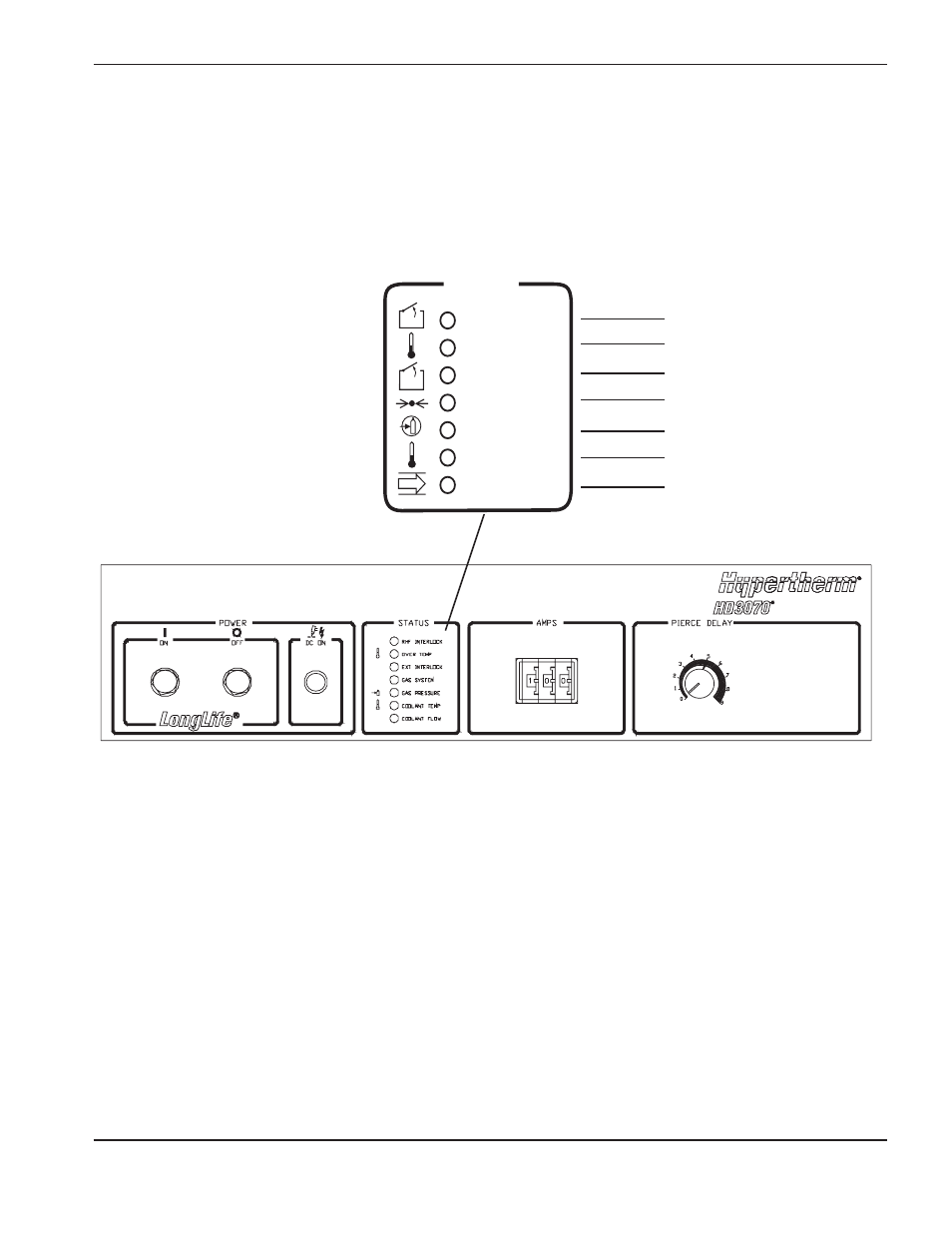

Figure 2-1
Commandes et voyants du panneau de commande de la source de courant HD3070
RHF INTERLOCK
OVER TEMP
EXT INTERLOCK
GAS SYSTEM
GAS PRESSURE
COOLANT TEMP
COOLANT FLOW
STATUS
3070STAT.08
VERROUILLAGE HF À
DISTANCE
SURCHAUFFE
VERROUILLAGE
EXTÉRIEUR
SYSTÈME DE GAZ
PRESSION DES GAZ
TEMP. LIQUIDE DE
REFROIDISSEMENT
DÉBIT LIQUIDE DE
REFROIDISSEMENT
DEL D’ÉTAT
