5 6 7
9
Remove the four (4) Phillips fixing
screws (W) from the back side of the
console.
While supporting the console
(R), join
plugs V and K2.
Join plug T with plug S.
Gently tuck the wires into the top of
the console mast.
Align the fixing holes in the back of
the console with those on the console
mast mounting plate. Re-install the
four console fixing bolts (W).
Install the rubber grommet (U).
U
T
P
Q 2 Q 3 Q 4 Q 5
Q 7
Q 6
Q 1
R
V
S
W
CC
X

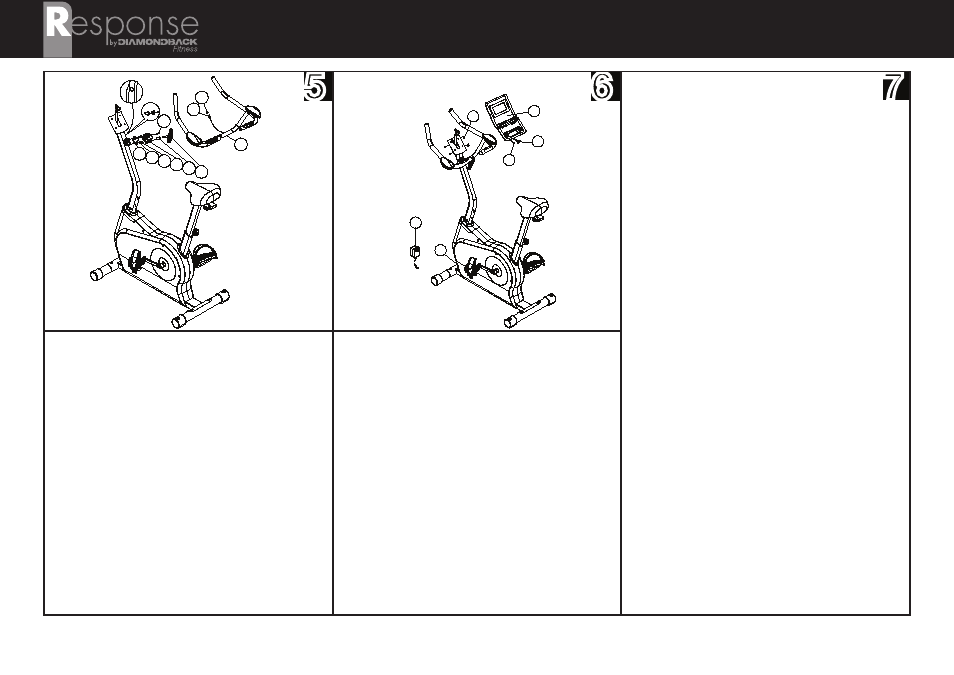

While supporting the handlebar (P),
assemble the handlebar clamp parts
(Q1, Q2, Q3, Q4, Q5, Q6 & Q7)
as per the diagram above. Adjust
handlebar to desired angle and fix by
rotating the-handle clockwise.
Thread the heart rate wire harness
connector (T) through the hole on the
right side of the console mast and up
through the opening at the top.
FINAL SETUP & INSTALLATION
Move the unit into final position with
the help of the front transport rollers.
Carefully lift and support the rear end
of the unit until both wheels touch the
ground. Slowly roll into position.
After moving the unit, ensure all four
feet touch the floor. Review assembly
step #1 above for leveling instructions.
Adjust the final position of the bars
(P) by loosening the T-Handle (Q6)
counter-clockwise. Select the desired
angle and re-tighten the T-handle.
To adjust the seat post height for the
proper riding position, unlock the seat
post adjustment knob (BB) by rotating
it counter-clockwise a few turns.
Support the seat post assembly and
pull outward on the knob to retract
the pin. Adjust the height, taking
care to not extend the post beyond
the minimum insertion mark (MAX)
stamped into the post. Release the pin
and ensure the post is fixed. Lock the
post into place by re-tightening the
adjustment knob (BB).
Inspect the unit for loose bolts,
hardware, knobs or pins.
Plug the AC adaptor in an outlet. Plug
the other end into the input jack (CC).
