Assembly Notes
• Please read the entire Response U6c Owner’s Manual before beginning
the assembly. Review the package contents to ensure all listed parts are
included.
• The assembler will require a 15 mm box wrench, a 6 mm hex wrench, a 15
mm pedal wrench, and a Phillips screwdriver for assembly. All required tools
are included.
• The estimated assembly time of the Response U6c by a person familiar with
basic tool usage is thirty (30) to forty-five (45) minutes.
• Always inspect the unit to ensure handlebars are fixed and the seat post is
locked into position prior to using the unit.
1

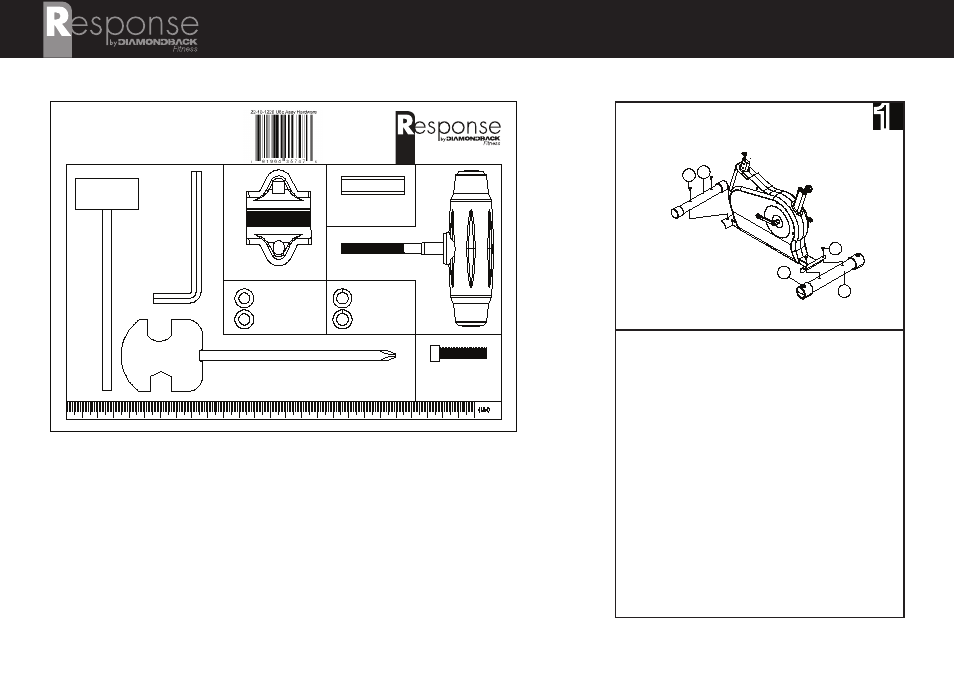

Assembly Instructions
Bushing
ID 7.0 x OD 12.0 (1)
T-Handle M7 x 65 mm (1)
Model: Response U6c Assembly Hardware Kit Card
Year: DB Fitness 2010
Graphics Prepared by: Skip Reys; [email protected]
Date Created:
30-Mar-10
Crank Bolt
& Nut
Wrench/
Screwdriver
(1)
Pedal Wrench / Screwdriver (1)
Allen
Wrench (1)
Handlebar Clamp (1)
Lock Washers
for handlebar
clamp
ID 7.0 mm (2)
Hex Bolt for
handlebar clamp
M7 .0 x 1.0 x 30 mm (1)
Flat Washers
for handlebar
clamp
ID 7.0 mm (2)
Response U6c
Assembly Hardware Kit
DP #22-10-1220
7
B
D
C
A
AA
Remove the hex fixing bolts (B & D)
from the front stabilizer (A) and rear
stabilizer (C).
Align the holes in the main frame with
the recessed nuts in the stabilizers
and thread the fixing bolts into place
Level the base by adjusting the
leveling feet integrated into each of the
stabilizer end caps (AA). Rotate the
knobs counter-clockwise to raise the
feet and clockwise to lower them.
NOTE: Always check the stability
of the unit after it has been moved
as serious injury can result.
