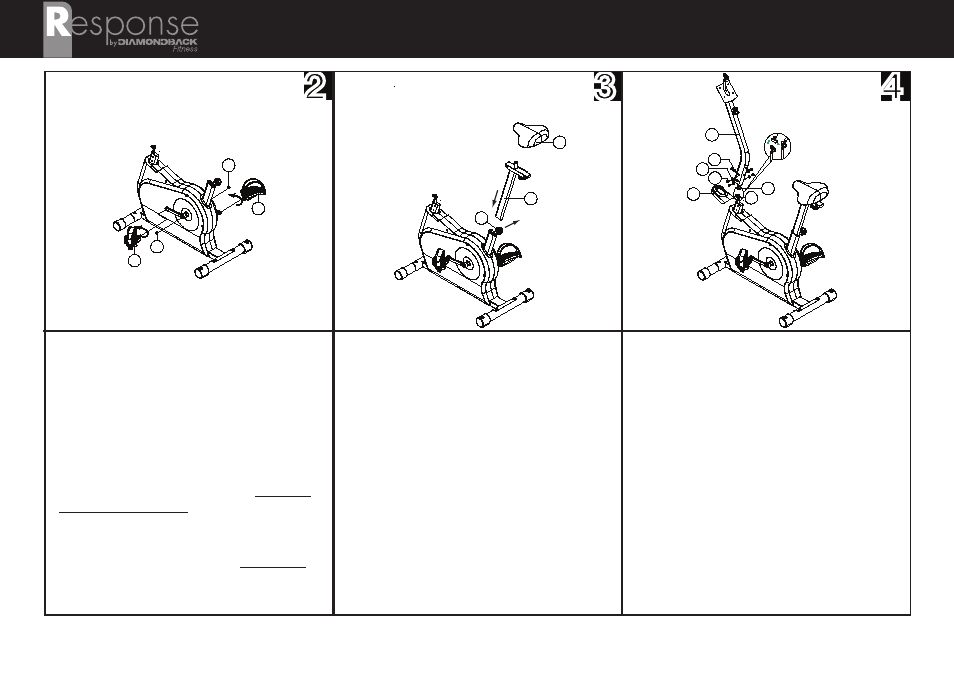

Slide the clamp on the underside of
saddle (F) onto the seat post (G) and
tighten the nuts evenly.
Slide the entire seat post assembly
into the main frame seat tube. Un-
thread the adjuster knob on the
right side of the seat tube, and pull
outward, away from frame to allow
post to enter the seat tube. Adjust the
seat to preferred height and release
the knob.
Do not extend the post beyond
the minimum insertion mark (MAX)
stamped into the post. . Ensure the
post is fixed in place, and tighten
knob.
Remove the left and right crank caps
(Z) by inserting a flathead screwdriver
into the cap opening and un-threading
counter-clockwise.
Tighten both crank nuts (clockwise)
with the enclosed box wrench and
replace the crank caps.
Thread the left pedal
(E1) into the
left crank. Tighten firmly in a counter-
clockwise direction with the spanner
wrench.
Install the right pedal
(E2) into the
right crank, tightening in a clockwise
direction. Reinstall the crank caps (Z).
Remove the five (5) hex bolts (N), four
(4) flat washers (M) and one (1) curved
washer (L) from the console mast (J).
Orient and slide the console mast
cover (Y) onto the console mast (J).
While supporting the console mast,
carefully join connectors (H) and (K1).
Slide the console mast into place onto
the main frame. Install only the lower
bolts, nuts and washers L, M & N.
Slide the console mast cover (Y)
downward and snap into place.
Re-install the two (2) bolts
(N) and
washers (M) into the upper holes.
