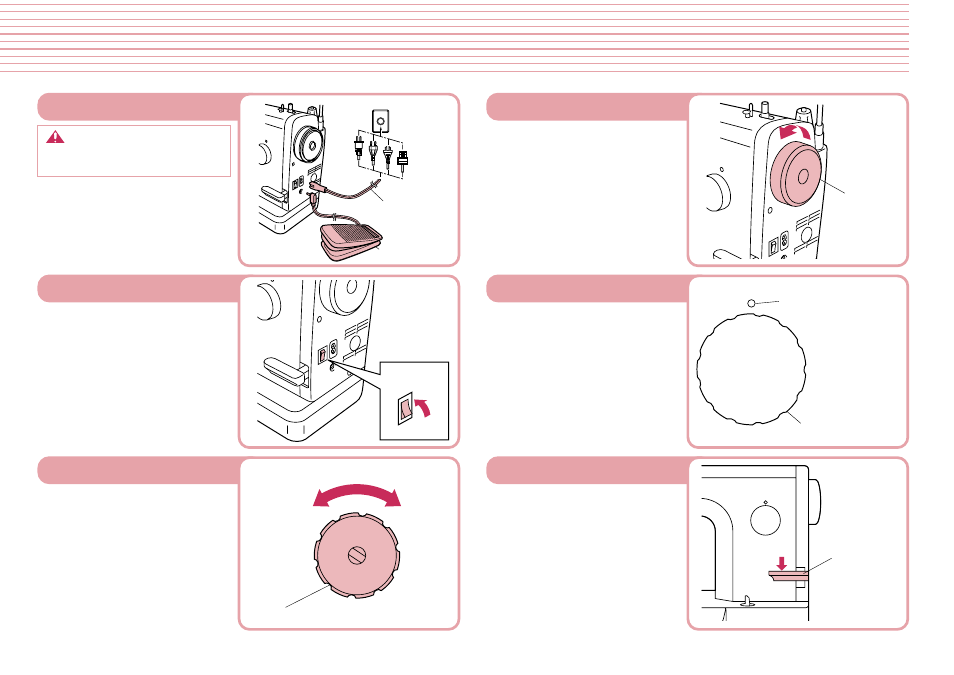

Before You Begin (1)
Power Cord and Foot Controller
Note
Please use common household
current.
● Plug in cord.
● Plug foot controller into machine.
Power Switch
● Flip power switch to “ I ” position to
turn on.
● To switch power off, flip switch to
“ O ” position.
Hand Wheel
● Position needle using hand
wheel.
✽ Always turn hand wheel towards
you.
Stitch Length Regulator
● Adjust desired stitch length using
stitch length regulator dial.
Reverse Stitch Lever
● Sewing in reverse is possible
when the reverse stitch lever is in
the lowered position.
✽ Make sure to push the lever all
the way down when reverse sew-
ing is desired.
✽ When the feed adjustment dial is
set between 5-7mm, the reverse
stitch length is always 5 mm.
Power Switch
I
O
Hand Wheel
1
2
3
4
5
6
7
Stitch Length Regulator
Reference Mark
Lower number
= shorter stitches
Higher number
= longer stitches
Stitch Length
Reverse Stitch
Lever
Thread Tension Dial
● When tighter thread tension is
desired, turn the tension dial to
the right. Upper and bobbin
threads will meet on right side of
the fabric.
● When looser thread tension is de-
sired, turn tension dial to the left.
Upper and lower threads will then
meet on wrong side of fabric.
Upper Thread Tension
Loosen Tighten
Tension Block
3
Power Cord
Foot Controller
