Baby Lock Jane (BL500A) Instruction and Reference Guide - Manuel (Page 8)

2

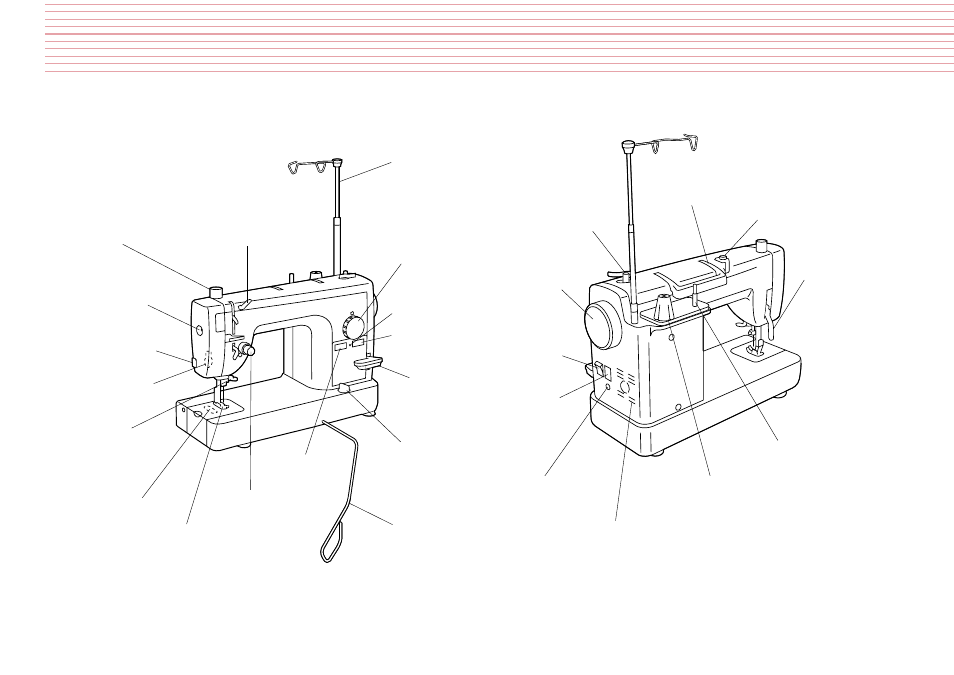

Machine Features
Presser Foot Pressure
Adjustment Dial (Page 4) Three Hole
Thread Guide (Page 10)
Light Switch
(Page 5)
Thread Trimmer
Sewing Area
Light (Page 6)
Feed Dogs
(Page 5 and 14)
Thread Guide Bar
(Page 7)
Stitch Length
Regulator (Page 3)
Needle Stop Position
Button (Page 5)
Reverse Stitch
Lever (Page 3)
Feed Dog Adjustment
Knob (Page 5)
Knee Lift
(Page 4)
Bobbin Winder
(Page 7)
Hand Wheel
(Page 3)
Power Switch
(Page 3)
Foot Controller Jack
(Page 3)
Power Socket
(Page 3)
Spool Cone Holder
(Page 7)
Spool Pin
(Page 7)
Presser Foot
Lift Lever (Page 4)
Thread Guide for
Bobbin Winding (Page 7) Handle
Air Vents
Thread Cutter
Button (Page 5)
Thread Tension Dial
(Page 3 and 12)
Indicator Lamp
Needle Threader
(Page 10 and 11)
Quick Bobbin
Thread Device (Page 9)
