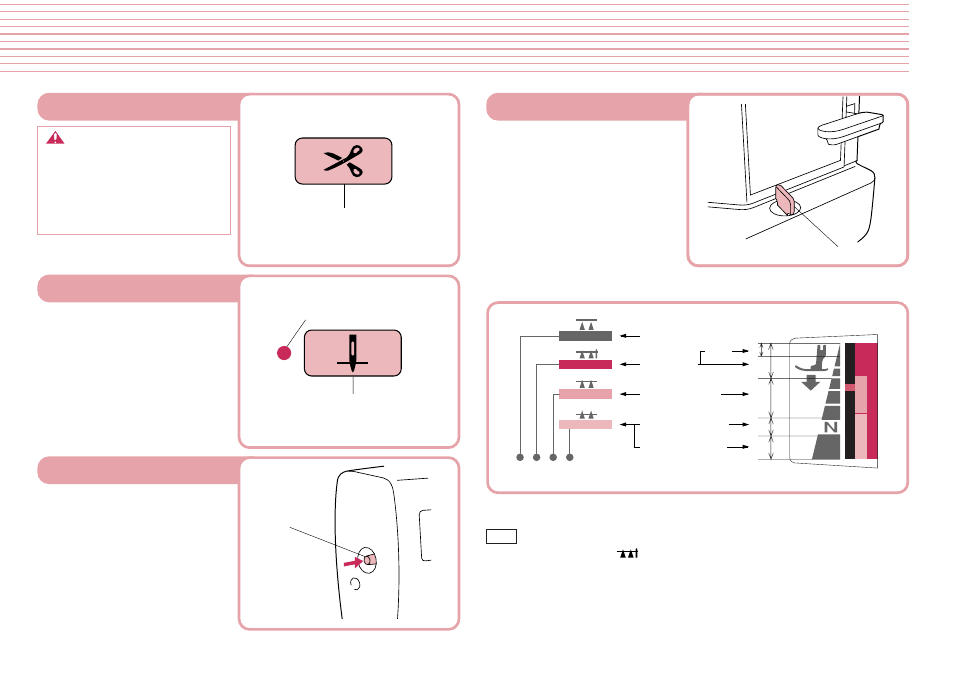

Before You Begin (2)
Thread Cutter Button
Note
When the machine stops due to
jammed threads and so forth, do not
step on the foot controller, turn the
power off and move the needle with the
hand wheel, check the situation. Other-
wise broken needles could result.
● The thread cutter trims upper and
bobbin threads at the end of seams.
Needle Stop Position Button
● When indicator lamp is lit up, the
machine will stop sewing with the
needle lowered through the fabric.
● When indicator lamp is off, the
needle position when sewing
stops, will be random.
● If the safety mechanism is acti-
vated, for example if the thread
becomes tangled, the red lamp
flashes.
Light Switch
● Push light switch to turn the light
over the sewing area on and off.
Feed Dog Adjustment Knob
● Height of feed dogs can be ad-
justed to coincide with fabric
weights.
Foot Pressure and Feed Dog Position
Thread Cutter Button
Indicator Lamp
Needle Stop Position Button
Light Switch
Feed Dog Adjustment Knob
Select one of four feed dog positions according to your needs.
Note
✽ If a setting other than is selected, the pin feed mechanism will not operate.
✽ Coordinate the color coding for proper foot pressure and feed dog settings.
(Feed Dogs Down)
(Pin Feeding)
Velvet
Lightweight Fabrics
Middleweight Fabrics
Heavyweight Fabrics
✽ Press with the presser lever down.
5
