4

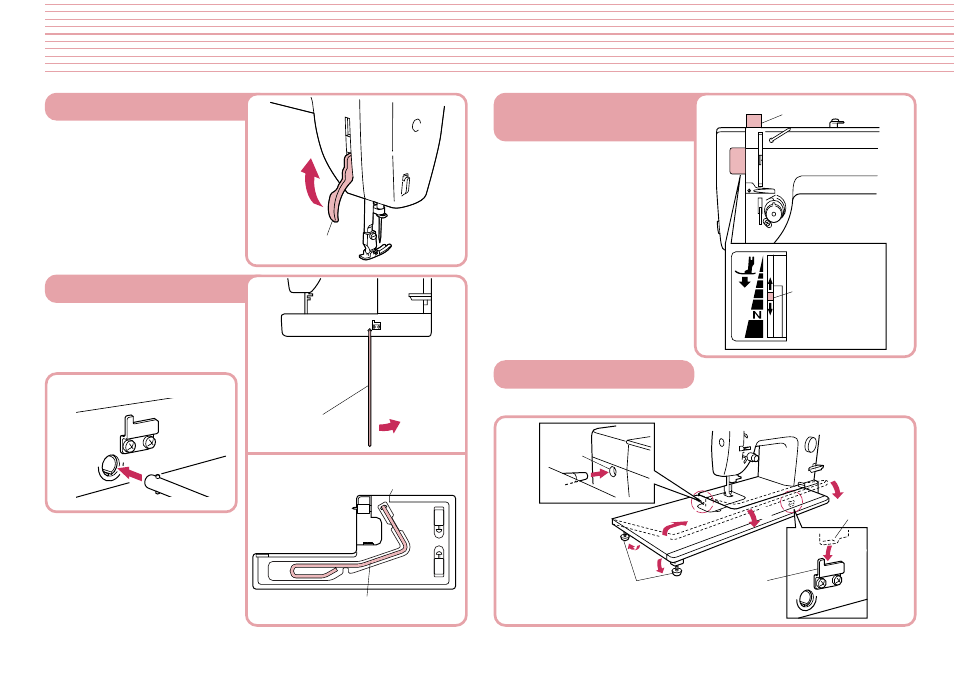

Presser Foot Lift Lever
● Lowering the presser foot lift le-
ver lowers the sewing foot down
onto the fabric and engages the
thread tension function.
✽ When working with heavy fabrics
or other fabrics that don ’ t slide
easily under the foot, raise the
presser foot lever to position the
fabric.
Knee Lift
● Using the convenient knee lift to
lift and lower the presser foot
easily, leaving both your hands
free.
Presser Foot Pressure
Adjustment Dial
● Turning the pressure adjustment
dial raises and lowers the pres-
sure indicator needle as the
amount of pressure on the
presser foot changes.
See also: “ Feed Dog Adjustment
Knob ” on page 5.
✽ See “ Thread Tension ” on page
12.
✽ Coordinate the color coding for
proper foot pressure and feed
dog settings.
Presser Foot
Lift Lever
Knee Lift
Setting up the knee lift.
Presser Foot Pressure Adjustment Dial
Pressure Indicator
Needle
✽ Push the knee lift bar all the way
into the socket.
✽ When knee lift is not in use, it
can rest at the bottom of the fab-
ric extension table.
Fabric Extension Table
Knee Lift
Fabric Extension Table
● Lower table feet and attach fabric extension table as shown in the below diagram.
Table legs
1
3
2
Stopper
Hook
3
Guide pin
Hole
2
