INSERT PELLET STOVE INSTALLATION - continued

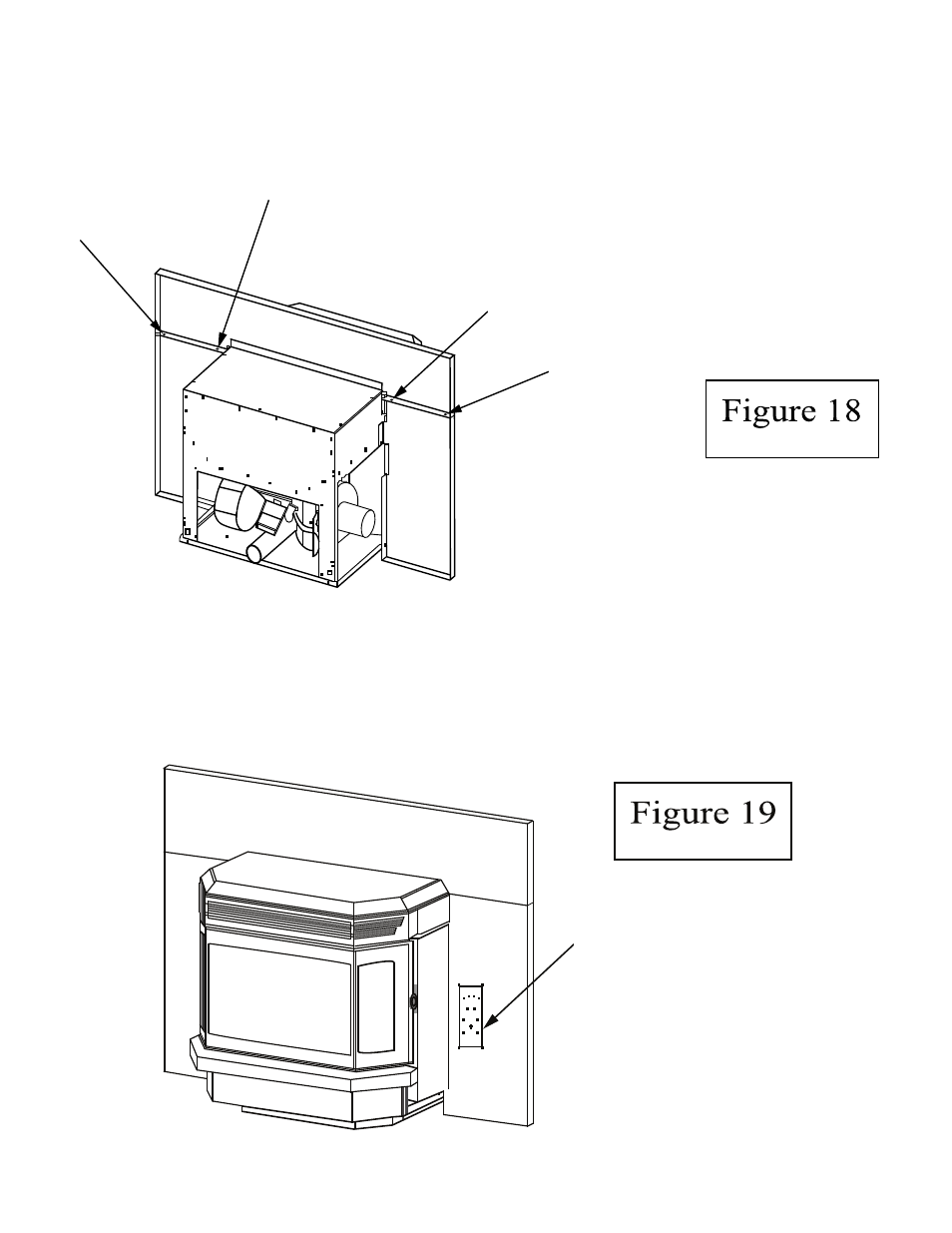

Step 3: Shroud Top: Facing the back of the unit take the top shroud side piece and fasten, as shown, with 4 screws pro-
vided
.
Step 4: Control Board: Take the control board and insert it from the back of the right shroud side (facing front of
unit). Fasten control board in place with 4 screws provided (top & bottom of board).
Screw Here
Screw Here
Screw Here
Screw Here
Control Board
Vissez ici
Vissez ici
Vissez ici
Vissez ici
Panneau de commandes
