4
INSTALLATION INSTRUCTIONS

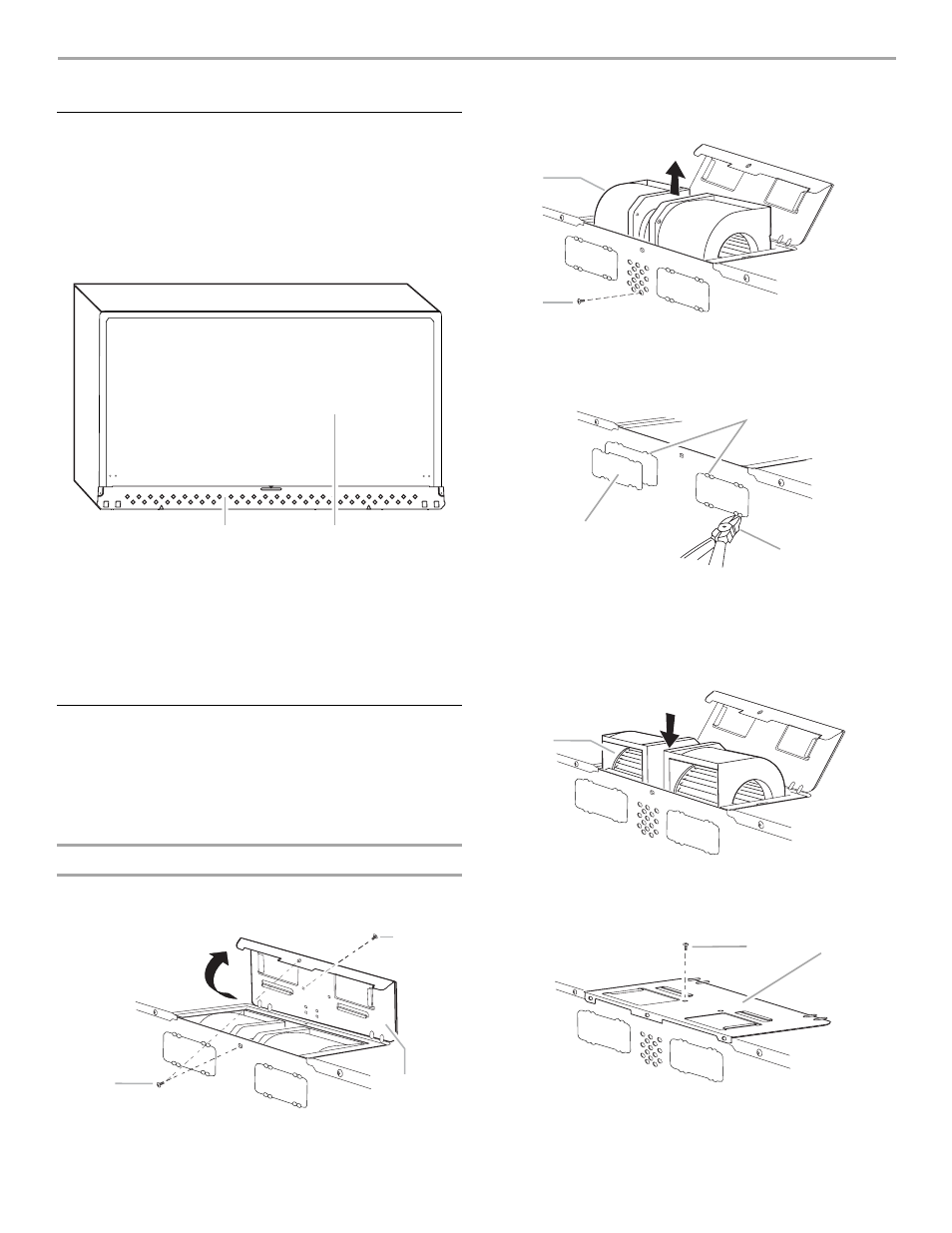

Remove Mounting Plate
NOTE: To avoid possible damage to the work surface, cover the
work surface.
1. Remove any remaining contents from the microwave oven
cavity.
2. Remove the 2 screws that attach the mounting plate to the
back of the microwave oven, then remove mounting plate and
set aside.
3. Reattach the 2 screws.
4. Tape the microwave oven door closed so that door does not
swing open while the microwave oven is being handled.
NOTE: To avoid damage to the microwave oven, do not grip or
use the door or door handle while the microwave oven is being
handled.
Rotate Blower Motor
The microwave oven is set for recirculation installation. For wall or
roof venting, changes must be made to the venting system.
NOTE: Skip this section if you are using recirculation installation.
Keep the damper assembly in case the venting method is
changed, or the microwave oven is reinstalled in another location
where wall or roof venting may be used.
Wall Venting Installation Only
1. Remove damper plate screw and top blower motor screw
attaching damper plate to top of microwave oven exterior. Lift
up damper plate.
2. Remove the blower motor screw from the back of the
microwave oven, then lift out blower motor.
3. Using diagonal wire cutting pliers, snip out the rear damper
vent covers at the perforations.
4. Rotate blower motor 180° so that exhaust ports face the back
of microwave oven, and lower blower motor back into the
microwave oven.
5. Close damper plate, and reinsert top blower motor screw
removed in Step 1.
A. Mounting plate
B. Back of microwave oven
A. Damper plate screw
B. Damper plate
C. Top blower motor screw
A B
A B
C
A. Blower motor
B. Blower motor screw
A. Damper vent covers
B. Perforations
C. Diagonal wire cutting pliers
A. Exhaust port
A. Top blower motor screw
B. Damper plate
A
B
C
B
A
A
A B
