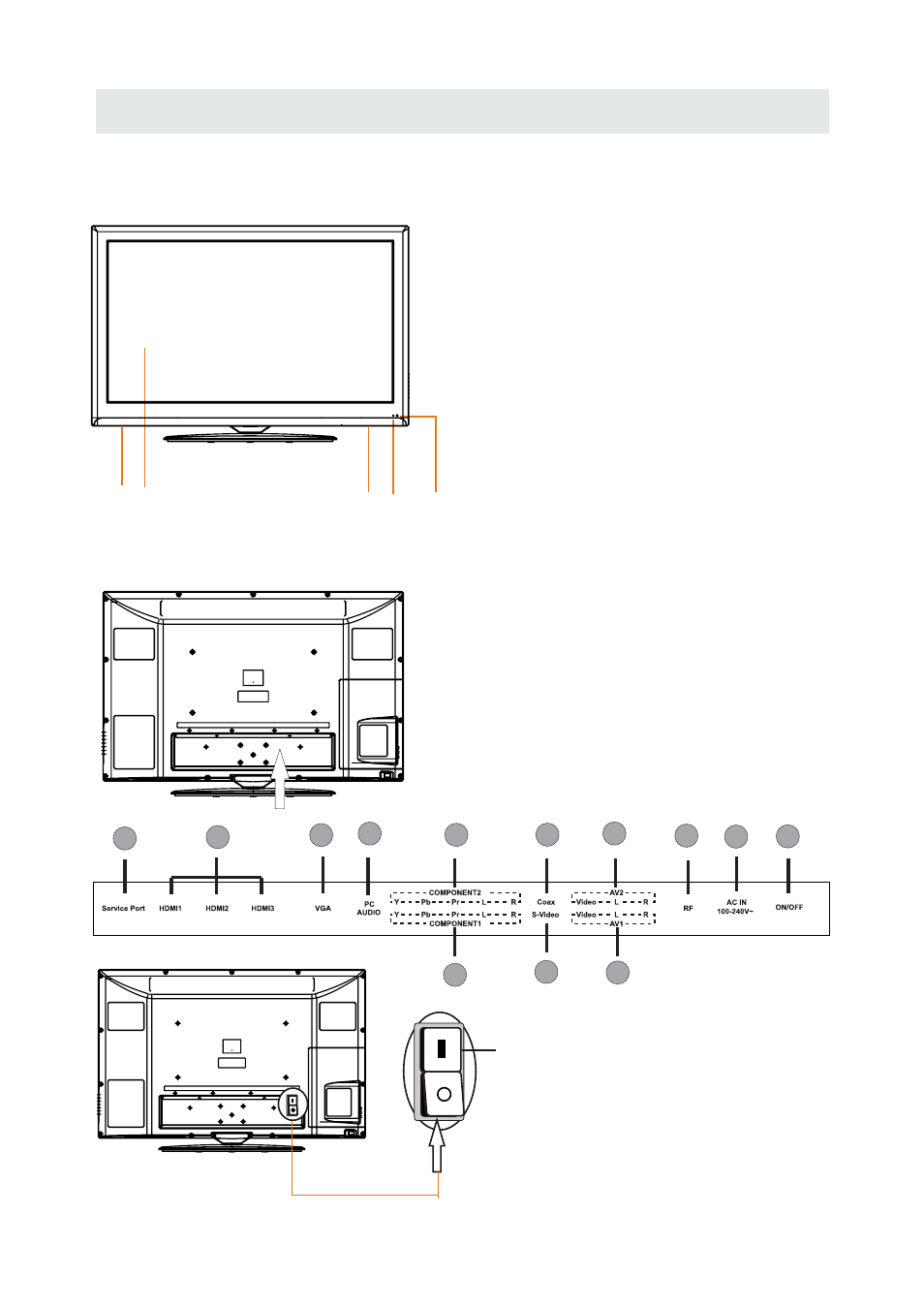

CONTROL REFERENCE GUIDE
BACK VIEW
FRONT VIEW
1.Color Screen
2.Remote Sensor
Do not block this sensor or the
remote control will not work.
3.Standby Indicator
Indicates whether the unit is ON
or in STANDBY (OFF) mode.
Light in red: The unit is in STANDBY.
Light in
blue :The unit is turned ON.
4. Speakers
3 2 4 4 1
5
1.ON/OFF Switch
2.AC IN 100-240V~ 50/60Hz
3.Service Port
4.HDMI IN Jacks
5.VGA IN Jack
6.PC AUDIO IN Jack
7.COMPONENT1 IN Jack
8.COMPONENT2 IN Jack
9.Coax OUT Jack
10.S-Video IN Jack
(The S-Video's audio is the same as the AV1)
11.AV1 (VIDEO/ AUDIO L/R)in
12.AV2 (VIDEO/ AUDIO L/ R)in
13.TV ANTENNA Terminal
1 2 3 4 5 6 13 8 9
10
12
7
11
After you connect the power cord into the
power socket, make sure the power cord is
fully inserted into the unit. Then press the
power ON/OFF switch to “ON” position as
shown left.
ON
