RETURN 1 to 4 / VU Out

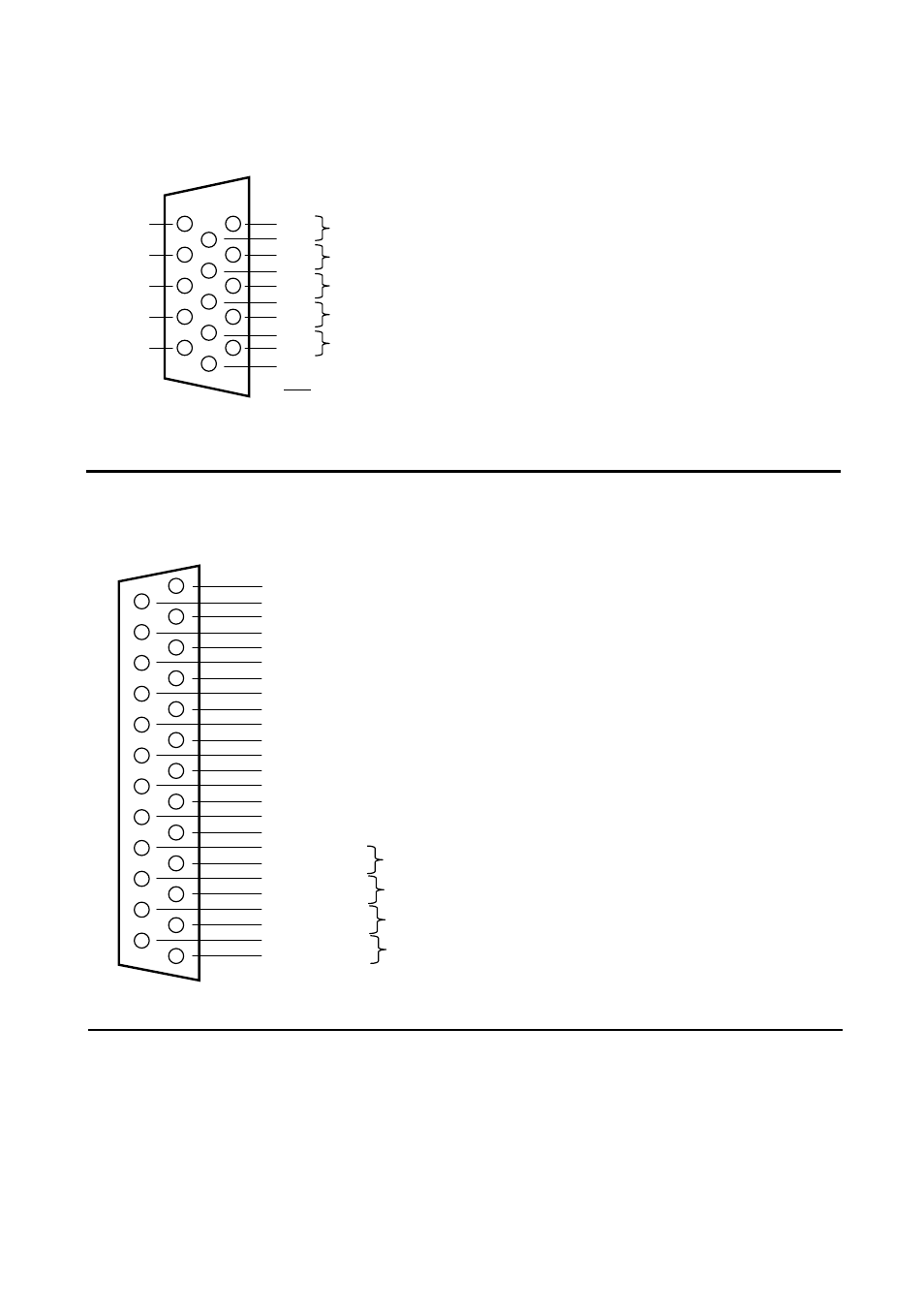

Condensed 15 pin Sub-D female Mating cable connector: condensed 15 pin Sub-D male
RET 1: Hi
Low
Gnd
RET 2: Hi Low
Gnd
RET 3: Hi Low
Gnd
RET 4: Hi Low
Gnd
VU Left Right
Gnd
Note: VU-Meter output is unbalanced. Reading "0" = 0dBu
DIGITAL AES/EBU Outputs ( option )
25 pin Sub-D female
Mating cable connector: 25 pin Sub-D male
19 => ground AES 4
6 => ground AES 3
18 => ground AES 2
5 => ground AES 1
17 => Low - AES/EBU 4 (Main outputs 1&2 )
4 => High +
16 => Low - AES/EBU 3 (Direct out of channels 5 & 6 or Main output 3&4)
3 => High +
15 => Low - AES/EBU 2 (Direct out of channels 3 & 4 )
2 => High +
14=> Low - AES/EBU 1 (Direct out of channels 1 & 2 )
1 => High +
6
1
11
10
5 15
Gnd
RET 1
RET 2
RET 3
RET 4
VU- Meter Out
Hi + Low -
