INSTALLATION INSTUCTIONS
A
Capacity can be no less than 17 gal. ( 64 L) per minute.
The top of the standpipe must be at least 60cm high and
no higher than 100cm from the bottom of the washer.
Floor drain system( view D) .The floor drain system requires
a siphon break that may be purchased separately.
See“Tools and Parts”. The siphon break must be a minimum
of 28" ( 710 mm) from the bottom of the washer.
Additional hoses might be needed.
Min 60
Max 100
B
Laundry tub drain system (view C)
The laundry tub needs a minimum 20 gal. (76 L)
capacity. The top of the laundry tub must be
at least 60cm above the foor.
M
in
.6
0
cm
M
a
x.
1
0
0
cm
C
28" min.
(710 mm)
D

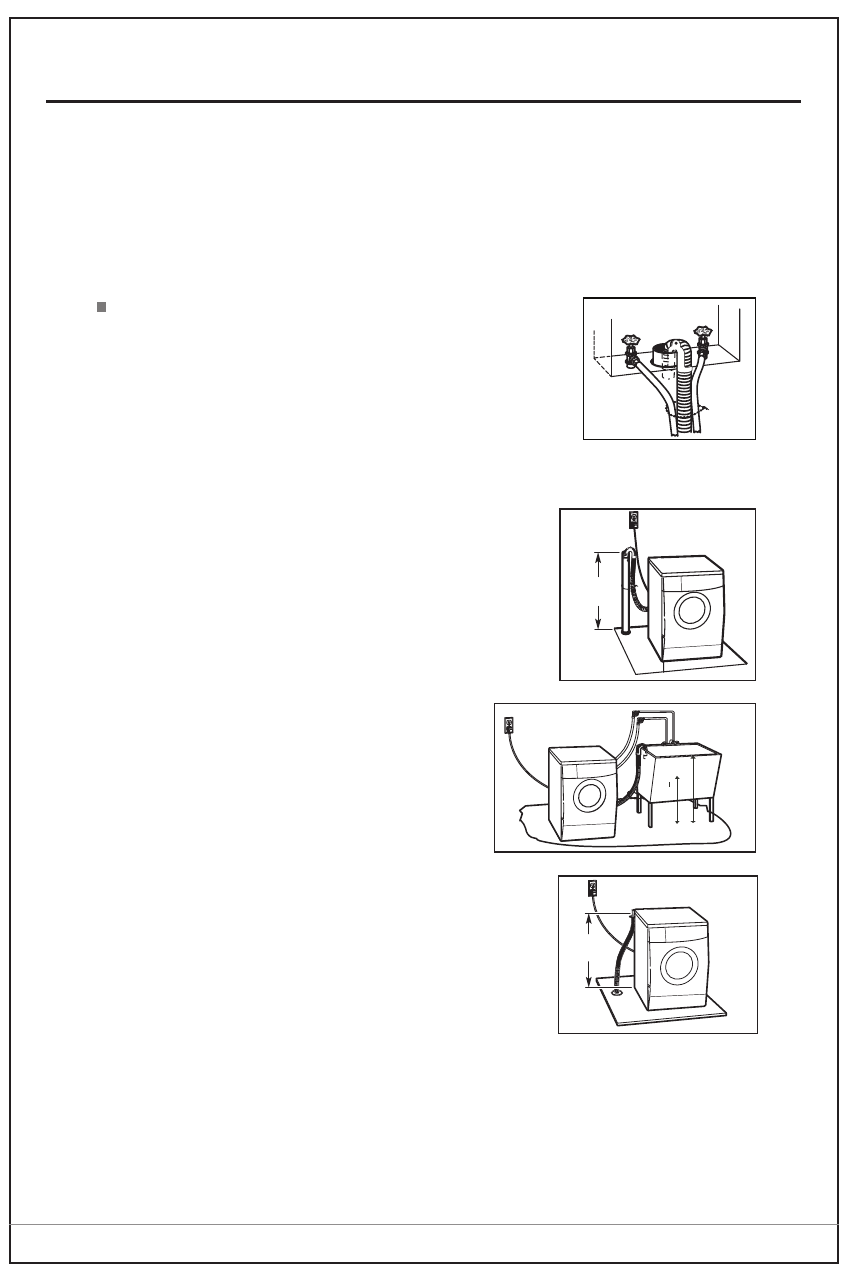

Drain System Options
Standpipe drain system - wall or foor ( views A & B)
The standpipe drain requires a minimum diameter
standpipe of 2" (50 mm).The minimum carry- away
Note: after connection, if there is any leakage with hose, then repeat the steps to connect inlet
pipe. The most common type of tap shall be used to supply water. If tap is square or too big,
then standard tap shall be changed.
