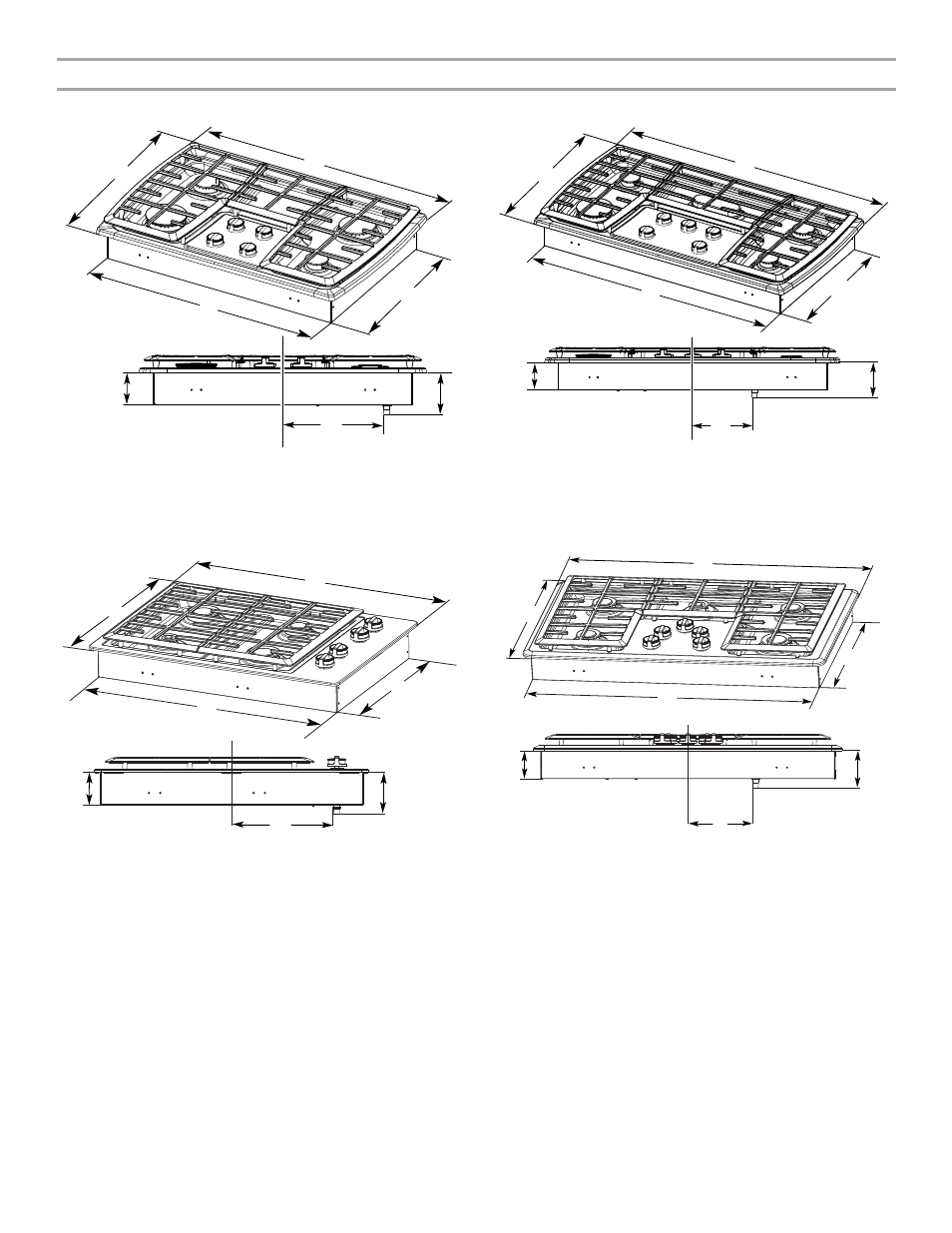

Product Dimensions
30" (76.2 cm) Model (G7CG3064)
30" (76.2 cm) Model (W5CG3024)
36" (91.4 cm) Model (G7CG3665)
36" (91.4 cm) Model (W5CG3625)
A. 20
¹⁵⁄₁₆
" (53.2 cm)
B. 31 ⁷⁄₁₆ " (79.8 cm)
C. 18
²⁹⁄₃₂
" (48.0 cm)
D. 28½" (72.4 cm)
E. 3½" (8.9 cm)
F. 4 ¹⁹⁄₃₂ " (11.7 cm)
G. 11" (27.9 cm)
A. 21½" (54.6 cm)
B. 29½" (75.0 cm)
C. 18
²⁹⁄₃₂
" (48.0 cm)
D. 28½" (72.4 cm)
E. 3
²¹⁄₃₂
" (9.3 cm)
F. 4 ¹⁹⁄₃₂ " (11.6 cm)
G. 10
⁷⁄₈
" (27.6 cm)
G
F
A
E
C
D
B
E
B
G
F
A
C
D
A. 20
¹⁵⁄₁₆
" (53.2 cm)
B. 37 ¹⁹⁄₃₂ " (95.4 cm)
C. 18
²⁹⁄₃₂
" (48.0 cm)
D. 34½" (87.6 cm)
E. 3½" (8.9 cm)
F. 4 ¹⁹⁄₃₂ " (11.6 cm)
G. 7½" (19.1 cm)
A. 21" (53.3 cm)
B. 36" (91.4 cm)
C. 18
²⁹⁄₃₂
" (48.0 cm)
D. 34½" (87.6 cm)
E. 3
³⁄₈
" (8.6 cm)
F. 4 ¹¹⁄₃₂ " (11.0 cm)
G. 7½" (19.1 cm)
G
F
C
E
B
D
A
B
G
F
D
A
E
C
