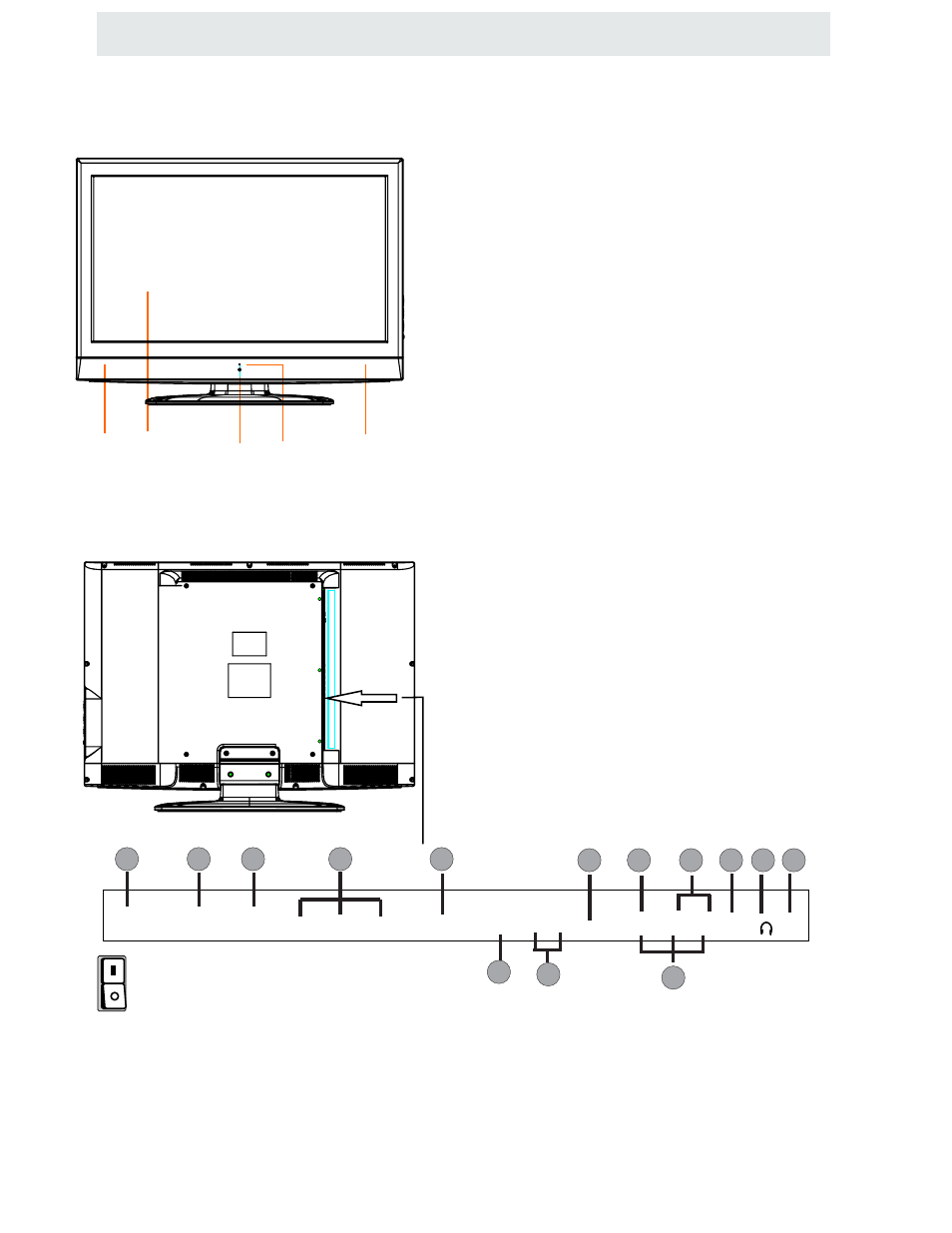

CONTROL REFERENCE GUIDE
BACK VIEW
FRONT VIEW
1.Color Screen
2.Remote Sensor
Do not block this sensor or the
remote control will not work.
3.Standby Indicator
Indicates whether the unit is ON
or in STANDBY (OFF) mode.
Light in red: The unit is in STANDBY.
Light in
blue :The unit is turned ON.
4. Speakers
1 2 4 5 12
1.ON/OFF Switch
2.AC100~240V 50/60Hz
3.USB IN Jack
4.HDMI IN Jack
5.VGA IN Jack
6.VIDEO1 IN Jack
7.AUDIO IN Jack ( CVBS1/S-VIDEO/YPbPr)
8.S-VIDEO IN Jack
9.VIDEO2 IN Jack
10.AUDIO IN Jack(CVBS2)
11.PC Audio IN Jack
12.Earphone out Jack
13.TV ANTENNA Terminal
14.Y/Pb/Pr IN Jacks
1
2 3 4 4
VIDEO1 R1 L1 S-VIDEO
R2 L2 VIDEO2
Y Pb Pr
PC
AUDIO RF VGA HDMI1 HDMI2 HDMI3 USB ON / OFF
3
6 7
8 9 10 11 13
14
After you connect the power cord into the power socket, make sure the power cord is fully inserted into the unit. Then press the
power ON/OFF switch to “ON” position as shown left.
AC100~240V
6
