SMART FADE™ Chapter 5 : OPERATING MODE
PAGE 15
5-2. THE SCALER MODE (NOT SEAMLESS)
• SETTINGS
c We recommend to reset the SMART FADE ™ to all of its default values, with the LCD menu # 6-5, before
proceeding.
d Select the output Sync. type which corresponds to your display device (LCD menu # 2-1).
e Set reference sync = no comput with the LCD menu # 2-2.
f Set output rate = internal rate with the LCD menu # 2-4.
g Select an output format with the LCD menu # 2-3.
NOTE: For fixed pixels display devices (DMD, LCD, PLASMA…), always select the output format
corresponding to the native resolution of your display device. Thus, the display device will not have to
scale the image and the result will be better.
• SWITCHING OPERATION (NOT SEAMLESS)

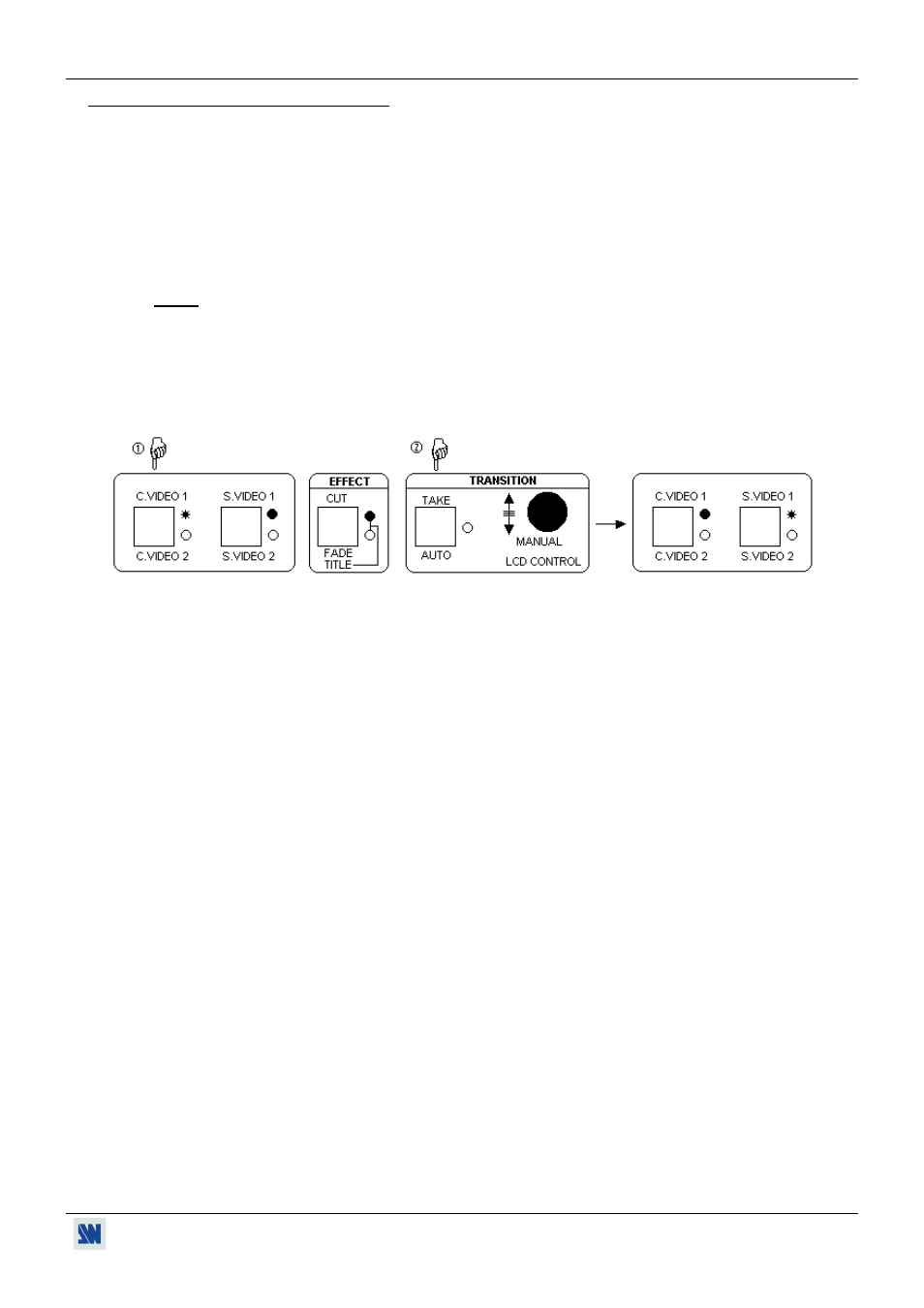

c Pre-select a video input (for example C.VIDEO 1).
d Press the TAKE key to display it onto the output. The switching operates with a black transition.
• DISPLAY DEVICE ADJUSTMENTS
c Pre-select a video input and display it onto the output.
d Adjust directly the display device itself, using its position and size control parameters.
• IMAGE ADJUSTMENTS: Identical as the SEAMLESS MODE, see chapter 5-1.
• AUDIO ADJUSTMENT: Identical as the SEAMLESS MODE, see chapter 5-1.
