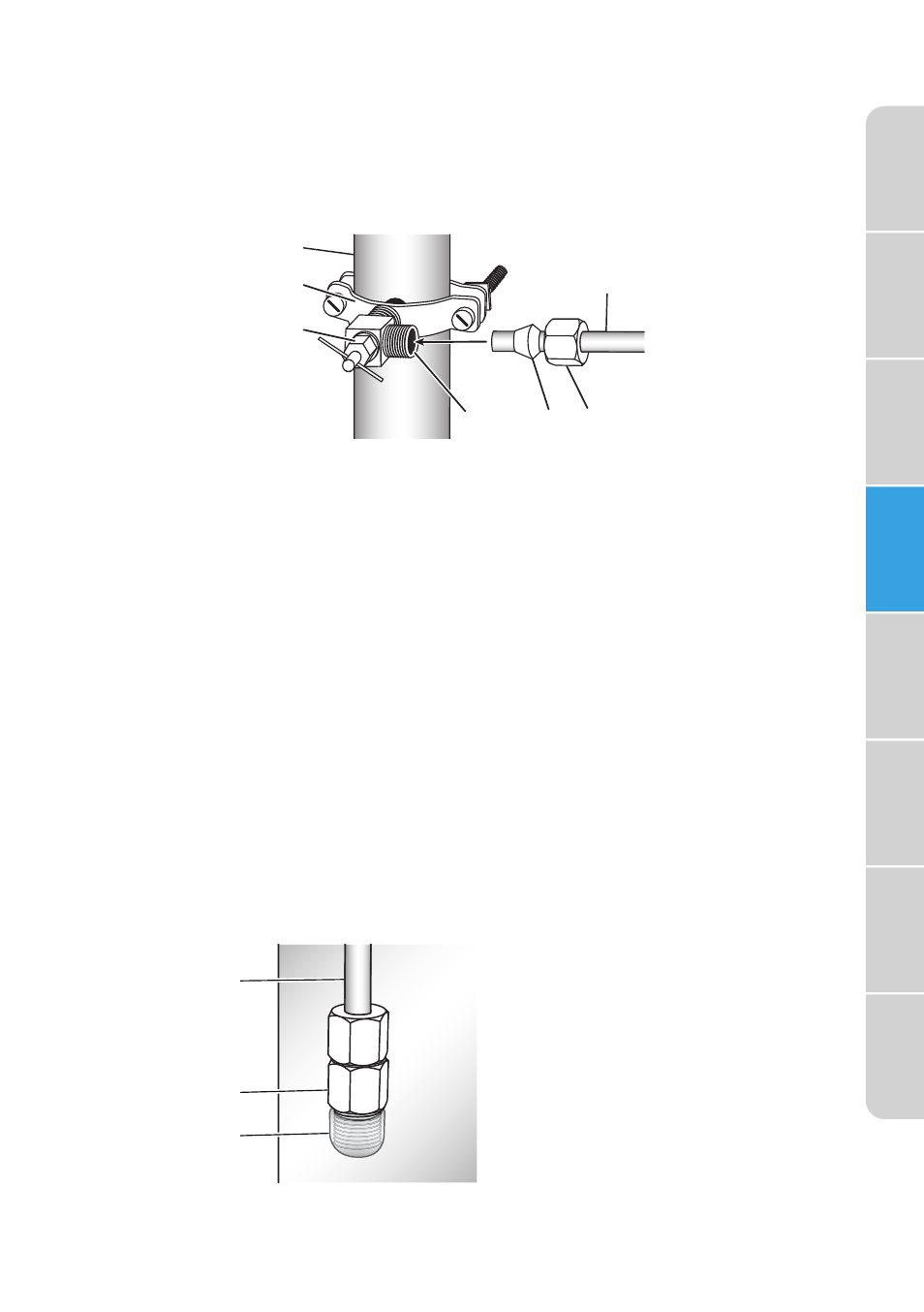

3. Using a cordless drill, drill a 1/4 " (6.35 mm) hole in the cold water pipe.
4. Fasten the shutoff valve to the cold water pipe with the pipe clamp.
Be sure the outlet end is solidly in the
1/4
" (6.35 mm) drilled hole in the
water pipe and that the washer is under the pipe clamp.
5. Tighten the packing nut. Tighten the pipe clamp screws slowly and
evenly so the washer makes a watertight seal. Do not overtighten.
a
g b
c
d e f
a
Household supply line
b
Saddle valve
c
Packing nut
d
Shutoff valve
e
Ferrule (sleeve)
f
Compression nut
g 1/4
" Water line
6. Slip the compression sleeve and compression nut on the copper tubing
as shown. Insert the end of the tubing into the outlet end squarely as
far as it will go. Screw compression nut onto outlet end with adjustable
wrench. Do not overtighten or you may crush the water line.
7. Place the free end of the tubing in a container or sink, and then turn
ON the main water supply. Flush the tubing until water is clear. Turn
OFF the shutoff valve on the water pipe.
Connect to Refrigerator
1. Unplug refrigerator or disconnect power.
2. Close shut-off valve.
3. Thread a brass compression nut and ferrule (sleeve) onto the free end
of the water line.
4. Remove the plastic cap from the end of the refrigerator water line.
c
a
b
a
Refrigerator
water line
b
Compression
nut
c
Plastic cap
