Caractéristiques techniques

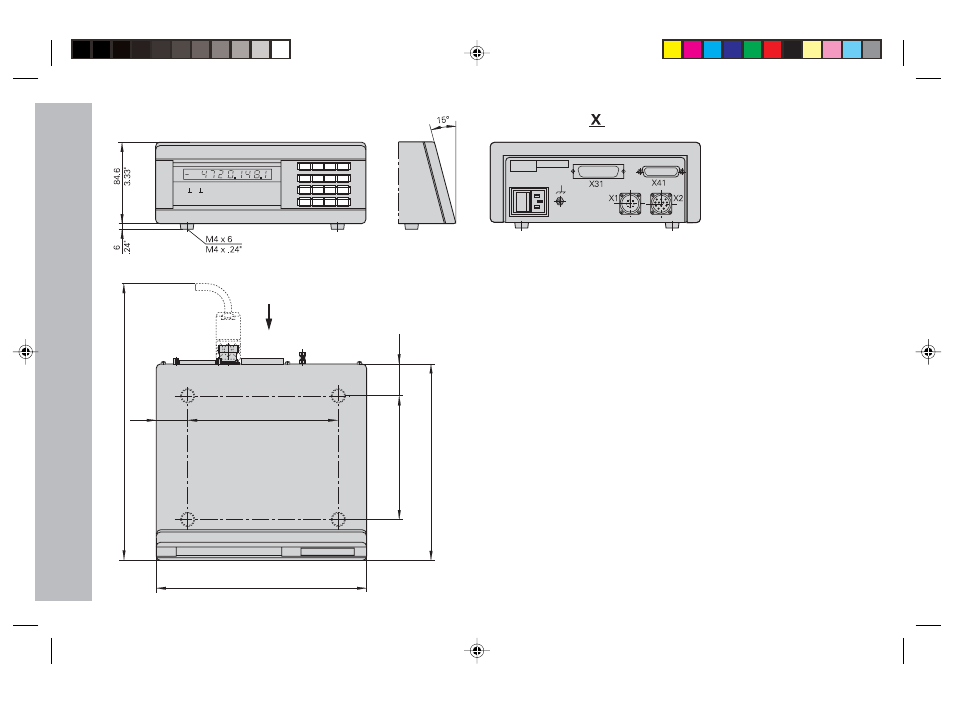

ND 281 B: Dimensions en mm/pouces
35
1.43"
172 ± 0.2
6.77" ± .008"
33.5
1.37"
224 8.82"
140
± 0.2
5.51"
± .008"
239
9.41"
325 12.8"
X
REF 1 SET START PRINT 2 inch
< = > MIN ACTL MAX DIFF
