CASE OF THE MIXED VERSIONS WITH FAN

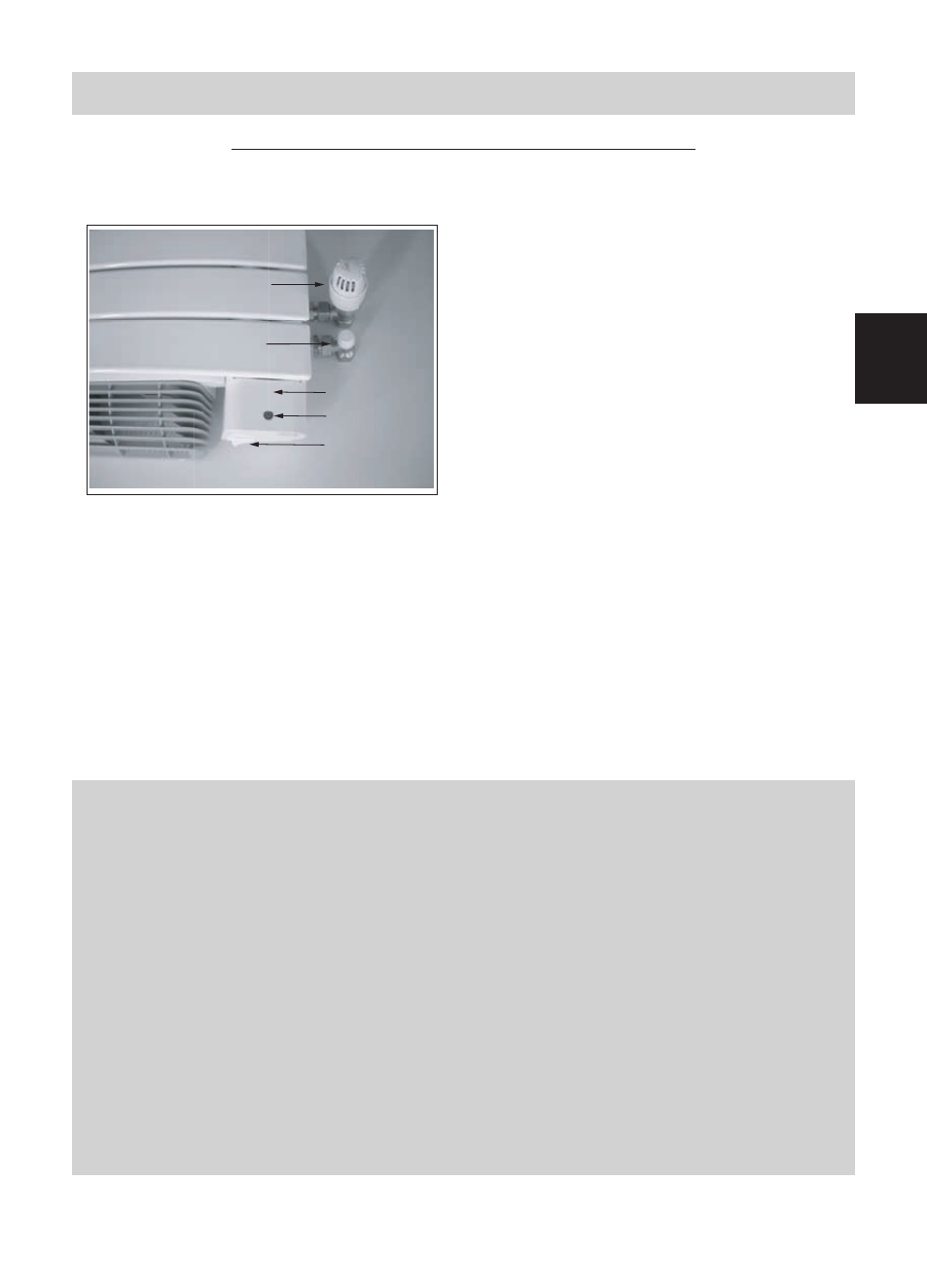

1) Description of the lower part of the device.
2) Use on electricity SUMMER SETTING: the central heating circuit is not working.
A switch is on I.The B indicator light is ON, the heating resistor incorporated in the device is sup-
plied.The supply tap C must be closed. The boiler return tap D must remain open.
3) Use on central heating WINTER SETTING: the central heating circuit is working.
A switch is on O.The B indicator light is OFF, the heating resistor incorporated in the device is not
supplied.The supply tap C must be open. The boiler return tap D must remain open.
WARNING
Using the bleeder, make sure that the device is correctly filled. If, when you open the
bleeder, the water does not flow regularly, please contact your fitter.
It is forbidden to leave A switch on l when the supply tap C is open.This abnormal use
causes cancellation of the warranty.
The use of this device without water would lead to the definitive deterioration of the
resistor.This incident would definitely require its replacement, which is not covered by
the Maker's guarantee.
The boiler return tap D must obligatorily remain open, even in the case of the SUMMER
SETTING in order to allow expansion of the fluid in the circuit so as to avoid any damage
to the device.
A Switch to control the heating resistor incor-
porated in the device.
B Indicator light to check the operating status
of your device.
C Supply tap to allow inlet of hot water from
the central heating. This can be thermostati-
cally controlled or not depending on your
choice.
D Boiler return tap to allow the hot water to
leave the central heating.
Service pressure must not exceed 4 bar. E Lower cover.
D
C
A
B
E
