4

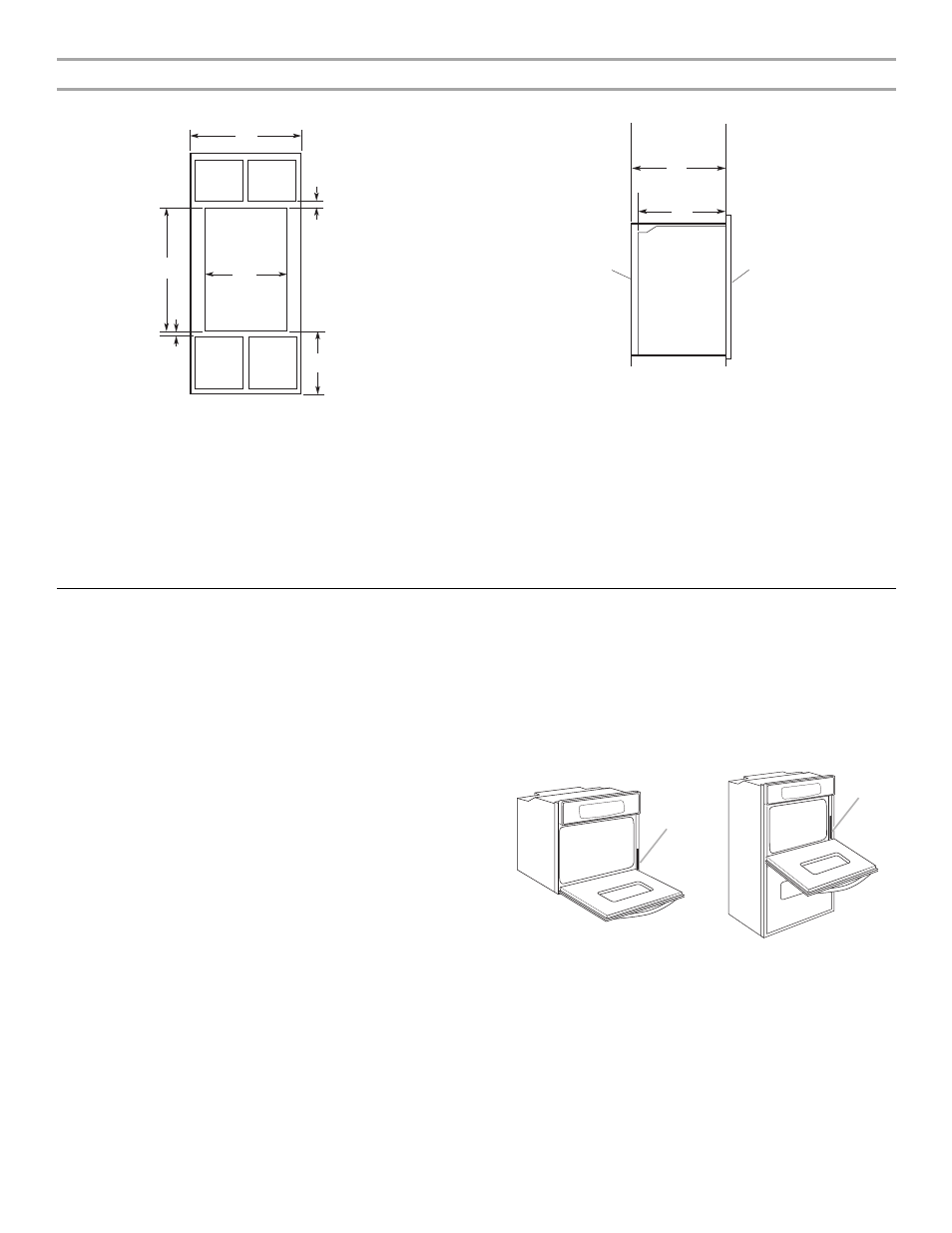

Cabinet Dimensions - Double Ovens
Double Ovens Installed in Cabinet Cabinet Side View - Single or Double Oven
Electrical Requirements
If codes permit and a separate ground wire is used, it is
recommended that a qualified electrical installer determine that
the ground path and the wire gauge are in accordance with local
codes.
Check with a qualified electrical installer if you are not sure the
oven is properly grounded.
This oven must be connected to a grounded metal, permanent
wiring system.
Be sure that the electrical connection and wire size are adequate
and in conformance with the National Electrical Code, ANSI/NFPA
70-latest edition or CSA Standards C22.1-94, Canadian Electrical
Code, Part 1 and C22.2 No. O-M91-latest edition, and all local
codes and ordinances.
A copy of the above code standards can be obtained from:
National Fire Protection Association
One Batterymarch Park
Quincy, MA 02269
CSA International
8501 East Pleasant Valley Road
Cleveland, OH 44131-5575
Electrical Connection
To properly install your oven, you must determine the type of
electrical connection you will be using and follow the instructions
provided for it here.
■ Oven must be connected to the proper electrical voltage and
frequency as specified on the model/serial number rating
plate. The model/serial number rating plate is located at the
bottom of the right-hand mounting rail. See the following
illustrations.
27" (68.6 cm) models
A. 27" (68.6 cm) min. cabinet
width
B. 1" (2.5 cm) top of cutout to
bottom of upper cabinet door
C. 14 ³⁄₄" (37.5 cm) bottom of
cutout to floor
D. 25 ¹⁄₂" (64.8 cm) cutout width
E. 1 ¹⁄₂" (3.8 cm) min. bottom of
cutout to top of cabinet door
F. 49 ³⁄₄" (126.4 cm) min. cutout
height
30" (76.2 cm) models
A. 30" (76.2 cm) min. cabinet
width
B. 1" (2.5 cm) top of cutout to
bottom of upper cabinet door
C. 14 ³⁄₄" (37.5 cm) bottom of
cutout to floor
D. 28 ¹⁄₂" (72.4 cm) cutout width
E. 1 ¹⁄₂" (3.8 cm) min. bottom of
cutout to top of cabinet door
F. 49 ³⁄₄" (126.4 cm) min. cutout
height
A
B
C
D
E
F
A. 23 ¹⁄₄" (59.1 cm) min. cutout depth
B. 23" (58.4 cm) recessed oven depth
C. Oven front
D. Recessed oven
E. Cabinet
A
B
C
D
E
Single Oven
A. Model/serial number plate Double Oven
A. Model/serial number plate
A
A
