Maytag MEW7530WDW Installation - Manuel (Page 3)

3

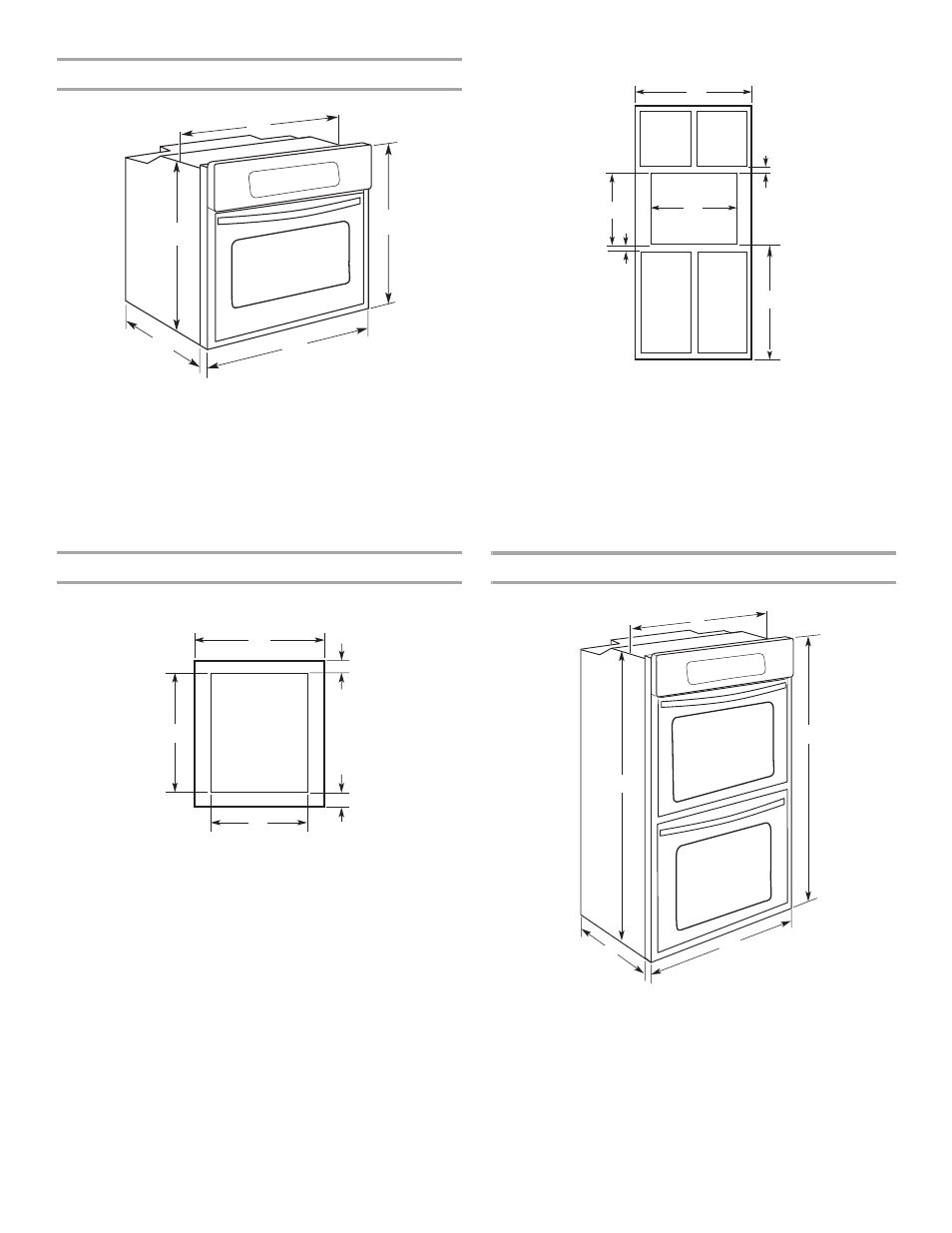

Product Dimensions - Single Ovens
Cabinet Dimensions - Single Ovens
Single Oven Undercounter (without cooktop installed above)
Single Ovens Installed in Cabinet
Product Dimensions - Double Ovens
27" (68.6 cm) models
A. 25 ⁵⁄₁₆" (64.3 cm) max. recessed
width
B. 29" (73.7 cm) max. overall
height
C. 26 ³⁄₄" (67.9 cm) overall width
D. 23" (58.4 cm) max. recessed
depth
E. 27 ¹⁄₂" (69.9 cm) recessed
height
30" (76.2 cm) models
A. 28 ⁵⁄₁₆" (71.9 cm) max. recessed
width
B. 29" (73.7 cm) max. overall
height
C. 29 ³⁄₄" (75.6 cm) overall width
D. 23" (58.4 cm) max. recessed
depth
E. 27 ¹⁄₂" (69.9 cm) recessed
height
27" (68.6 cm) models
A. 27" (68.6 cm) min. cabinet
width
B. 1 ¹⁄₂" (3.8 cm) min. top of
cutout to underside of
countertop
C. 5 ¹⁄₄" (13.3 cm) bottom of
cutout to floor
D. 25 ¹⁄₂" (64.8 cm) cutout width
E. 27 ³⁄₄" (70.5 cm) min. cutout
height
30" (76.2 cm) models
A. 30" (76.2 cm) min. cabinet
width
B. 1 ¹⁄₂" (3.8 cm) min. top of
cutout to underside of
countertop
C. 5 ¹⁄₄" (13.3 cm) bottom of
cutout to floor
D. 28 ¹⁄₂" (72.4 cm) cutout width
E. 27 ³⁄₄" (70.5 cm) min. cutout
height
A
B
C D
E
A
B
C
D
E
27" (68.6 cm) models
A. 27" (68.6 cm) min. cabinet
width
B. 1" (2.5 cm) top of cutout to
bottom of upper cabinet door
C. 32" (81.3 cm) bottom of cutout
to floor
D. 25 ¹⁄₂" (64.8 cm) cutout width
E. 1 ¹⁄₂" (3.8 cm) min. bottom of
cutout to top of cabinet door
F. 27 ³⁄₄" (70.5 cm) cutout height
30" (76.2 cm) models
A. 30" (76.2 cm) min. cabinet
width
B. 1" (2.5 cm) top of cutout to
bottom of upper cabinet door
C. 32" (81.3 cm) bottom of
cutout to floor
D. 28 ¹⁄₂" (72.4 cm) cutout width
E. 1 ¹⁄₂" (3.8 cm) min. bottom of
cutout to top of cabinet door
F. 27 ³⁄₄" (70.5 cm) cutout height
27" (68.6 cm) models
A. 25 ⁵⁄₁₆" (64.3 cm) max.
recessed width
B. 51" (129.5 cm) max. overall
height
C. 26 ³⁄₄" (67.9 cm) overall width
D. 23" (58.4 cm) max. recessed
depth
E. 49 ⁹⁄₁₆" (125.9 cm) recessed
height
30" (76.2 cm) models
A. 28 ⁵⁄₁₆" (71.9 cm) max. recessed
width
B. 51" (129.5 cm) max. overall
height
C. 29 ³⁄₄" (75.6 cm) overall width
D. 23" (58.4 cm) max. recessed
depth
E. 49 ⁹⁄₁₆" (125.9 cm) recessed
height
A
B
D
E
F
C
A
B
D
E
C
