B A S E F E E T
Legs are packed in carton box. Legs should be installed near to where the appliance is to be used, as they are not
secure for long transit. After unpacking the range, raise it about a foot to remove the bottom shipping skid. Keep the unit
raised to permit legs to be screwed into our couplings and lower it gently to keep any undue strain from the legs and
internal mounting hardware. It is strongly recommended that a pallet or lift jack be used rather than tilting.

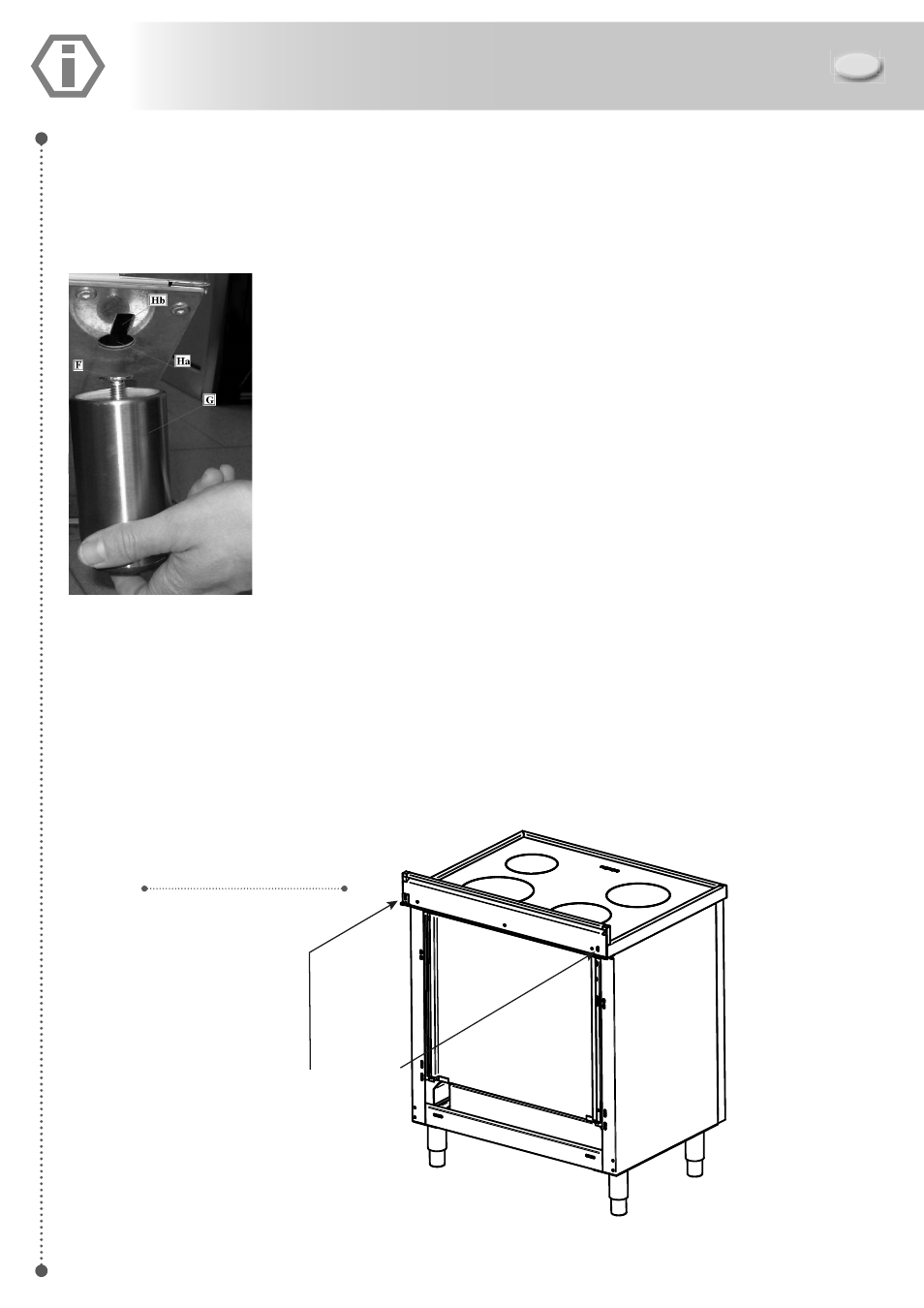

F i g . 1
1) Screw partially bolt (F)
into the base feet (G).
2) Insert base feet (G) into
the hole (Ha), move to the
hole (Hb) and screw com-
pletely bolt (F).
B A C K G U A R D I N S TA L L AT I O N I N S T R U C T I O N
P l e a s e f o l l o w t h e f o l l o w i n g i n s t a l l a t i o n i n s t r u c t i o n s i n s e q u e n c e :
1 . i n s t a l l b a s e f e e t ( s e e p r o p e r i n s t r u c t i o n F i g . 2 )
2 . P l a c e t h e b a c k g u a r d a n d f i x i t f r o m b o t t o m s i d e w i t h t h e t w o s c r e w a s s h o w n i n f i g u r e b e l o w.
F i g u r e 2
Two bottom screw
to fix backguard
