Fusion EN-1502 - Manuel (Page 6)

6 6
5
15
EN-1502
EN-3001
EN-3004 5
5 6
7
7
7
16
16
16
8
8 9
9
9
10
10
11
8 7
10
12 13
13
13
14
14
14
15
15
15

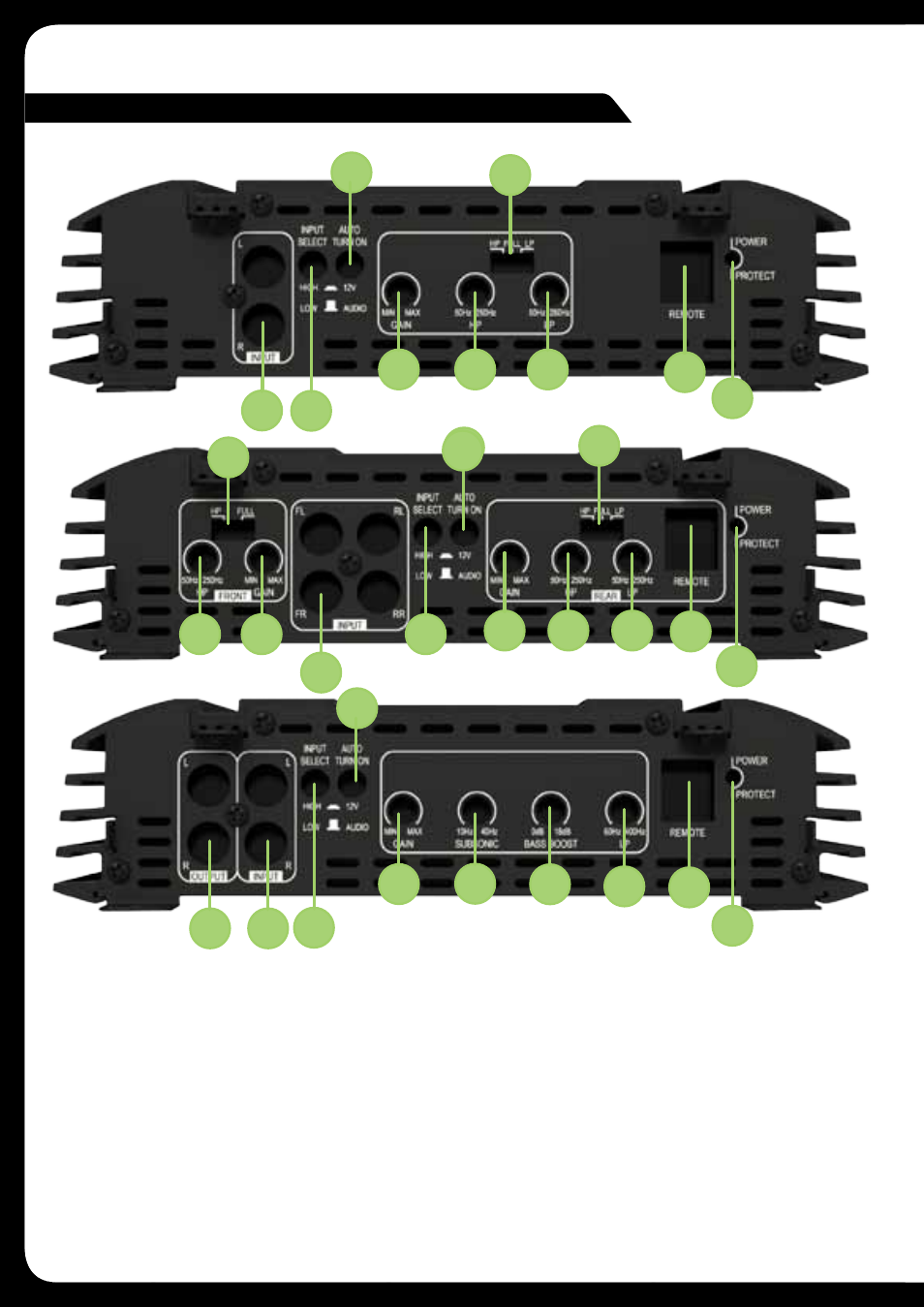

AMPLIFIER CONTROLS
5. LOW LEVEL RCA INPUTS FRONT-REAR-SUBWOOFER
Choose the correct length RCA cables to connect the RCA outputs of the source/head unit,
to the input connectors of the amplifier. Run the RCA cables on the opposite side of the vehicle
to the power cable and vehicle wiring loom. Avoid the electric fan motor and wiring. Ensure you
follow the correct balance. (L Left = White or Black. R Right = Red).
6. LOW LEVEL RCA OUTPUTS (EN-3001 ONLY)
Use these RCA connectors to connect to a secondary amplifier. This output is a
pass-thru connection from the RCA input connectors so that the signal level and frequency
response is the same as the original input signal.
