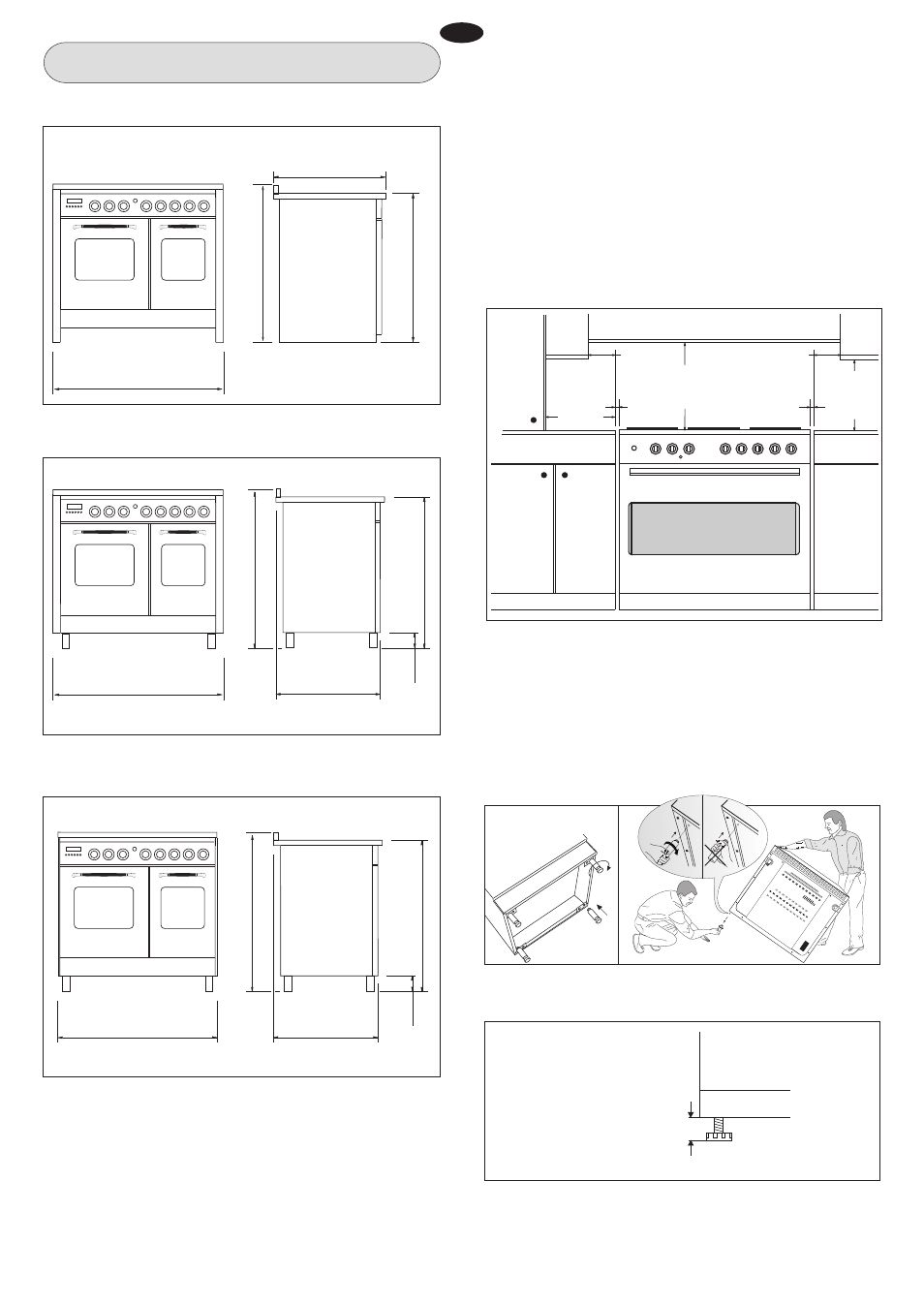

Caple CR9202 - Manuel (Page 7)

min. 20mm
min.100 mm
min. 50 mm min. 50 mm
min.
650 mm
min.
400 mm
min. 20mm
REG. MAX 15mm
OK NO
WARNINGS
The technical data are indicated on the data nameplate placed
on the inside of the front appliance drawer .
The adjustment conditions are stated on the label applied on the
packaging and on the appliance.
Do not use the oven door handle to move the appliance, such as
to remove it from the packaging.
The appliance is in class 1 or class 2 subclass 1.
INSTALLATION
IMPORTANT: The coating of the furniture must be able to withstand
high temperatures (min. 90°C).
If the appliance is to be installed near units, leave the minimum
gaps specified in the table below.
The cooker is fitted with 4 legs for an eventual alignment in height
with the furniture ( fig. 9 A or 9 B according to the models).
895 895
1000
600
900 960
OVERALL DIMENSIONS (mod. 108)
1000
OVERALL DIMENSIONS (mod. 108)
935
600
h*
875
h* = Adjustment 110 / 160
OVERALL DIMENSIONS (mod. 192)
895
h* = Adjustment 110 / 160
935
600
h*
875
h* = Adjustment 110 / 160
INSTRUCTIONS DESTINED TO THE USER
Fig. 9 A
Fig. 9 B
8
GB
