GREASING OF TAPS
If a tap becomes hard to be turned, grease it using a specific
grease withstanding high temperatures. Act as follows: switch
the appliance off, and close the gas tap open the work-top and
disassemble also the control panel as described on the previous
paragraph. Unscrew the two fixing screws from the burner body
(see picture 21) and remove the cone.

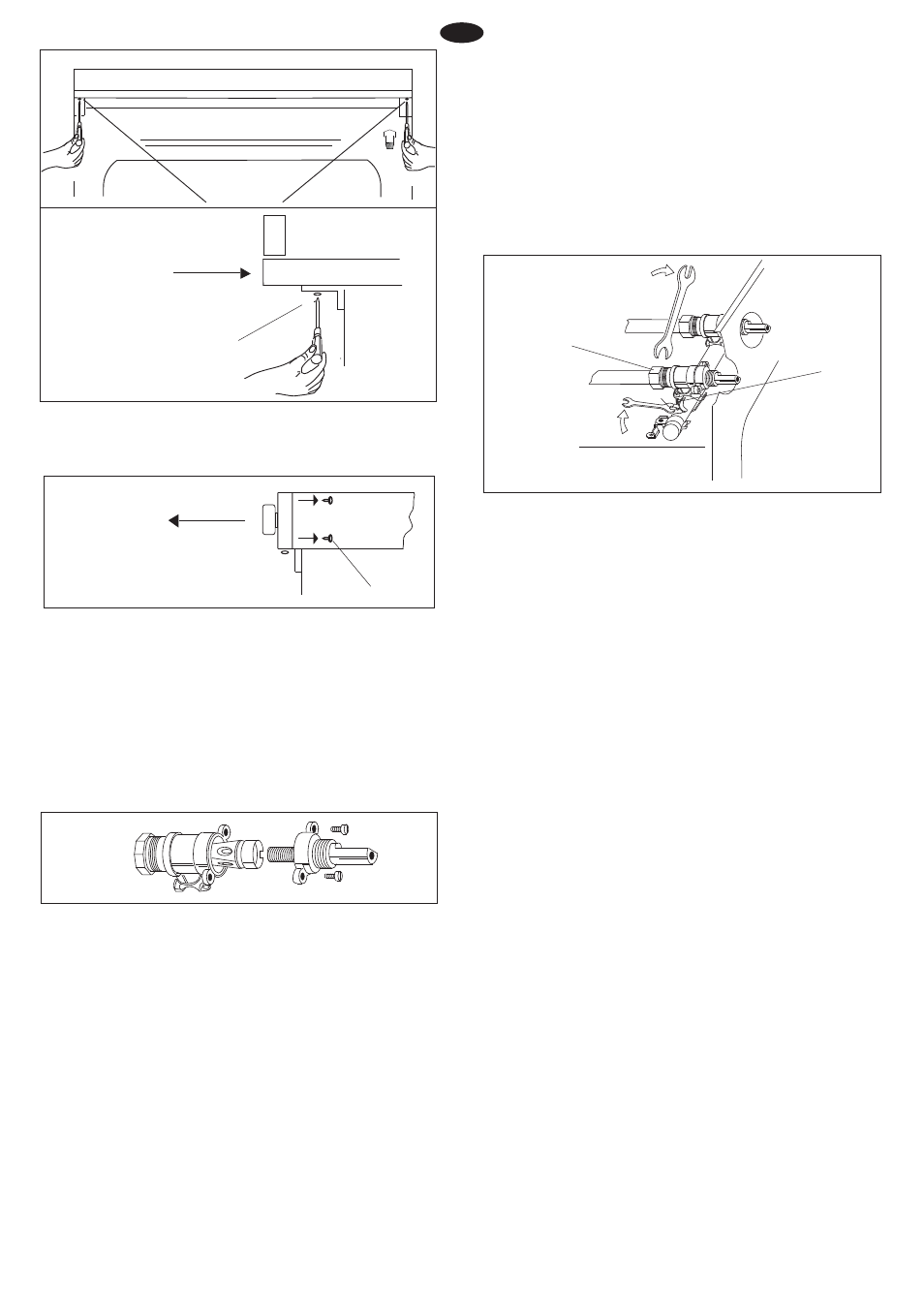

Fig. 21
Clean the cone and its slot by means of a cloth soaked with diluent.
Slightly grease the cone with the relevant grease, put it in its slot,
and turn it some times. Remove the cone again, remove the
exceeding grease making sure the gas entries are not obstructed
by grease residuals. Assemble everything carefully in the opposite
direction check the connection seal by means of soapy water.
TAPS REPLACEMENT
Act as follows: switch the appliance off, and close the general tap
open the work-top and disassemble also the control panel as
described on the previous paragraph. Unscrew screw nut D of the
gas tube supplying the burner. Unscrew screw V fixing the tap to
the bridle and remove it (see picture 22).
Note: Every time the tap is replaced, it is necessary to replace the
seal gasket too check the connection seal by means of soapy
water (see picture 22).
Fig. 22
D
V
Fig. 20
B
TO RAISE AND TO
PUSH IN AHEAD
Fig. 19
- To disassemble the control panel, unscrew the 4 internal screws
(B) fixing the control panel to the oven face (fig. 20).
