OCTO VUE / QUATTRO VUE Chapter 3 : OPERATING MODE (continued)
PAGE 21
3-2. SWITCHING OPERATIONS
-The device allow switching between its inputs with 4 different effects: CUT, FADE*, FADE COLOR and CLEAN CUT.
The CUT effect allows switching seamlessly between 2 sources. The FADE effect allows fading out the displayed source
while another source is fading in. The FADE COLOR effect allows switching between 2 sources with a fading to the color
of you choice. The CLEAN CUT allows a clean switching thanks to a fast freeze of the displayed source.
-The devices can insert another source in a window (PIP effect).
-The OVX831 & OVF831 can also insert text onto the displayed image (TITLE effect).
IMPORTANT: The CUT, FADE*, PIP and TITLE* effects are active in SEAMLESS mode and only between the
reference computer input and the other inputs.
• CUT (SEAMLESS):
Pre-select the reference computer input with the INPUT SELECTION button (The LED is blinking).
Select an EFFECT PRESET, assign it the CUT effect. Then press TAKE. The reference computer input is also
displayed onto the main output.
Pre-select another input then press on TAKE. The transition operates seamlessly.
• FADE*:
Pre-select the reference computer input with the INPUT SELECTION button (The LED is blinking).
Select an EFFECT PRESET, assign it the FADE effect. Then press TAKE. The reference computer input is also
displayed onto the main output.
Pre-select another input then press on TAKE. The transition operates with a fading between the two sources.
• TITLE*:
The TITLE effect allows to insert text onto an another source (video or computer). This effect is only active between
the reference computer input and the others inputs.
Create the text to be display with the computer connected to the reference input, using software such as Power
Point®: the text should be bright (yellow, white...) on a black background.

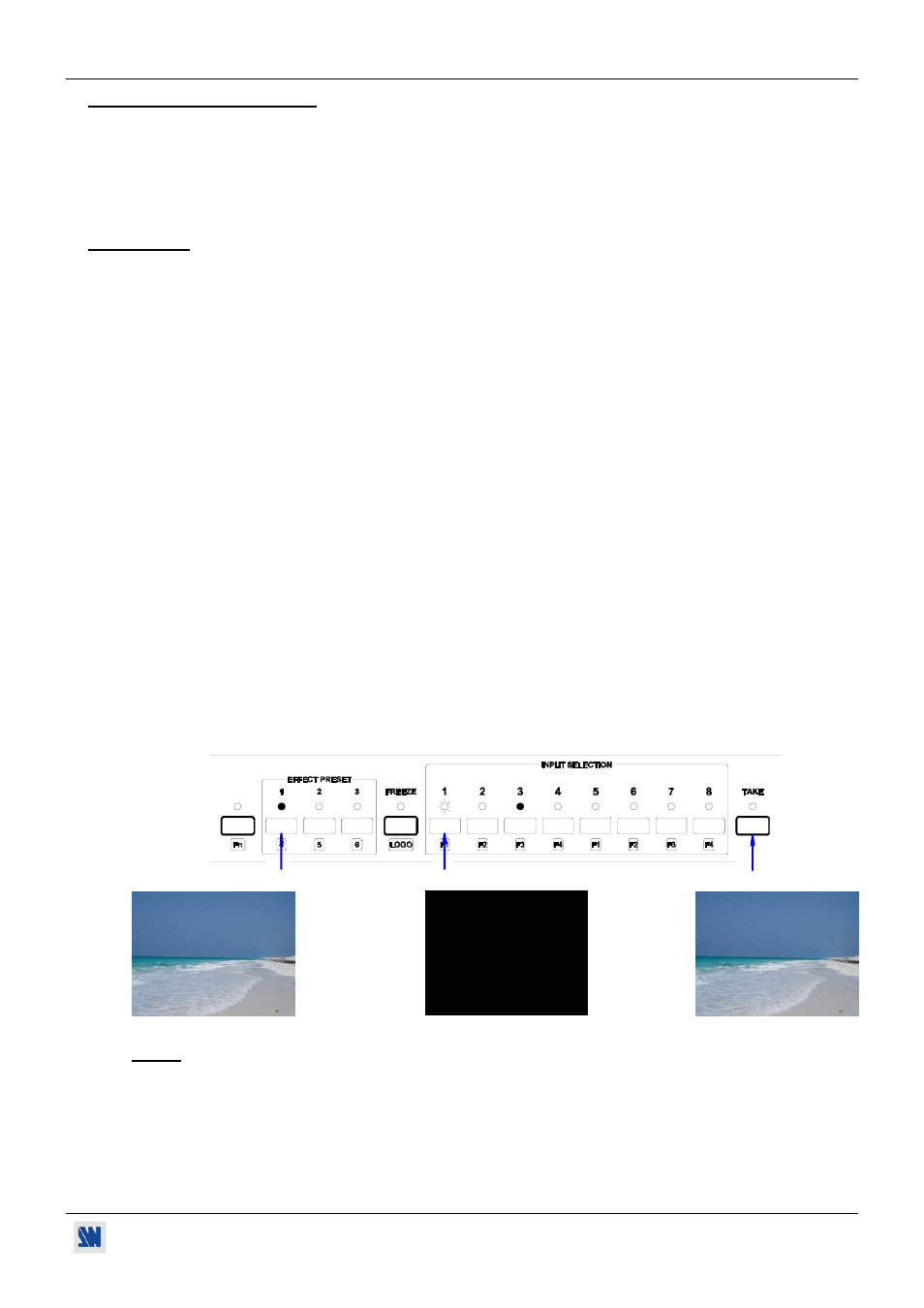

Display on the MAIN output the source to titling (Input #3 in the example below).
Pre-select the reference computer input (Input #1 in the example below). The LED is blinking.
Select an EFFECT PRESET, then assign it the TITLE effect.
Then, press TAKE. The text appears onto the displayed image.
4 3 5
Main source (Input #3) Title source (Input #1) Displayed image (MAIN)
NOTE:
• For a better readability, you can display a shadow bar onto your text (EFFECT > title > intensity).
• To display OFF the text, press on TAKE.
• To switch between sources without displaying OFF the text, press on the button of the needed source and
press TAKE. The transition operates with a fade color.
* OVX831, OVF831 & QVX421.
