en-us Installation procedure
16
Installation procedure 9 Installation procedure
Installation procedure

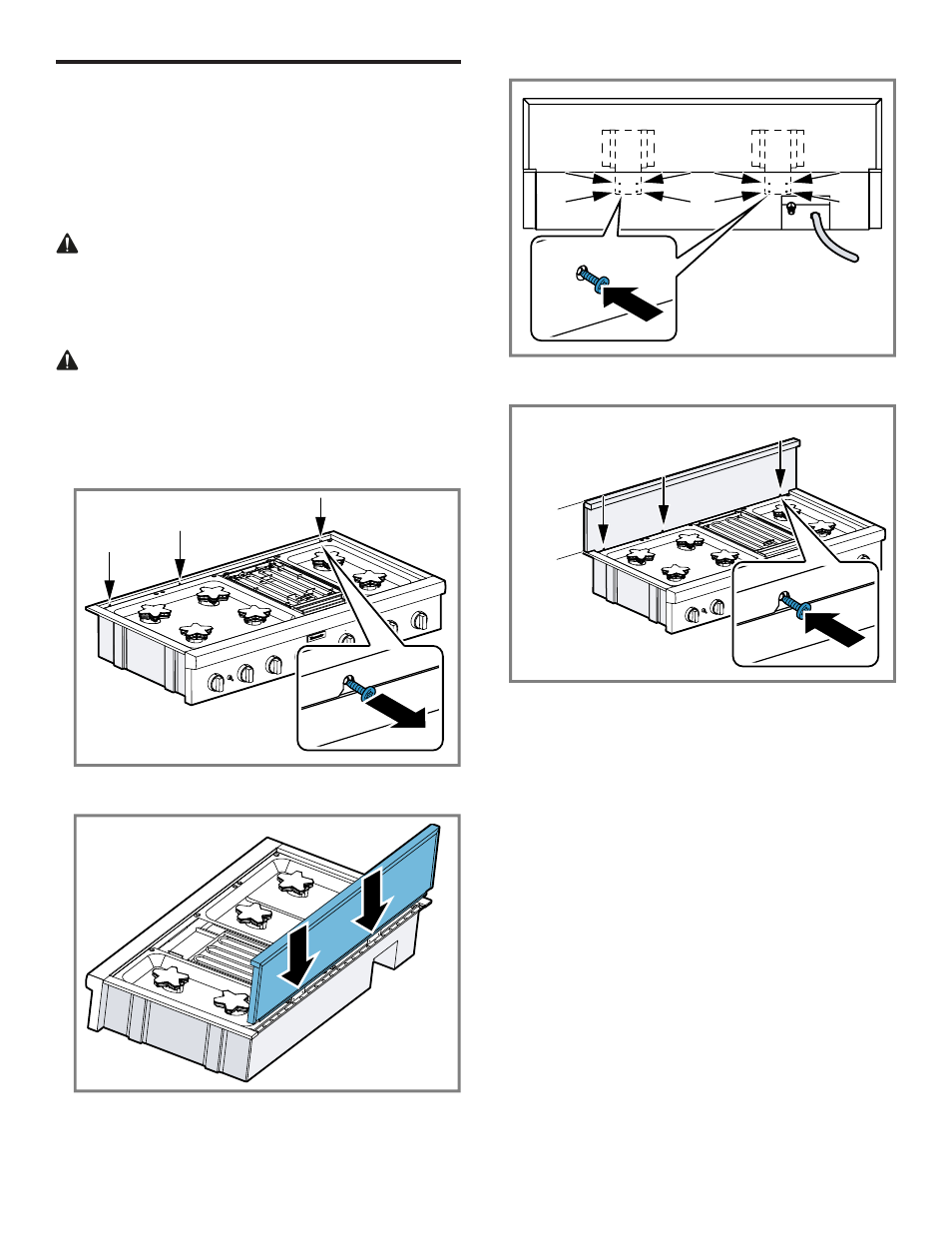

9.1 Installing the low backguard (purchased
separately)
Installation methods will vary upon need. Before you begin
read these instructions carefully. Observe all local codes
and ordinances.
WARNING
Fingers or hands could get pinched when installing the
backguard. Severe injury could result.
▶
Use extreme caution and wear thick protective gloves to
avoid potential laceration to finger or hand while sliding
the backguard down onto the range.
WARNING
To reduce the risk of fire or injury to persons, check to
make sure all packaging has been removed from acces-
sory devices before use.
1.
Depending on model, remove the 2 or 3 stainless star
head screws in the front face of the included island trim.
Lift up to fully remove the island trim.
2.
Slide the support brackets of the low backguard be-
tween the two rangetop chassis back panels.
3. Secure the back with 8 x 1½'' (38 mm) screws.
4. Secure the front of the low backguard to the rangetop
with 2 or 3 x ½" (12.7 mm) screws.
9½"
(239)
9½"
(239)
9½"
(239)
9.2 Setting the appliance
1.
Attach the backguard, if applicable, before sliding the
appliance into the final installed position.
→ "Installing the low backguard (purchased sepa-
rately)", Page 16
2.
Lift and place the appliance in the countertop opening.
Be careful not to pinch the power cord or gas inlet. Care
should be used not to scratch the countertop.
3.
Make sure that the power cord is free and hanging
loose.
4.
The appliance must be level for proper performance.
5.
Replace the cooking grates, griddle plate, and burner
caps. Ensure that the burner caps are correctly seated
on the burner bases.
9.3 Burner cap placement
The burner caps must be properly placed for the cooktop
to function properly.
If the burner cap is not properly placed, one or more of the
following may occur:
¡ Burner flames are too high
¡ Flames shoot out of the burners
¡ Stainless steel discolorations
¡ Burners do not ignite
¡ Burner flames light unevenly
