76
| Solución de Problemas Napoleon.com | Serie Built-In
S
ol
uc
ión
d
e P
ro
bl
em
as
BIG44RB:
ELECTRODE /
ÉLECTRODE /
ELECTRODO
IGNITER / A'LLUMAGE / ENCENDEDOR
- 12VAC/DC, 1.5W, 120mA
FUSE / FUSIBLE/ FUSIBLE
- 2 A
TRANSFORMER / TRANSFORMATEUR / TRANSFORMADOR
- INPUT / ENTRÉE / ENTRADA:120VAC ~ 60Hz 28W
- OUTPUT / SORTIE / SALIDA: 12VAC ~ 2083mA, 25W
POWER / PUISSANCE / PODER
SWITCHES - KNOBS /
COMMUTATEURS - BOUTON /
INTERRUPTORES - PERILLAS
CONTROL BOX / BOÎTIER DE COMMANDE / CAJA DE CONTROL
- OUTPUT / SORTIE / SALIDA: 12VDC, 24W
SWITCH - IGNITION /
COMMUTATEUR - ALLUMAGE /
INTERRUPTOR - ENCENDIDO
- 12VDC, 0.3~0.8W, 22~66mA
SWITCH - LIGHTS /
COMMUTATEUR - LUMIÈRES /
INTERRUPTOR - LUCES
- 12VDC, 0.3~0.8W, 22~66mA
KNOB LIGHT / BOUTON LUMIÈRE / PERILLA DE LUZ
BIG44RB x8, BIG38RB x6, BIG32RB x5
- 12VDC, 0.3~8W, 34~95mA
YELLOW /
JAUNE /
AMARILLO
RED /
ROUGE /
ROJO
BLACK /
NOIR /
NEGRO
BLACK /
NOIR /
NEGRO
BIG32RB & BIG38RB:
GROUND /
SOL /
SWITCH - LIGHTS /
COMMUTATEUR - LUMIÈRES /
INTERRUPTOR - LUCES
- 12VDC, 0.3~0.8W, 22~66mA
BLACK /
NOIR /
NEGRO
KNOB LIGHT / BOUTON LUMIÈRE / PERILLA DE LUZ
BIB18 x2, BIB12 x2, BIB10 x1
- 12VDC, 0.3~8W, 34~95mA
BLACK /
NOIR /
NEGRO
RED /
ROUGE /
ROJO
BIG44RB, BIG38RB, BIG32RB
BIB18, BIB12, BIB10
SUELO

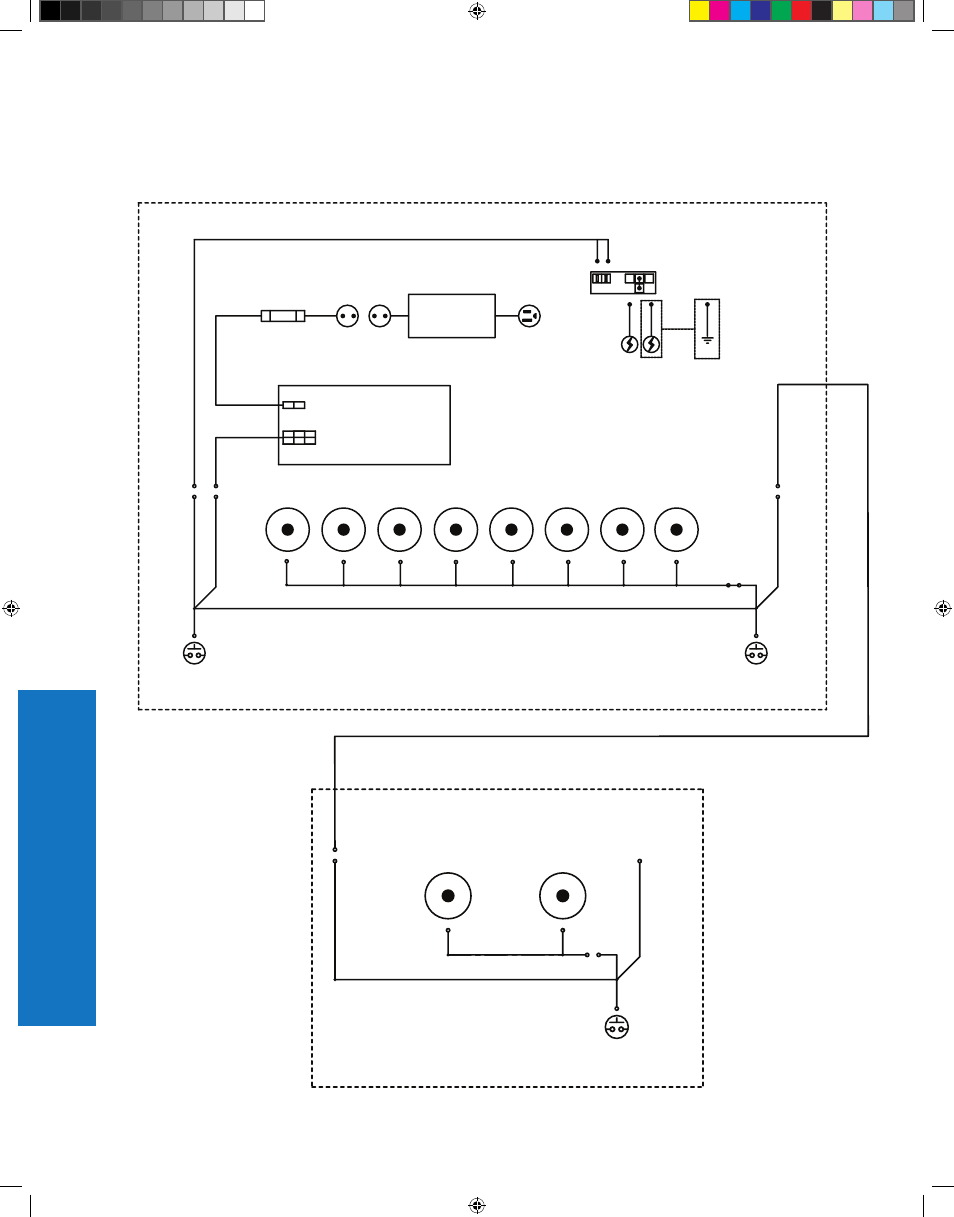

d
iagrama del
S
iStema
e
léctrico
