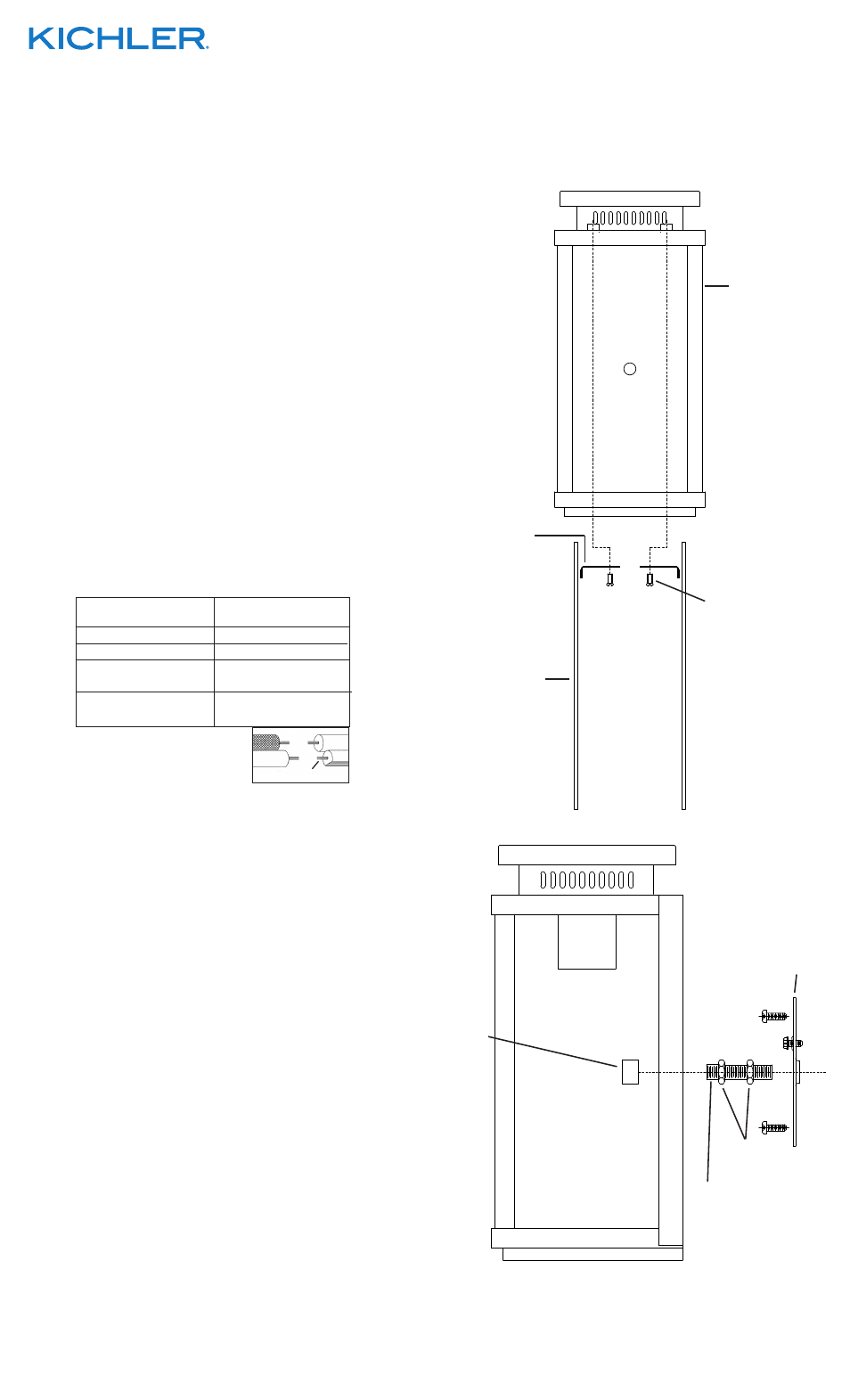

1) To install glass panels:

Insert glass panel inside cage. Place glass panel against

side frame of cage. Raise glass panel up slightly and lower

bottom edge of glass panel into bottom channel.

Place short side of bracket up against top of glass and long

side of bracket up against inside top of cage. Align hole in

long side of bracket with hole on top of inside of cage.

Thread screw onto hole. Tighten screw making sure short

side of bracket remains flat against glass. (DO NOT over

tighten screw.)

2) TURN OFF POWER.

IMPORTANT: Before you start, NEVER attempt any work

without shutting off the electricity until the work is done.

a) Go to the main fuse, or circuit breaker, box in your

home. Place the main power switch in the “OFF”

position.

b) Unscrew the fuse(s), or switch “OFF” the circuit breaker

switch(s), that control the power to the fixture or room that

you are working on.

c) Place the wall switch in the “OFF” position. If the fixture

to be replaced has a switch or pull chain, place those in

the “OFF” position.

3) Thread hexnut onto threaded pipe so that 5 threads are

exposed below hexnut. From underside of mounting strap,

thread long end of threaded pipe into hole in mounting strap

until hexnut touches mounting strap. Tighten hexnut against

mounting strap.

4) Thread second hexnut onto other end of threaded pipe.

Tighten hexnut up against mounting strap.

5) Attach mounting strap to outlet box. (Screws not provided)
6) Make wire connections (connectors not provided.)

Reference chart below for correct connections and wire

accordingly.

7) Push fixture to wall, carefully passing threaded pipe through

hole in canopy.

8) Screw threaded cap onto threaded pipe. Tighten threaded

cap to secure fixture to wall.

INSTRUCTIONS FOR MOUNTING FIXTURE OUTDOORS AND/
OR IN WET LOCATIONS.
9) Mounting surface should be clean, dry, flat and 1/4” larger

that the canopy on all sides. Any gaps between the mounting

surface and canopy exceeding 3/16” should be corrected as

required.
10) With silicone caulking compound, caulk completely around

where back of canopy meets the wall surface to prevent

water from seeping into outlet box.

Connect Black or

Red Supply Wire to:

Connect

White Supply Wire to:

Black

White

*Parallel cord (round & smooth)

*Parallel cord (square & ridged)

Clear, Brown, Gold or Black

without tracer

Clear, Brown, Gold or Black

with tracer

Insulated wire (other than green)

with copper conductor

Insulated wire (other than green)

with silver conductor

*Note: When parallel wires (SPT I & SPT II)
are used. The neutral wire is square shaped
or ridged and the other wire will be round in
shape or smooth (see illus.)

Neutral Wire

Date Issued: 10/25/13

IS-49384-CB

INSTRUCTIONS

For Assembling and Installing Fixtures in Canada

Pour L’assemblage et L’installation Au Canada

MOUNTING STRAP

COLLLIER DE FIXATION

THREADED CAP

BOUCHON

FILETÉE

HEXNUT

ECROU

HEXAGONAL

THREADED PIPE

TUBE FILETÉ
