IMPORTANT SAFETY INSTRUCTIONS

LIGHTED BULB IS HOT!

WARNING: To reduce the risk of FIRE or INJURY TO PERSON:
• Turn off and allow to cool before replacing bulb.
• Bulb gets HOT QUICKLY! Contact switch only when turning off.
• DO NOT remain in light if skin feels warm. (Light is intense,
may cause “sunburn”)
• DO NOT look directly at lighted bulb.
• Keep materials away from bulb that may burn.
• Use ONLY with wattage specified or lower.
• DO NOT touch bulb at any time, use a soft cloth. Oil from skin
may damage bulb.
• DO NOT operate fixture with missing or damaged glass.

1) Assemble mounting screws to backpan using hexnut.
2) At the center of the backpan are knockout slots. Remove
the set that matches your outlet box.
3) Secure the backpan to the outlet box.
4) TURN OFF POWER.
IMPORTANT: Before you start, NEVER attempt any work
without shutting off the electricity until the work is done.
a) Go to the main fuse, or circuit breaker, box in your

home. Place the main power switch in the “OFF”

position.

b) Unscrew the fuse(s), or switch “OFF” the circuit breaker

switch(s), that control the power to the fixture or room

that you are working on.

c) Place the wall switch in the “OFF” position. If the fixture

to be replaced has a switch or pull chain, place those in

the “OFF” position.

5) Connect fixture ground wire to outlet box ground wire with
wire connector. Never connect ground wire to black or white
power supply wire.
6) Make wire connections (connectors not provided). Reference
chart below for correct connections and wire accordingly.

7) Carefully push wire connections back into outlet box making
sure all connections remain secure.
8) Slip faceplate over mounting screws and backpan.
NOTE: Be certain wires do not get pinched between

backpan and faceplate.
9) Thread one screw into hole on each side of faceplate.
Tighten screws to secure fixture in place.
10) Raise glass up to fixture. Pass top of glass through hole in

bottom of fixture body. Pass hole in glass over socket.

11) Slip spacer over socket.
12) Attach socket ring to socket ring tool.
13) Raise socket ring tool with socket ring attached up to fixture.

Pass socket ring tool with socket ring attached through hole in

glass. Thread socket ring onto socket. Tighten socket ring to

secure glass in place. (DO NOT over tighten.)

14) Insert recommended bulb. CAUTION: DO NOT touch bulb
with bare hands. If this happens, clean bulb with denatured
alcohol and a lint free cloth.
15) Slip glass sleeve over bulb. Carefully thread glass sleeve
onto socket. (DO NOT over tighten.)

Connect Black or

Red Supply Wire to:

Connect

White Supply Wire to:

Black

White

*Parallel cord (round & smooth)

*Parallel cord (square & ridged)

Clear, Brown, Gold or Black

without tracer

Clear, Brown, Gold or Black

with tracer

Insulated wire (other than green)

with copper conductor

Insulated wire (other than green)

with silver conductor

*Note: When parallel wires (SPT I & SPT II)
are used. The neutral wire is square shaped
or ridged and the other wire will be round in
shape or smooth (see illus.)

Neutral Wire

Date Issued: 9/19/14

IS-43689-CB

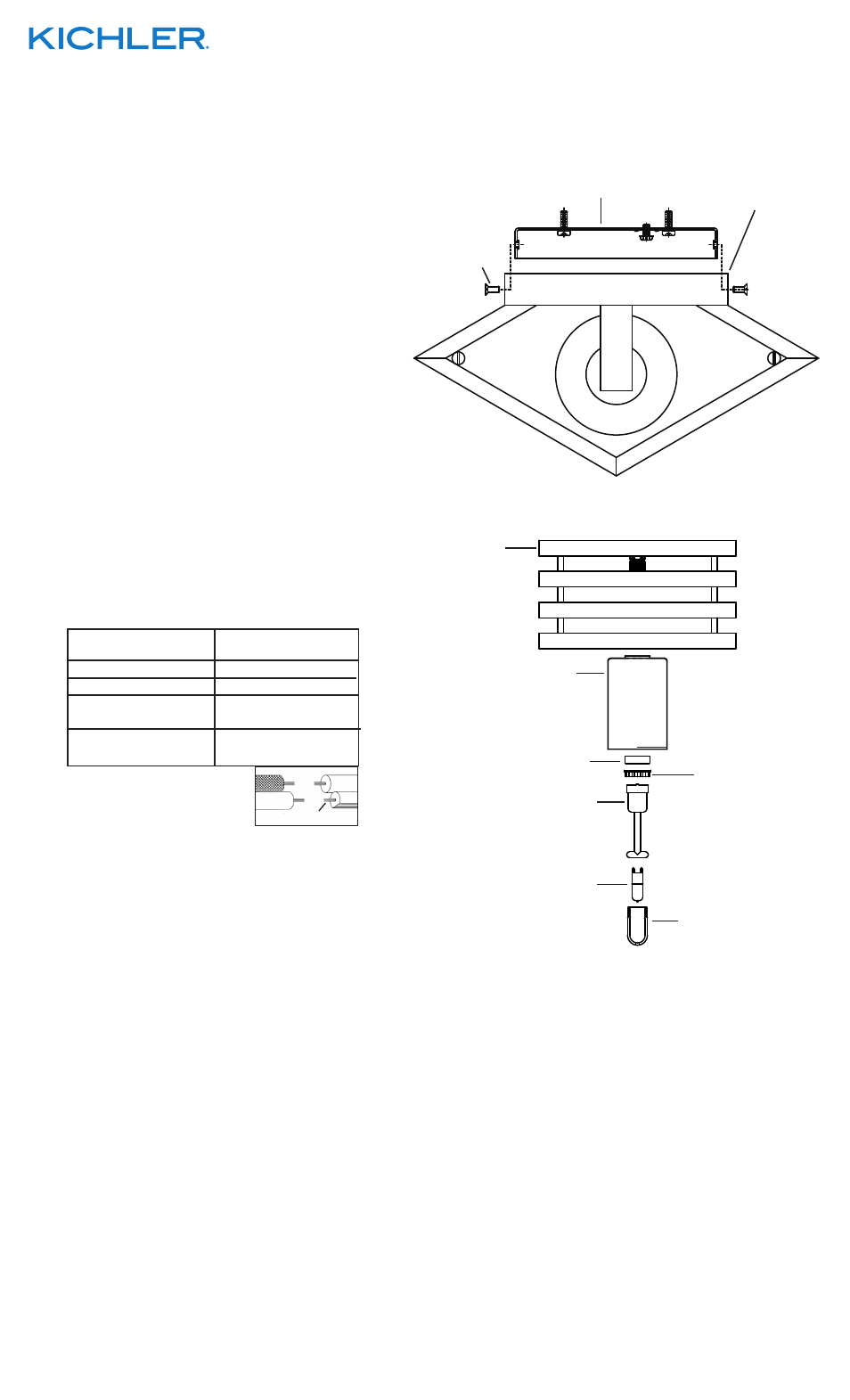

FACEPLATE

PLAQUE FRONTALE

INSTRUCTIONS

For Assembling and Installing Fixtures in Canada

Pour L’assemblage et L’installation Au Canada

BACKPAN

PANNEAU ARRIÈRE

BULB

L’AMPOULE

GLASS SLEEVE

MANCHON DE

VERRE

SOCKET RING

ANNEAU DE LA DOUILLE

SPACER

ENTRETOISE

SCREW

VIS

GLASS

VERRE

FIXTURE

LUMINAIRE

SEE OTHER SIDE FOR CANADIAN FRENCH TRANS-

LATIONS.

VOIR L’AUTRE CÔTÉ POUR LES CANADIENS TRA-

DUCTIONS EN FRANÇAIS.
