9
INSTRUCTION
CONTROLS
8
This manual explains the features available on the model of 18.5 inch LED TV.
■

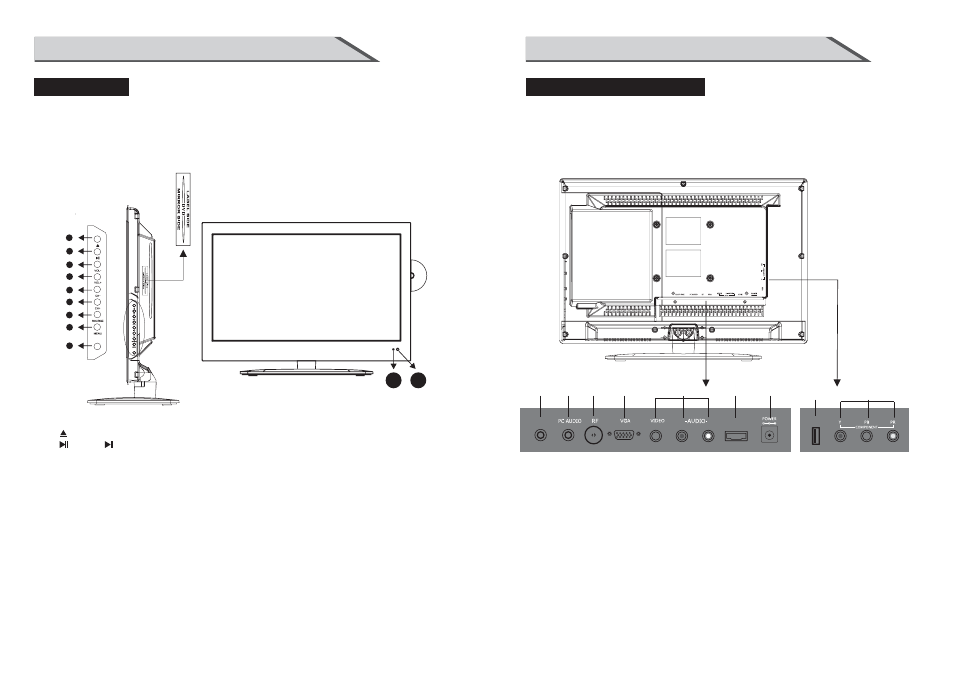

This is a simplified representation of a front panel. Here shown may be somewhat
different from your TV.
Right Side Panel Control
INSTRUCTION
Rear Connection Panel
CONNECTION OPTION
This is the back panel LED TV
■ This is a simplified representation of a back panel.
Here shown may be somewhat different from your TV.
(1): ( ) In DVD source Load /Eject DVD disk.
(2): ( ) Press to play or pause the disc under DVD mode.
(3): (VOL-) Press Volume- to decrease the volume.
(4): (VOL+) Press Volume+ to increase the volume.
(5): (CH-) Press the button to down the channel.
(6): (CH+) Press the button to up the channel.
(7): (SOURCE) Press this button to select AV source or TV source.
(8): (MENU) Press this button to display the OSD menu.
When the OSD menu is on, press this button to exit the menu.
(9): (POWER) Press this button to standby mode.
(10): Indicator.
(11): Remote control sensor window.
(07) (POWER) DC IN : Connect the power cord with DC12V to this input.
(08) USB:Input USB device input
(06) HDMI Input: Connect HDMI signal.
(09) YPBPR(Y:GREEN, PB:BLUE, PR:RED): Connect the component image output
of your AV devices here. Then Connect audio output of your AV devices to R and L.
(05)AV Video Input:Connect composite video output of your AV device and Connect the
audio output of your AV devices to R and L.
(04) PC VGA Input: Connect PC VGA signal output.
(03) RF: Antenna Input (75 ohm).
(02) PC AUDIO Input: Connect PC audio input.
(01) EARPHONE output: Connect to headphone output.
2
1
3
6
4
7
9
8
5
11 10
POWER
POWER
2 3 4 1
EARPHONE
5
HDMI L R
6 7
USB
9 8
