Power Cord Connection

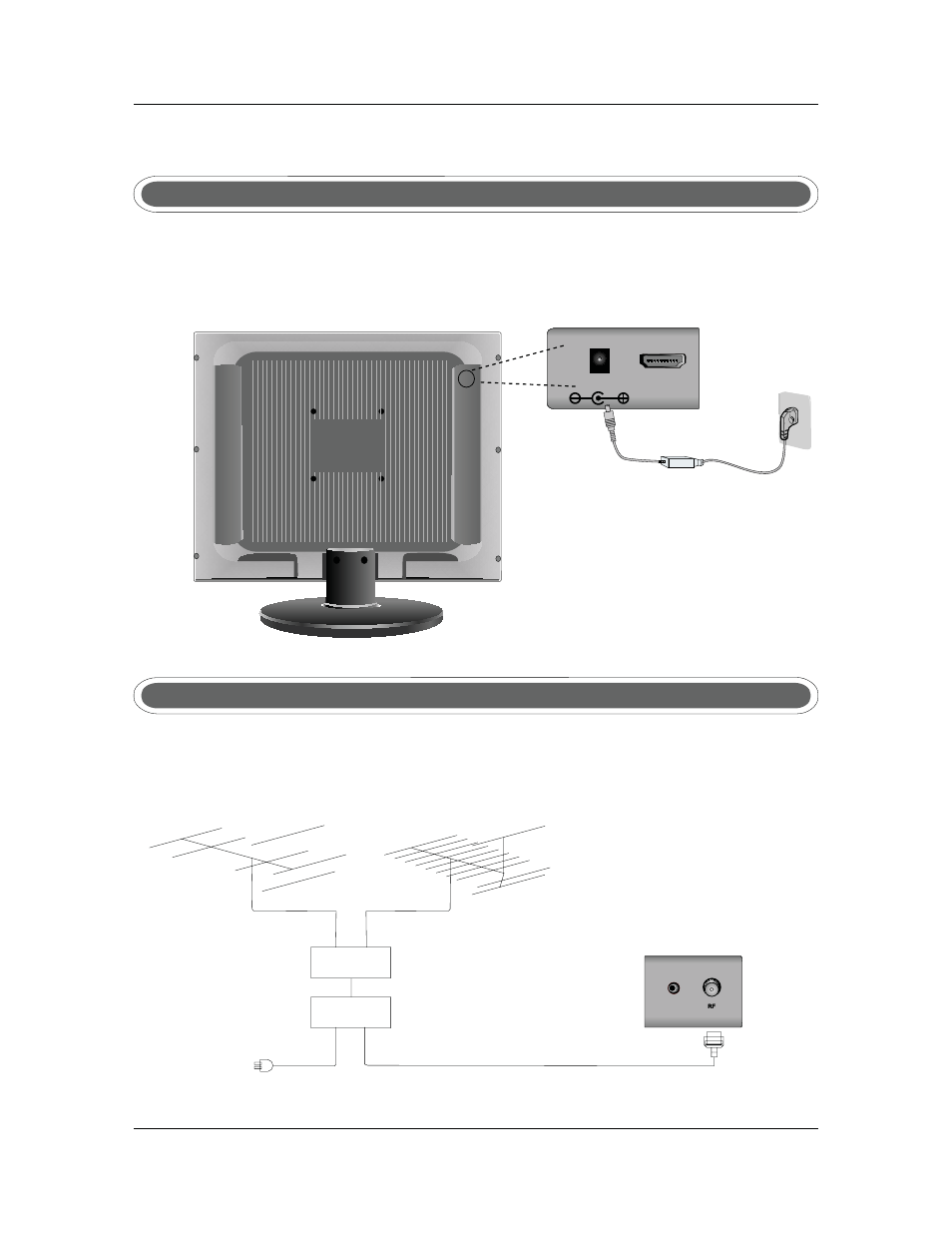

5 TV INSTALLTION DRAWINGS .
To ensure good picture and sound, TV antenna system needs to be installed. The antenna system as
Shown can be sourced from TV equipment shops, which will provide service for correct installation
and connection. After installation, insert the 75-ohm antenna plug into the antenna jack as shown.
Antennas Connection
75 OHM
ANTENNA
PLUG
POWER PLUG OF
ANTENNA
AMPLIFIER
OUTDOOR
ANTENNA
AMPLIFIER
VHF ANTENNA UHF ANTENNA
INDOOR
ANTENNA
AMPLIFIER
PHONE
- Connect the power cord correctly as shown.
- Press the POWER switch of your LCD TV to switch on the LCD TV. The power indicator
on the front panel lights up in Green.
HDMI DC DC 12V 12V
