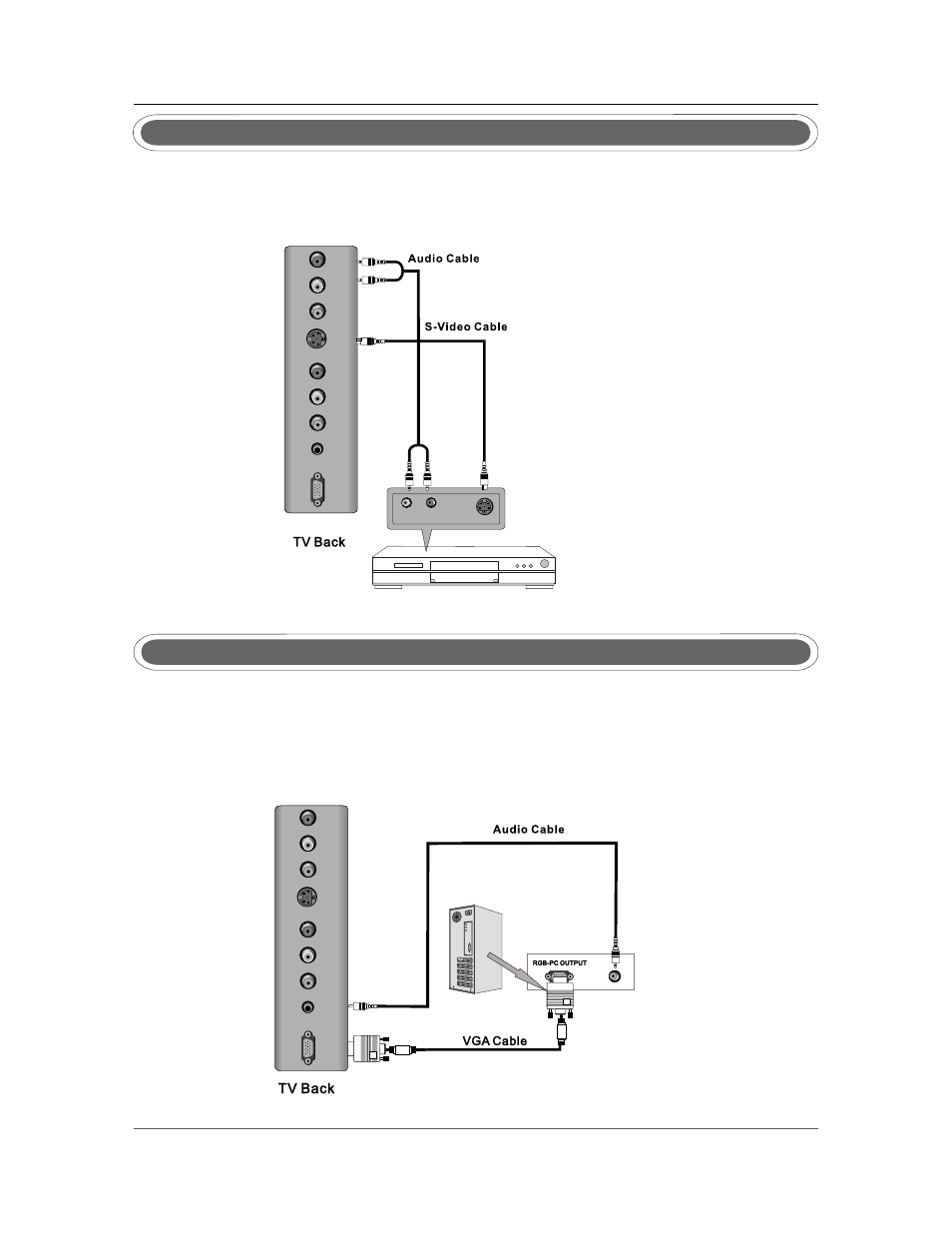

VGA(PC) Connection
Connect the RGB output of the PC to the jack on the set. Connect the AUDIO output of the VGA(PC)
PC to the PC AUDIO jack on the set .Select the RGB input source with using SOURCE button on
the remote control.
S-Video Connection
Connect the S-VIDEO output of the DVD or VCR to the S-VIDEO input on the set. The picture quality
is improved compared to connecting a regular VCR to the video input.
Connect the Audio output of the DVD or VCR to the Audio input jacks on the set using the RCA cable.
Select S-VIDEO input source with using the SOURCE button on the remote control.
L R S-VIDEO
DVD or VCR Back DVD or VCR Back
DVD or VCR DVD or VCR
