VOL- VOL- CH+ CH+ MENU MENU SOURCE SOURCE POWER POWER CH- CH- VOL+ VOL+

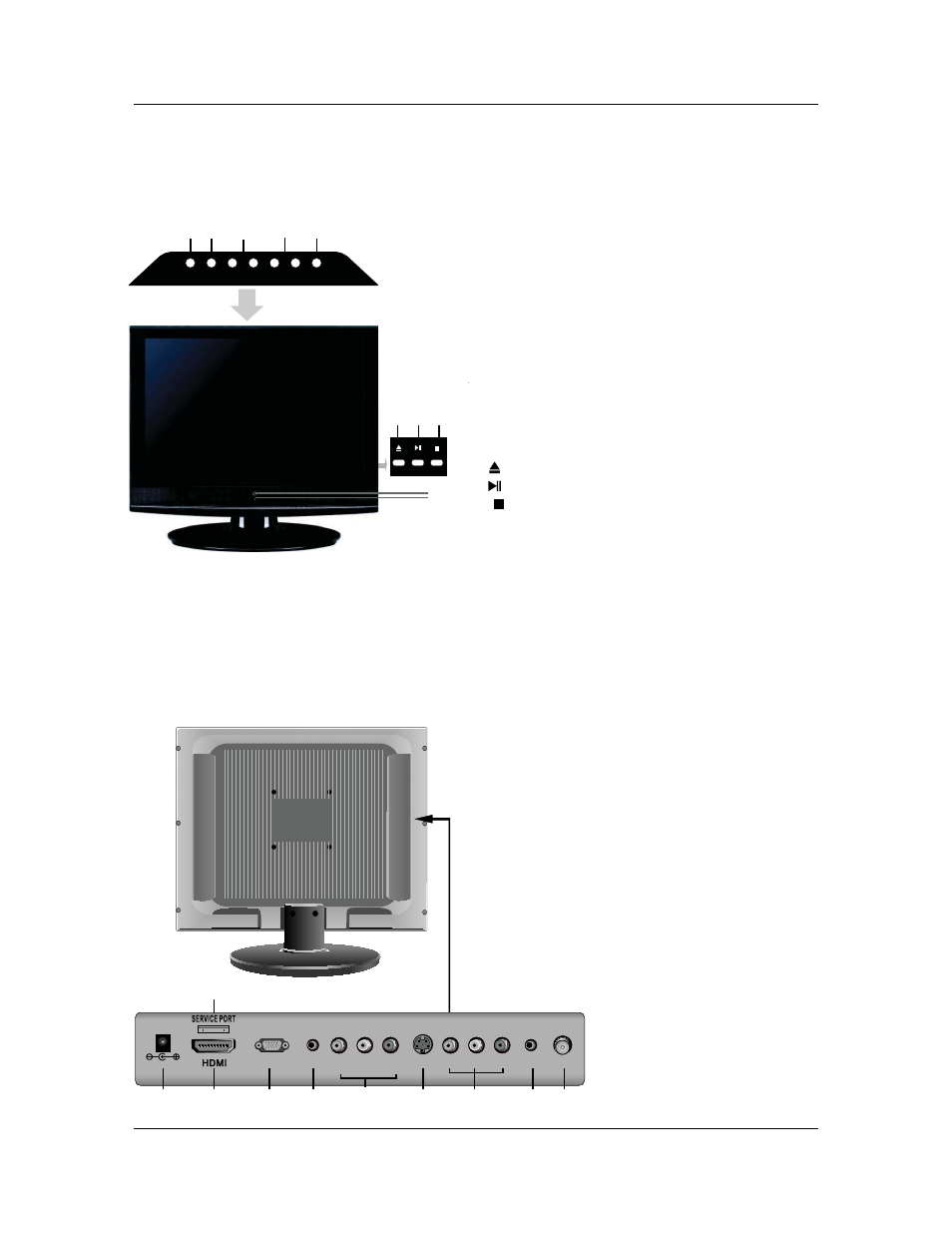

4 FRONT , BACK , CONNECTIONS OF LCD TV .
Back View and Control Connections
1.Press“POWER” button to turn standby mode
on or off.
2.Press“CH+”or “CH-”to scan through channels.
Front View
4.Press “MENU”to bring up the main menu on
the screen.
5.Press“SOURCE”to select the input source.
3.Press“VOL+”or “VOL-”to increase or decrease
the sound level.
3. VGA(PC): Connect the PC-RGB output jack of PC.
7. VIDEO/AUDIO: Connect the Video/Audio output jack
of DVD or VCR.
6. S-VIDEO: Connect the S-VIDEO output jack of
DVD or VCR.
9. RF: Connect the antenna.
2. HDMI: Connect the HDMI output jack of DVD.
5. YPbPr(Component): Connect the YPbPr output jack of
DVD or VCR.
8. PHONE: Connect the headphone.
4. PC AUDIO : Connect the Audio out put jack of
PC.
7.REMOTE SENSOR: infrared sensor for the rem
Control.
6.POWER INDICATOR:show red in standby mode,
show green when your TV is switched on.
6
2 1
7
5 3 4
6
RF RF VGA(PC) VGA(PC) S-VIDEO S-VIDEO L R IDE V O IDE V O PHONE PC
AUDIO
Pb Pb Pr Y
DC DC 12V 12V
1. DC IN: DC input socket.
1 2 3 4 5 6 7 8 9
10. Service port: (For factory uses only.)
10
8. OPEN/CLOSE in DVD mode.
9. PLAY/PAUSE in DVD mode.
10. STOP in DVD mode.
10 8 9
(Component) (Component)
