COMPONENT IDENTIFICATION
Use the information on the following pages to identify and locate the major components of the VICTORY
HAMMER motorcycle, including the vehicle and engine identification numbers, model number and ignition key
number.

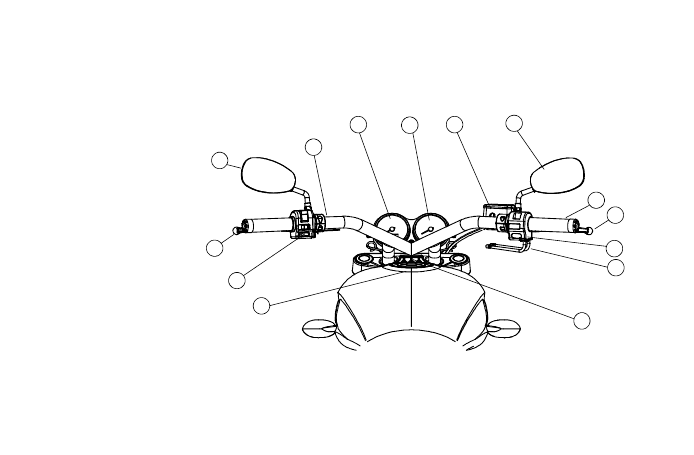

HANDLEBAR AREA
1. Speedometer
2. Tachometer
3. Front Brake Fluid Reservoir
4. Right Mirror
5. Throttle Control Grip
6. Front Brake Lever
7. Right Handlebar Switch
8. Throttle Cables
9. Indicator Lamps
10. Fuel Cap
11. Left Handlebar Switch
12. Clutch Lever
13. Left Mirror
14. Clutch Cable
