128
MAINTENANCE

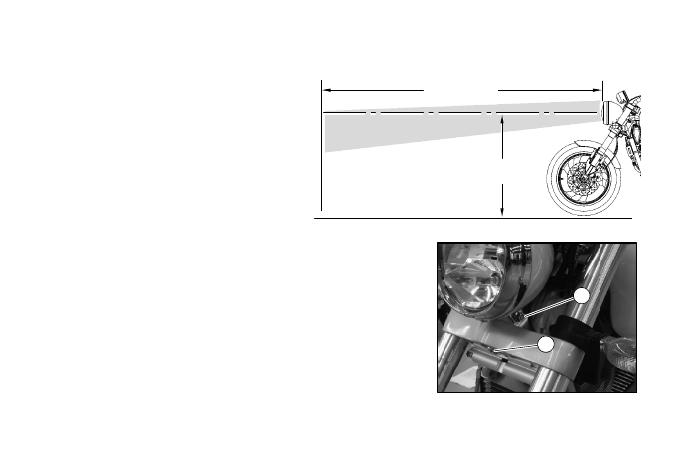

Headlamp Adjustment
The headlamp should shine straight ahead of the
motorcycle. The top of headlamp high beam should
be just below the center of the lamp at a distance of
25 feet (7.62 m).
1. Check and adjust the tire pressure (page 116)
2. Verify rear suspension preload measurement is
132mm (5--3/16 inch) (see page 94) before
adjusting headlight.
3. Straddle the motorcycle in an upright position
and sit in the operator’s seat.
4. Set the ignition switch to the ON position and
set the headlamp to High beam. Check the
headlamp for correct aim.
5. To adjust the headlamp vertically, loosen pivot nut (1)
while holding bolt. Aim headlight and hold in position
while tightening nut.
Torque: 35 ft-lbs (47.5 Nm)
6. To adjust the lamp horizontally, loosen the nut (2), aim
headlight and hold in position while tightening nut.
Torque: 28 ft-lbs (38 Nm)
7. Verify proper headlamp adjustment and re-adjust if
necessary.
25 feet (7.62 m)
Center of Headlamp
1
2
