Electrical Requirements
If codes permit and a separate ground wire is used, it is
recommended that a qualified electrical installer determine that
the ground path and wire gauge are in accordance with local
codes.
Check with a qualified electrical installer if you are not sure the
oven is properly grounded.
This oven must be connected to a grounded metal, permanent
wiring system.
Be sure that the electrical connection and wire size are adequate
and in conformance with the National Electrical Code, ANSI/
NFPA 70-latest edition or CSA Standards C22.1-94, Canadian
Electrical Code, Part 1 and C22.2 No. O-M91-latest edition, and
all local codes and ordinances.
A copy of the above code standards can be obtained from:
National Fire Protection Association
1 Batterymarch Park
Quincy, MA 02169-7471
CSA International
8501 East Pleasant Valley Road
Cleveland, OH 44131-5575
Electrical Connection
To properly install your oven, you must determine the type of
electrical connection you will be using and follow the instructions
provided for it here.
■ Oven must be connected to the proper electrical voltage,
amperage, and frequency as specified on the model/serial
number rating plate. See the following illustration.
■ Models rated from 7.3 to 9.6 kW at 240 volts (5.5 to 7.2 kW at
208 volts) require a separate 40-amp circuit. Models rated at
7.2 kW and below at 240 volts (5.4 kW and below at 208 volts)
require a separate 30-amp circuit.
■ A circuit breaker is recommended.
■ Connect directly to the fused disconnect (or circuit breaker
box) through flexible, armored or nonmetallic sheathed,
copper cable (with grounding wire). See “Make Electrical
Connection” section.
■ Flexible conduit from the oven should be connected directly
to the junction box.
■ Do not cut the conduit. The length of conduit provided is for
serviceability of the oven.
■ A UL listed or CSA approved conduit connector must be
provided.
■ If the house has aluminum wiring, follow the procedure
below:
1. Connect a section of solid copper wire to the ends of the
flexible conduit leads.
2. Connect the aluminum wiring to the added section of
copper wire using special connectors and/or tools
designed and UL listed for joining copper to aluminum.
Follow the electrical connector manufacturer's recommended
procedure. Aluminum/copper connection must conform with
local codes and industry accepted wiring practices.
For power requirements, refer to the following table.
*L1 includes both the microwave and the oven, and L2 includes
only the oven. Amperage values noted above are for information
purposes only: The units are rated in watts.

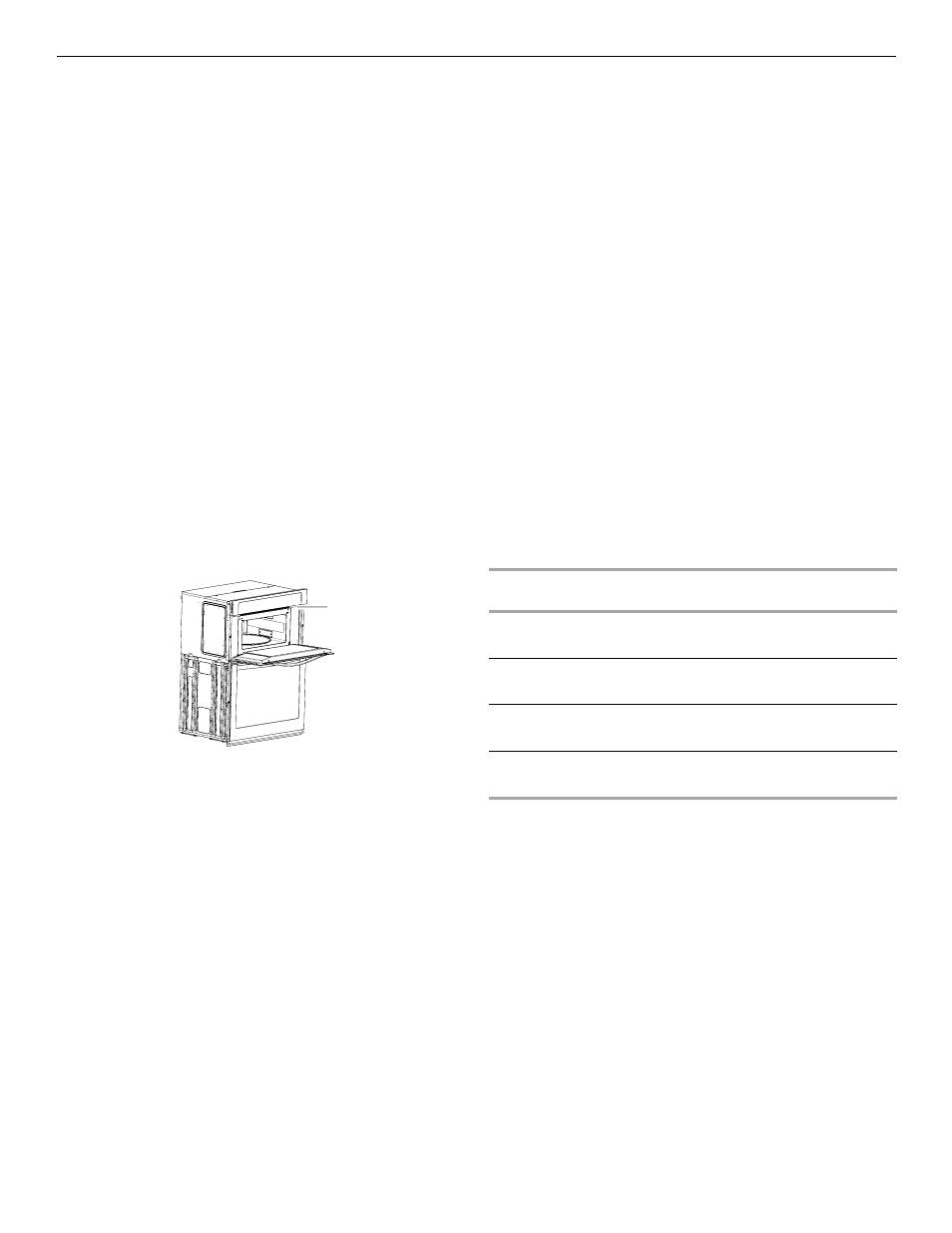

A. Model/serial number plate
A
Model Voltage Amperage
(L1)* Amperage
(L2)* Rating
(kW)
MMW9730 120/240
129/208
30
28
15
15
7.2
5.9
WOC54EC0,
WOC95EC0 120/240
120/208
30
28
15
15
7.2
5.9
WOC54EC7 120/240
120/208
30
28
15
15
7.2
5.9
KEMS309 120/240
120/208
33
31
15
15
8.0
6.6
