Page 3
3

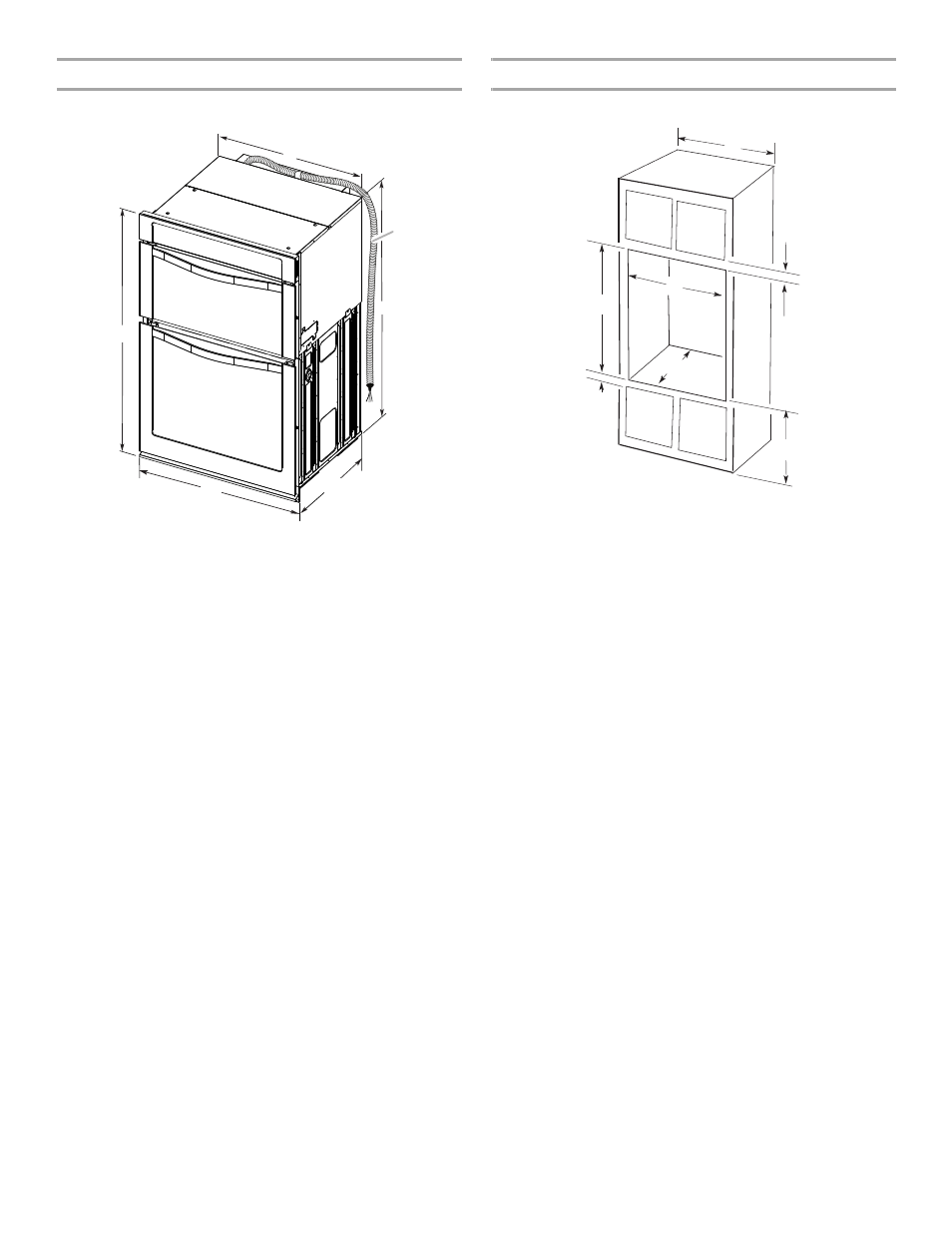

Product Dimensions
27" (68.6 cm) and 30" (76.2 cm) Ovens
Cabinet Dimensions
27" (68.6 cm) and 30" (76.2 cm) Ovens
*NOTE: The cutout height can be between 41" (104.1 cm) and
41½" (105.6 cm) for microwave/oven combination.
27" (68.6 cm) models
A.
42⁹⁄₁₆
" (108.0 cm) overall height
B. 25
⁷⁄₁₆
" (64.6 cm) recessed width
C. 41" (104.1 cm) recessed height
D. 23
¹⁄₄
" (59.1 cm) max. recessed
depth
E. 27" (68.6 cm) overall width
F. 48" (121.9 cm) Flexible conduit
length measured from the
conduit clamp located at the
rear of the oven. Do not remove
the conduit clamp.
30" (76.2 cm) models
A.
42⁹⁄₁₆
" (108.0 cm) overall height
B. 28
¹⁄₂
" (72.3 cm) recessed width
C. 41" (104.1 cm) recessed height
D. 23
¹⁄₄
" (59.1 cm) max. recessed
depth
E. 30" (76.2 cm) overall width
F. 48" (121.9 cm) Flexible conduit
length measured from the
conduit clamp located at the
rear of the oven. Do not remove
the conduit clamp.
B
A
C
D
E
F
27" (68.6 cm) models
A. 27" (68.6 cm) min. cabinet
width
B. 1" (2.5 cm) top of cutout to
bottom of upper cabinet door
C. 19
¹⁄₄
" (48.9 cm) bottom of
cutout to floor is
recommended.
4"-19
¹⁄₄
" (10.2-48.9 cm) bottom
of cutout to floor is acceptable.
D. 25
¹⁄₂
" (64.8 cm) cutout width
E. 1
¹⁄₂
" (3.8 cm) min. bottom of
cutout to top of cabinet door
F. 41
⁵⁄₁₆
" (105 cm)* recommended
cutout height
G. 24" (60.7 cm) cutout depth
30" (76.2 cm) models
A. 30" (76.2 cm) min. cabinet
width
B. 1" (2.5 cm) top of cutout to
bottom of upper cabinet door
C. 19
¹⁄₄
" (48.9 cm) bottom of
cutout to floor is
recommended.
4"-19
¹⁄₄
" (10.2-48.9 cm) bottom
of cutout to floor is acceptable.
D. 28
¹⁄₂
" (72.4 cm) cutout width
E. 1
¹⁄₂
" (3.8 cm) min. bottom of
cutout to top of cabinet door
F. 41
⁵⁄₁₆
" (105 cm)* recommended
cutout height
G. 24" (60.7 cm) cutout depth
F
E
A
D
G
B
C
